Settings Screen


To go to this screen, press the Settings button on the Main Screen.


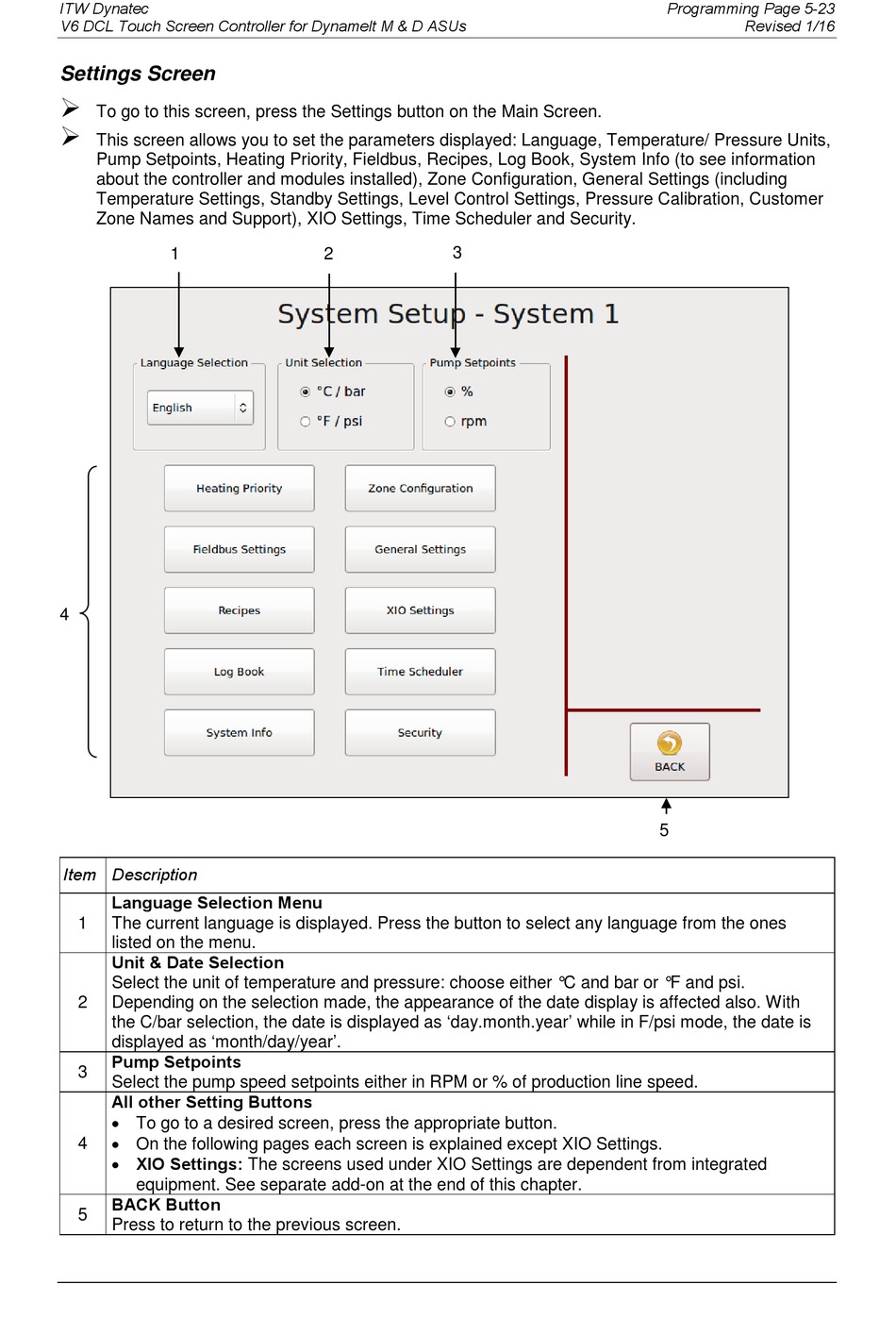

This screen allows you to set the parameters displayed: Language, Temperature/ Pressure Units,
Pump Setpoints, Heating Priority, Fieldbus, Recipes, Log Book, System Info (to see information
about the controller and modules installed), Zone Configuration, General Settings (including
Temperature Settings, Standby Settings, Level Control Settings, Pressure Calibration, Customer
Zone Names and Support), XIO Settings, Time Scheduler and Security.
1
4
Item Description
Language Selection Menu
1 The current language is displayed. Press the button to select any language from the ones
listed on the menu.
Unit & Date Selection
Select the unit of temperature and pressure: choose either °C and bar or °F and psi.
2 Depending on the selection made, the appearance of the date display is affected also. With
the C/bar selection, the date is displayed as 'day.month.year' while in F/psi mode, the date is
displayed as 'month/day/year'.
Pump Setpoints
3
Select the pump speed setpoints either in RPM or % of production line speed.
All other Setting Buttons
• To go to a desired screen, press the appropriate button.
• On the following pages each screen is explained except XIO Settings.
4
• XIO Settings: The screens used under XIO Settings are dependent from integrated
equipment. See separate add-on at the end of this chapter.
BACK Button
5
Press to return to the previous screen.
