V6 DCL Touch Screen Controller for Dynamelt M & D ASUs

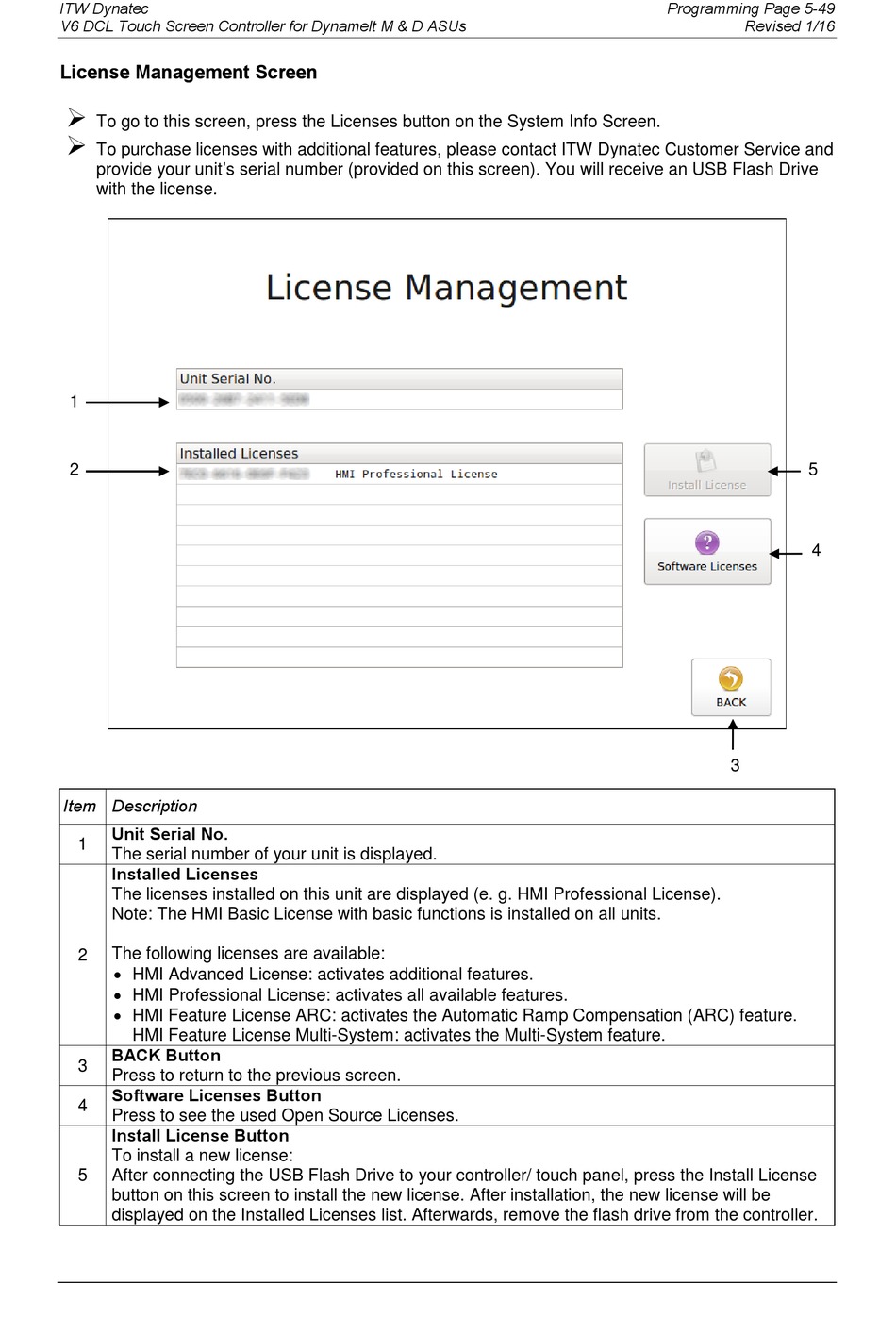

License Management Screen


To go to this screen, press the Licenses button on the System Info Screen.

To purchase licenses with additional features, please contact ITW Dynatec Customer Service and
provide your unit's serial number (provided on this screen). You will receive an USB Flash Drive
with the license.
1
2
Item Description
Unit Serial No.
1
The serial number of your unit is displayed.
Installed Licenses
The licenses installed on this unit are displayed (e. g. HMI Professional License).
Note: The HMI Basic License with basic functions is installed on all units.
The following licenses are available:
2
• HMI Advanced License: activates additional features.
• HMI Professional License: activates all available features.
• HMI Feature License ARC: activates the Automatic Ramp Compensation (ARC) feature.
HMI Feature License Multi-System: activates the Multi-System feature.
BACK Button
3
Press to return to the previous screen.
Software Licenses Button
4
Press to see the used Open Source Licenses.
Install License Button
To install a new license:
5 After connecting the USB Flash Drive to your controller/ touch panel, press the Install License
button on this screen to install the new license. After installation, the new license will be
displayed on the Installed Licenses list. Afterwards, remove the flash drive from the controller.
Programming Page 5-49
Revised 1/16
