Status Line

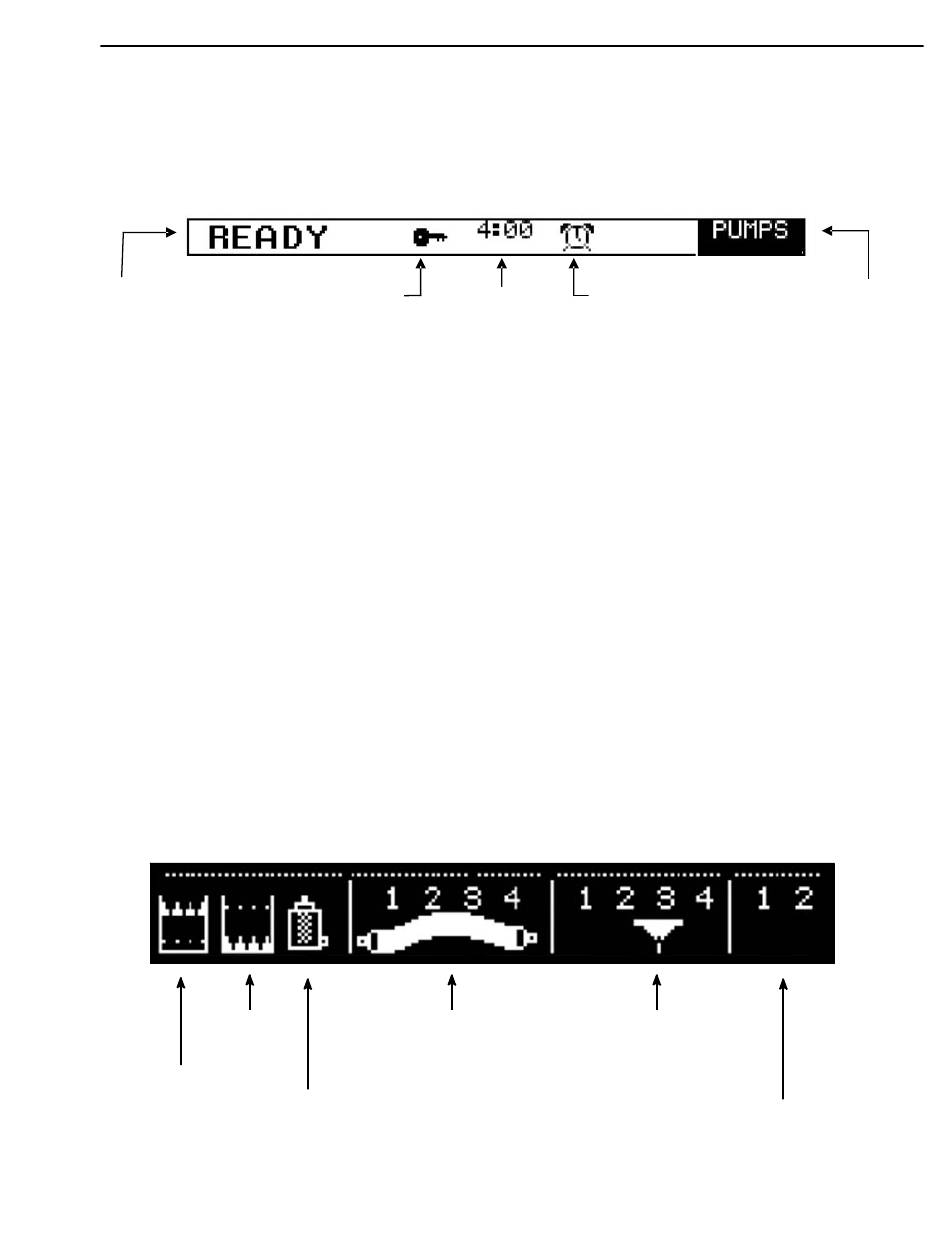

The status line is the top line of the display. It always lists the System Status, the Time‐of‐Day
and the Pump Status. It can also include the status of the Keypad (if locked) and the 7‐Day
Scheduler (if active). An example of an Overview Screen status line is seen below.
System Status
System Status
The status of the "system", ie. the ASU (melter) and its hoses and applicators, is listed as one of
the following:
HEAT‐UP
READY
ALARM
STANDBY
OVER‐TEMP
FAULT
HOPPER EMPTY
Pump Status
The status of the adhesive pump is indicated as follows:
PUMPS Pump has start signal and is actually running (seen on Overview Screen, upper right corner)
HOLD Pump is in Run mode (auto or manual) but a low temperature condition prevents it from
running (seen on Overview Screen, upper right corner)
STOP Pump is in Stop mode (seen on Pump Screen)

Temperature Zone Symbols

Each temperature zone is represented by a symbol on the display, as follows:
ASU's
Hopper
(up to 3)
ASU's
Premelt
(not used in the
(Drop‐in)
Grids
configuration)
(up to 6)
Keypad is locked
No faults present, zones are heating but haven't reached their setpoint window
No faults present and all zones are within the setpoint window
At least one zone is outside the setpoint window (over or under temp)
The system is in standby mode
The hopper is in over temperature condition, all power circuits are shut off
A temperature zone has a fault and all power circuits are shut off or the motor drive has faulted
Adhesive in the hopper is low and must be replenished
Hoses
(up to 12)
D Series
Time 7‐Day Scheduler is active
Applicator Heads
(up to 12)
LCD Programming Page 5-3
Revised 10/14
Pump Status
AUX-ZONE
Auxiliary Zones
(up to 12)
