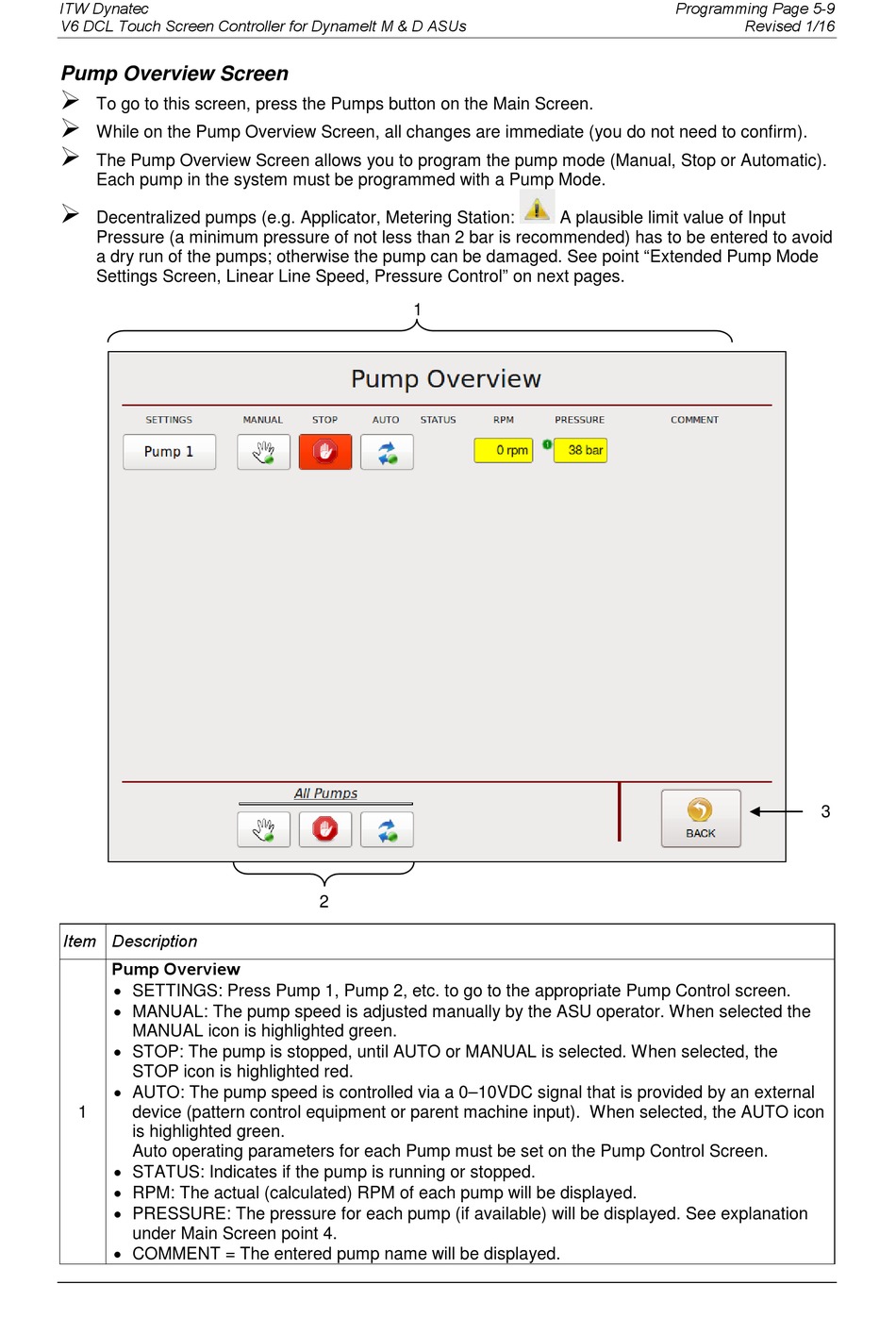

Pump Overview Screen


To go to this screen, press the Pumps button on the Main Screen.

While on the Pump Overview Screen, all changes are immediate (you do not need to confirm).

The Pump Overview Screen allows you to program the pump mode (Manual, Stop or Automatic).
Each pump in the system must be programmed with a Pump Mode.

Decentralized pumps (e.g. Applicator, Metering Station:
Pressure (a minimum pressure of not less than 2 bar is recommended) has to be entered to avoid
a dry run of the pumps; otherwise the pump can be damaged. See point "Extended Pump Mode
Settings Screen, Linear Line Speed, Pressure Control" on next pages.
Item Description
Pump Overview
• SETTINGS: Press Pump 1, Pump 2, etc. to go to the appropriate Pump Control screen.
• MANUAL: The pump speed is adjusted manually by the ASU operator. When selected the
MANUAL icon is highlighted green.
• STOP: The pump is stopped, until AUTO or MANUAL is selected. When selected, the
STOP icon is highlighted red.
• AUTO: The pump speed is controlled via a 0–10VDC signal that is provided by an external
1 device (pattern control equipment or parent machine input). When selected, the AUTO icon
is highlighted green.
Auto operating parameters for each Pump must be set on the Pump Control Screen.
• STATUS: Indicates if the pump is running or stopped.
• RPM: The actual (calculated) RPM of each pump will be displayed.
• PRESSURE: The pressure for each pump (if available) will be displayed. See explanation
under Main Screen point 4.
• COMMENT = The entered pump name will be displayed.
1
2
Programming Page 5-9
