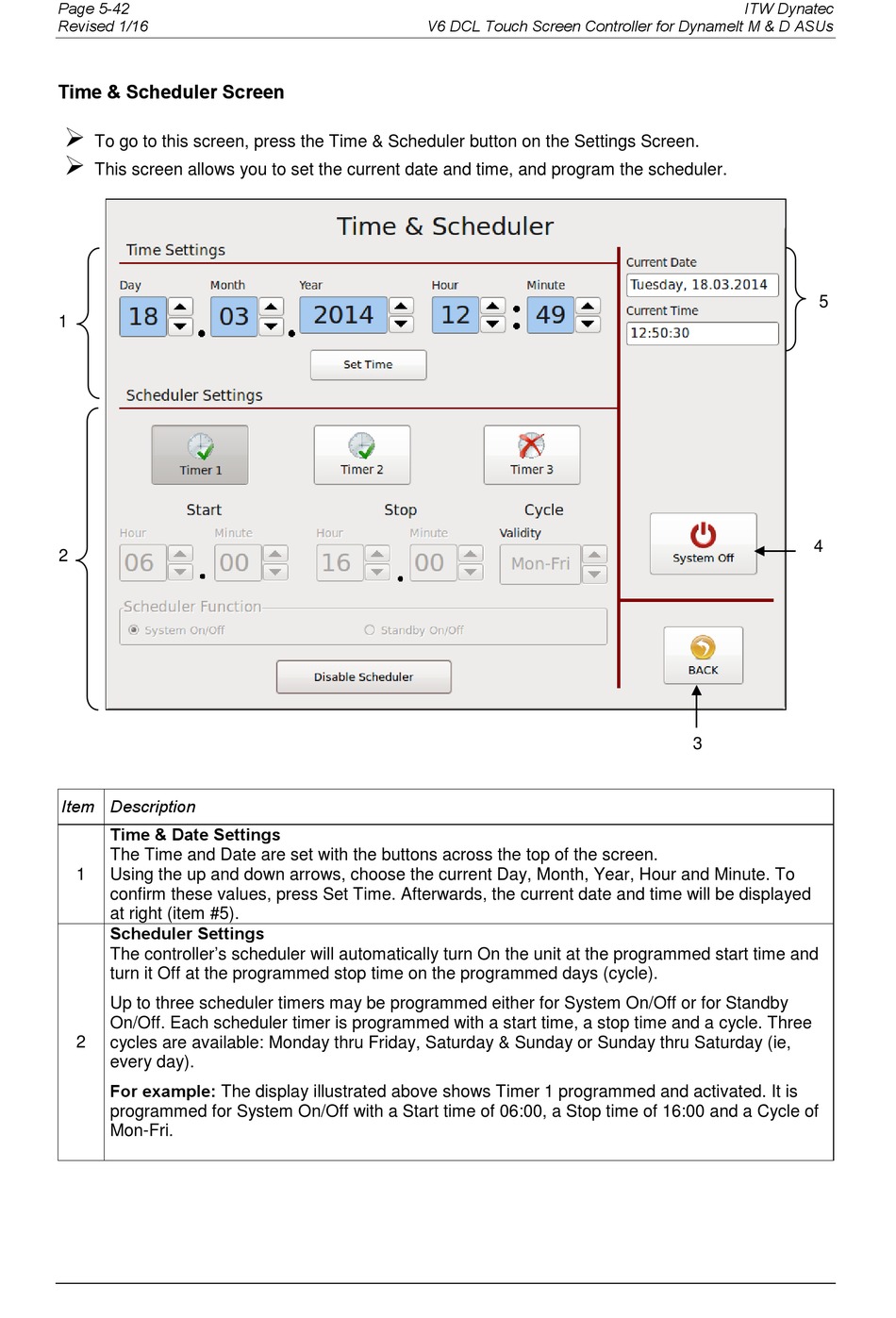

Time & Scheduler Screen
To go to this screen, press the Time & Scheduler button on the Settings Screen.
This screen allows you to set the current date and time, and program the scheduler.
1
2
Item Description
Time & Date Settings
The Time and Date are set with the buttons across the top of the screen.
1
Using the up and down arrows, choose the current Day, Month, Year, Hour and Minute. To
confirm these values, press Set Time. Afterwards, the current date and time will be displayed
at right (item #5).
Scheduler Settings
The controller's scheduler will automatically turn On the unit at the programmed start time and
turn it Off at the programmed stop time on the programmed days (cycle).
Up to three scheduler timers may be programmed either for System On/Off or for Standby
On/Off. Each scheduler timer is programmed with a start time, a stop time and a cycle. Three
2
cycles are available: Monday thru Friday, Saturday & Sunday or Sunday thru Saturday (ie,
every day).
For example: The display illustrated above shows Timer 1 programmed and activated. It is
programmed for System On/Off with a Start time of 06:00, a Stop time of 16:00 and a Cycle of
Mon-Fri.
