V6 DCL Touch Screen Controller for Dynamelt M & D ASUs

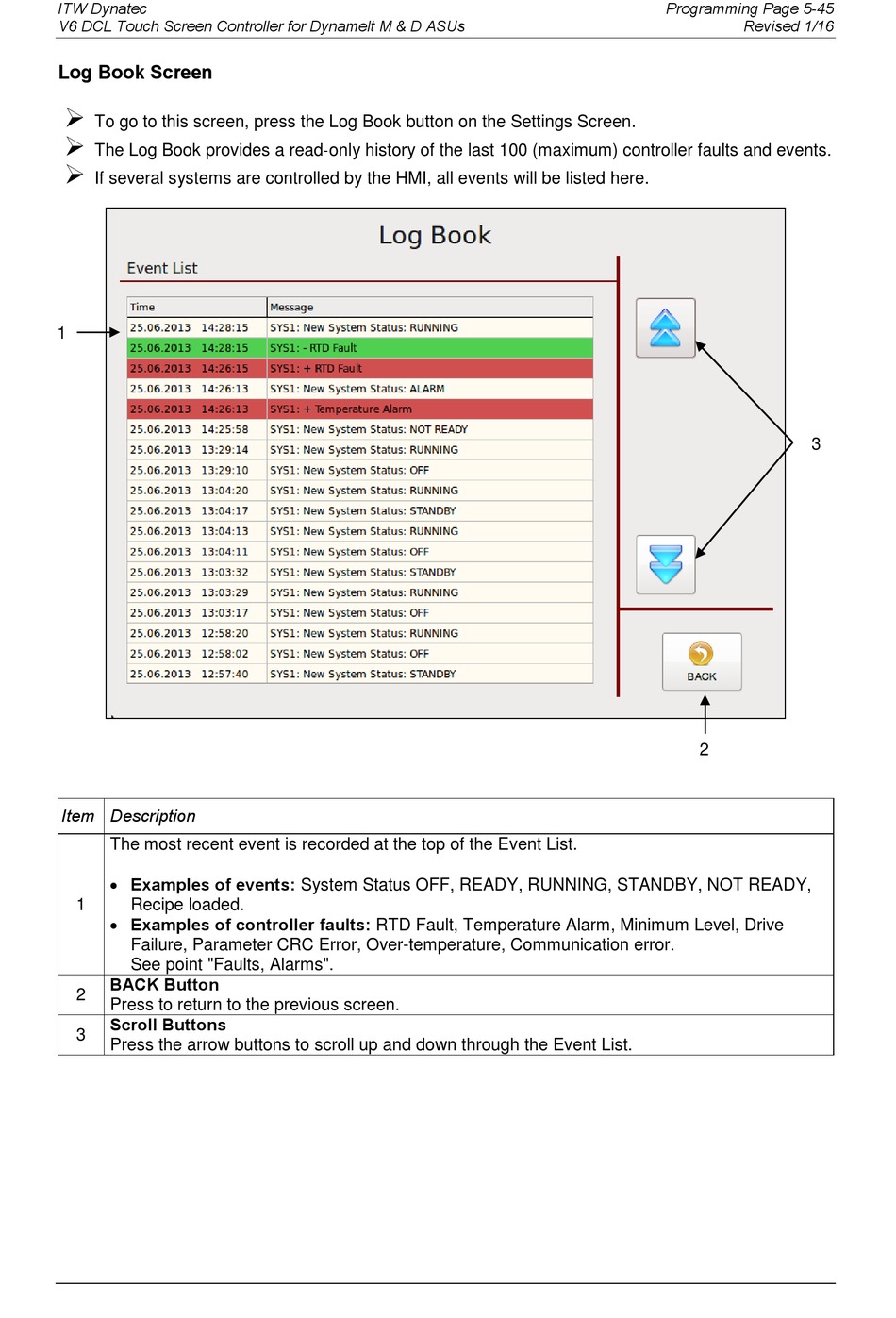

Log Book Screen

To go to this screen, press the Log Book button on the Settings Screen.
The Log Book provides a read‐only history of the last 100 (maximum) controller faults and events.
If several systems are controlled by the HMI, all events will be listed here.
1
Item Description
The most recent event is recorded at the top of the Event List.
• Examples of events: System Status OFF, READY, RUNNING, STANDBY, NOT READY,
1
Recipe loaded.
• Examples of controller faults: RTD Fault, Temperature Alarm, Minimum Level, Drive
Failure, Parameter CRC Error, Over-temperature, Communication error.
See point "Faults, Alarms".
BACK Button
2
Press to return to the previous screen.
Scroll Buttons
3
Press the arrow buttons to scroll up and down through the Event List.
Programming Page 5-45
