118521
8
C
AUX RECEPTACLES
AWG16
AWG12
AWG10
-XE
-XP
AWG16
AWG10
HOSE & HEAD
MOTOR CABLES
NOTE:
IF MORE THAN ONE WIRE IS CONNECTED TO ONE TERMINAL OF THE
GROUND BAR, THOSE WIRES HAVE TO BE CRIMPED TOGETHER IN ONE
APPROPRIATE FERRULE.
D15/25/45 V6
ALL GROUND WIRE HAVE TO BE YELLOW/GREEN.

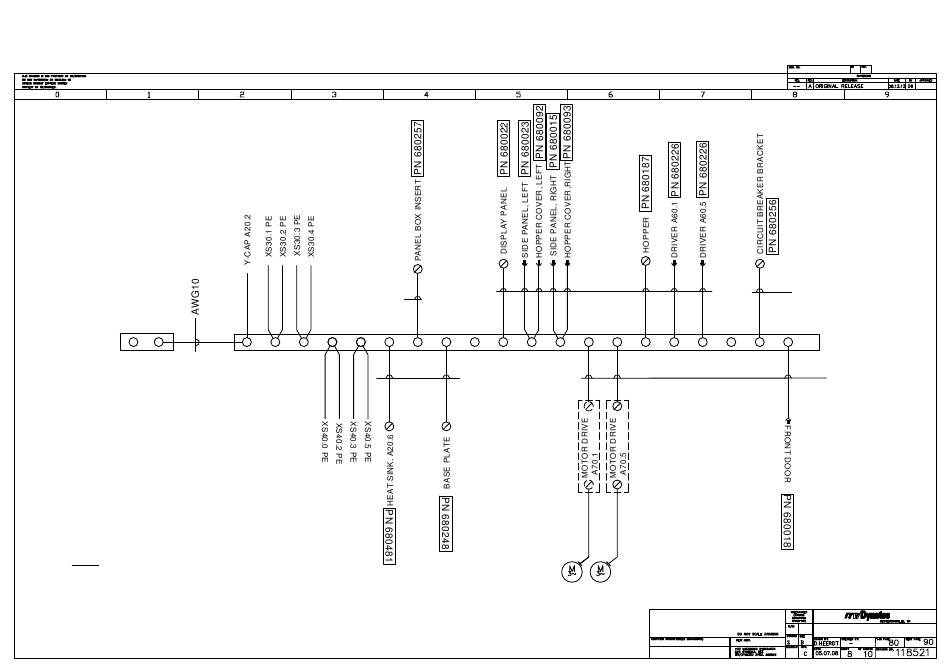

D15/25/45 , GROUNDING SCHE.
ALL GROUND TERMINALS HAVE TO BE APPROPRIATELY LABELED.
SCHEM, D15/25/45
