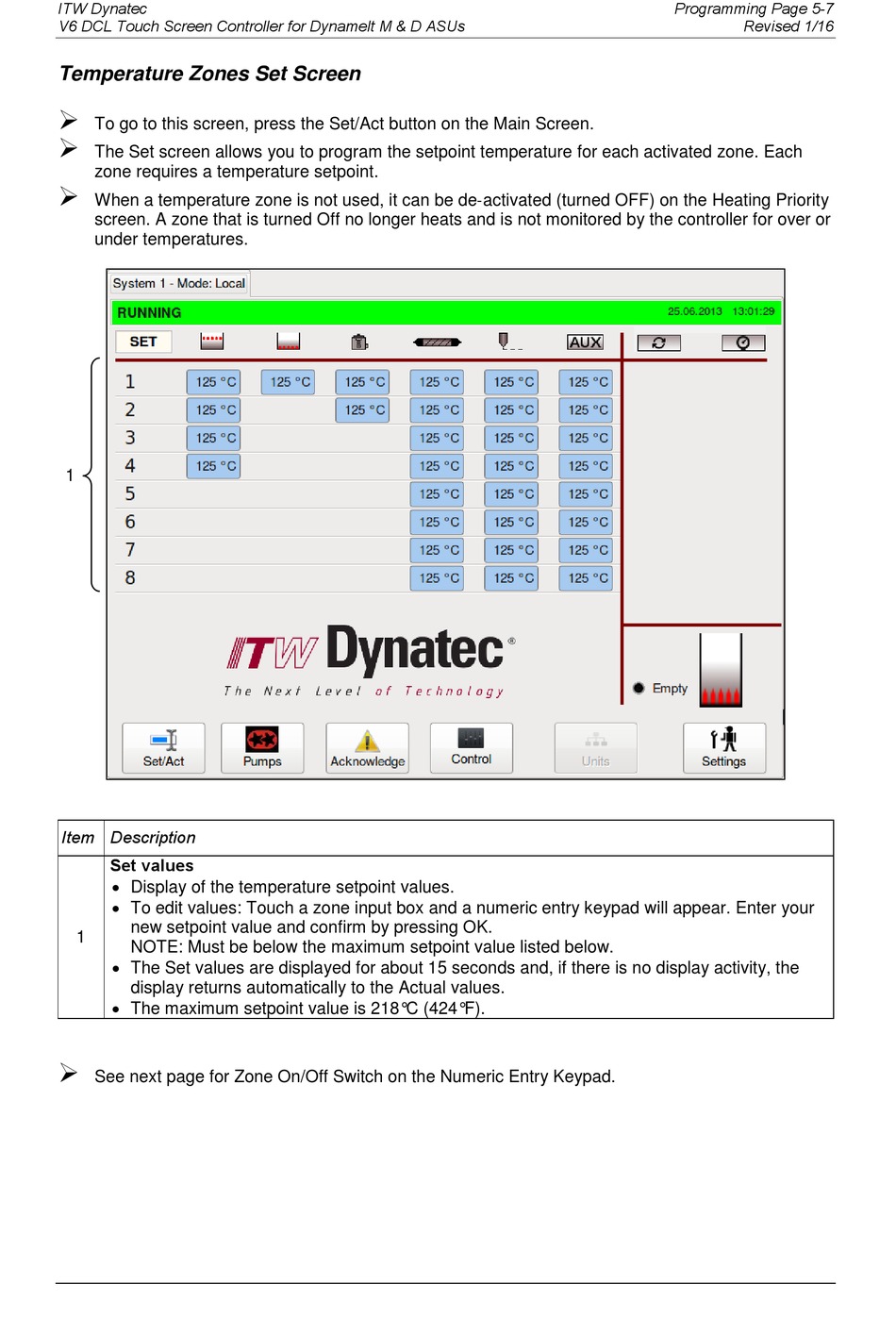

Temperature Zones Set Screen


To go to this screen, press the Set/Act button on the Main Screen.

The Set screen allows you to program the setpoint temperature for each activated zone. Each
zone requires a temperature setpoint.

When a temperature zone is not used, it can be de‐activated (turned OFF) on the Heating Priority
screen. A zone that is turned Off no longer heats and is not monitored by the controller for over or
under temperatures.
1
Item Description
Set values
• Display of the temperature setpoint values.
• To edit values: Touch a zone input box and a numeric entry keypad will appear. Enter your
new setpoint value and confirm by pressing OK.
1
NOTE: Must be below the maximum setpoint value listed below.
• The Set values are displayed for about 15 seconds and, if there is no display activity, the
display returns automatically to the Actual values.
• The maximum setpoint value is 218°C (424°F).

See next page for Zone On/Off Switch on the Numeric Entry Keypad.
