Main Screen - ITW Dynatec DYNAMELT D15 Series Technical Documentation Manual

Adhesive supply unit
Table of Contents

Advertisement

ITW Dynatec
V6 DCL Touch Screen Controller for Dynamelt M & D ASUs

Main Screen

The Main Screen is displayed automatically when the unit is switched ON.
The Main Screen provides a comprehensive overview of the status of each of the temperature
zones and the system as a whole. It gives the status and speed of the pump, along with any
adhesive pressures and level status.

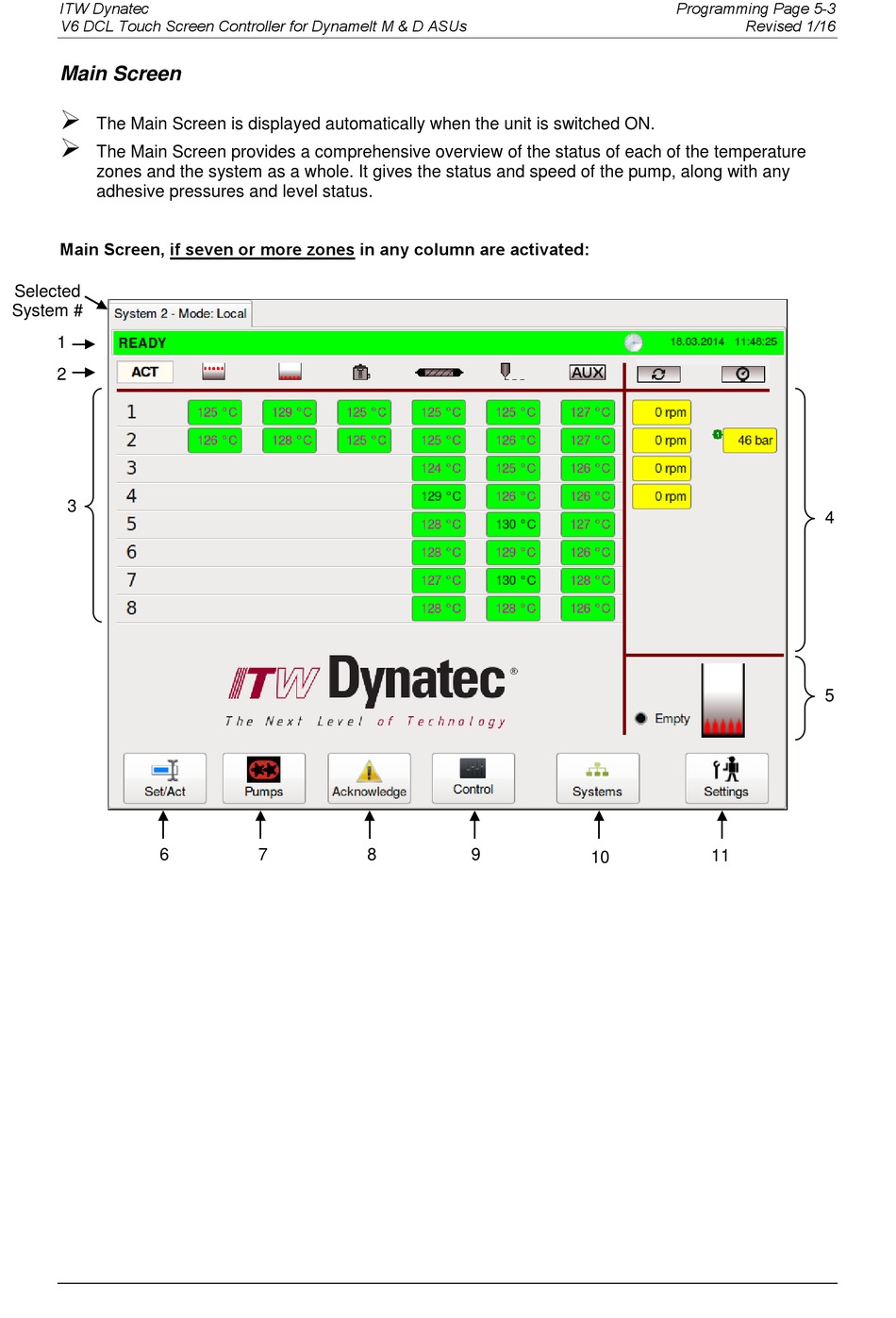

Main Screen, if seven or more zones in any column are activated:
Selected
System #
1
2
3
6
7
8
9
10
Programming Page 5-3
Revised 1/16
4
5
11
