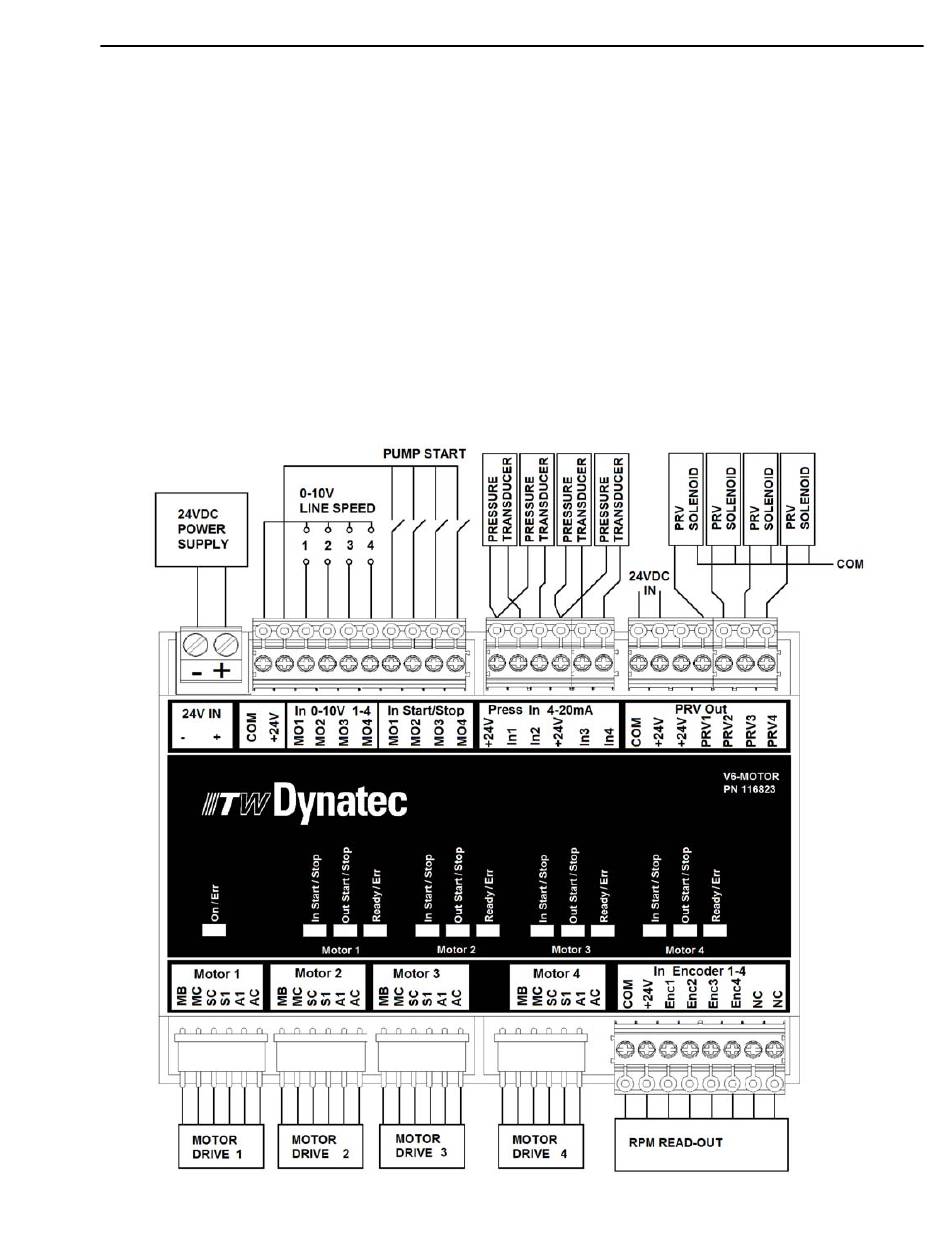

V6 Motor Module PN 116823
A maximum of two V6 MOTOR modules may be installed on the ASU. Each motor module con-
trols up to four motors. Each motor control output is associated with an enable contact and an en-
coder input. A wide variety of encoders (ie. a ring kit) may be adapted to the input.
Each motor may be assigned its individual line speed input, but it is also possible to use a common
line speed input. This also applies to the pump enable input. Each motor module has four pressure
transducer inputs; transducer type is 4-20mA. One or two pressure transducers may be assigned to
each motor.
Motor #1 on the first Motor Module = pump #2 in the system (pump #1 is on the Base Module).
