ITW Dynatec DYNAMELT D15 Series Technical Documentation Manual page 233

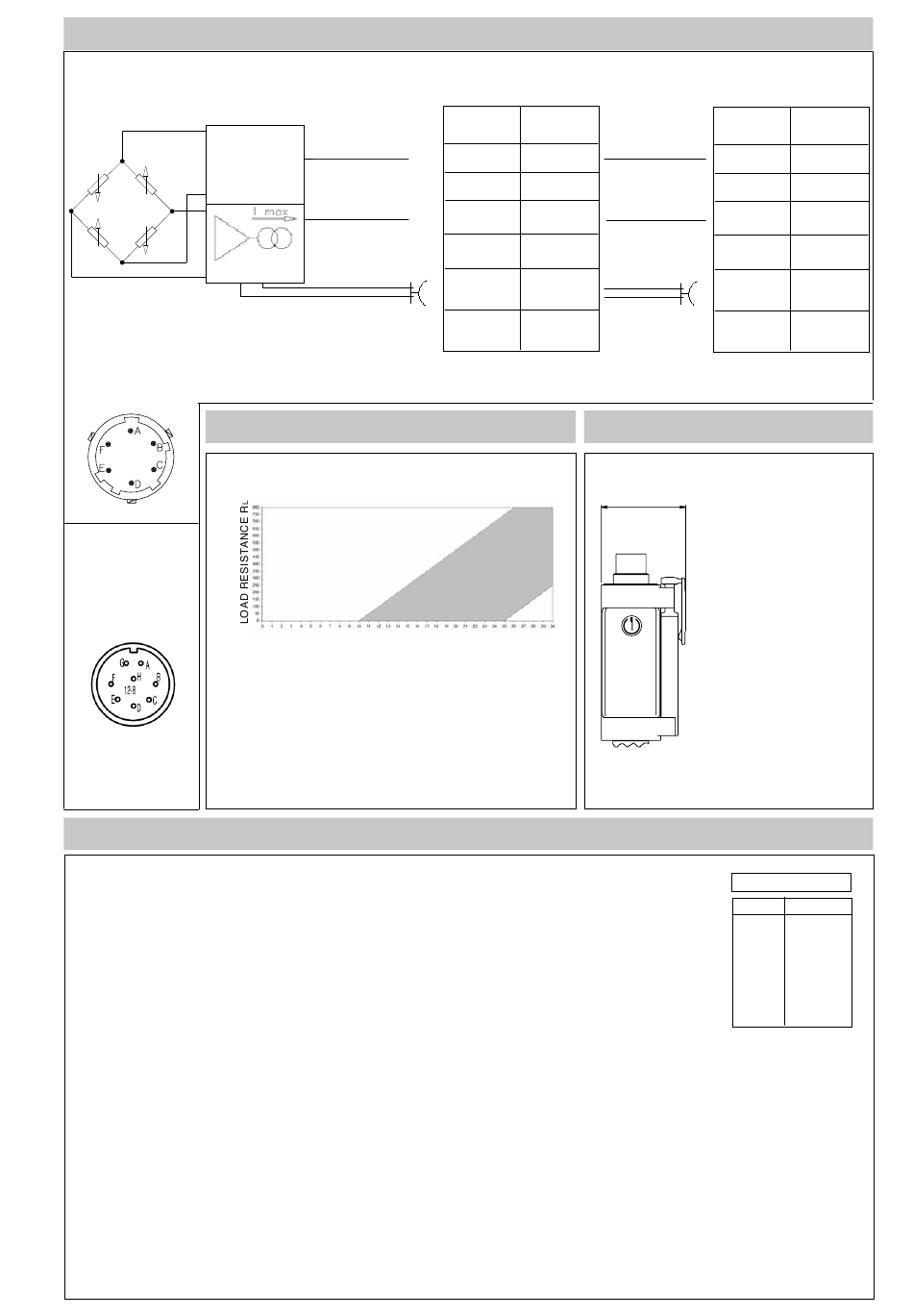

ELECTRICAL CONNECTIONS
CURRENT OUTPUT (4...20mA, two wires)
CONTROLLER
AMPL./CONV.
6 pin connector
VPT07RA10-6PT2
(PT02A-10-6P)
LOAD DIAGRAM
8 pin connector
PC02E-12-8P Bendix
The diagram shows the optimum ratio between the
load and supply voltage of the 4...20mA transmitter.
For a correct use, choose any combination of load
resistance and supply voltage, in the shaded area.
ACCESSORIES
Connectors
6-pin mating connector (IP65 protection degree)
8-pin mating connector
Extension cables
6-pin connector with 8m (25ft) cable
6-pin connector with 15m (50ft) cable
6-pin connector with 25m (75ft) cable
6-pin connector with 30m (100ft) cable
Other lengths
Accessories
Mounting bracket
Dummy plug for 1/2-20UNF
Dummy plug for M18x1.5
Drill kit for 1/2-20UNF
Drill kit for M18x1.5
Cleaning kit for 1/2-20UNF
Cleaning kit for M18x1.5
Fixing pen clip
Autozero pen
Thermocouple for WE2 model
Type "J" (153mm - 6" stem)
6-pin
+
Supply voltage A
(10...30Vdc)
C
n.c.
-
Signal B
(4...20mA)
D
n.c.
Calibration shunt
E - F
n.c.
Shield drain wire is tied to
connector via cable clamp
SUPPLY VOLTAGE
MAGNETIC
AUTOZERO
8-pin
B
Supply voltage
(10...30Vdc)
A
D
Signal
(4...20mA)
C
Autozero
E - F
G - H
AUTOZERO FUNCTION
42 [1.65"]
CON300
CON307
C08WLS
C15WLS
C25WLS
C30WLS
consult factory
SF18
SC12
SC18
KF12
KF18
CT12
CT18
PKIT309
PKIT312
TTER 601
EXTERNAL
AUTOZERO
6-pin 8-pin
+
B
A
A
C
n.c.
-
D
B
C
D
n.c.
E - F
E - F
G - H
n.c.
The Autozero function
is activated through a
magnetic contact (exter-
nal magnet supplied with
the sensor).
See the manual for a
complete Autozero fun-
ction explanation.
Cable color code
Conn. Wire
A Red
B Black
C White
D Green
E Blue
F Orange
