Info Menu (F5)
The info screens contain details about the hot melt system and can aid in troubleshooting.

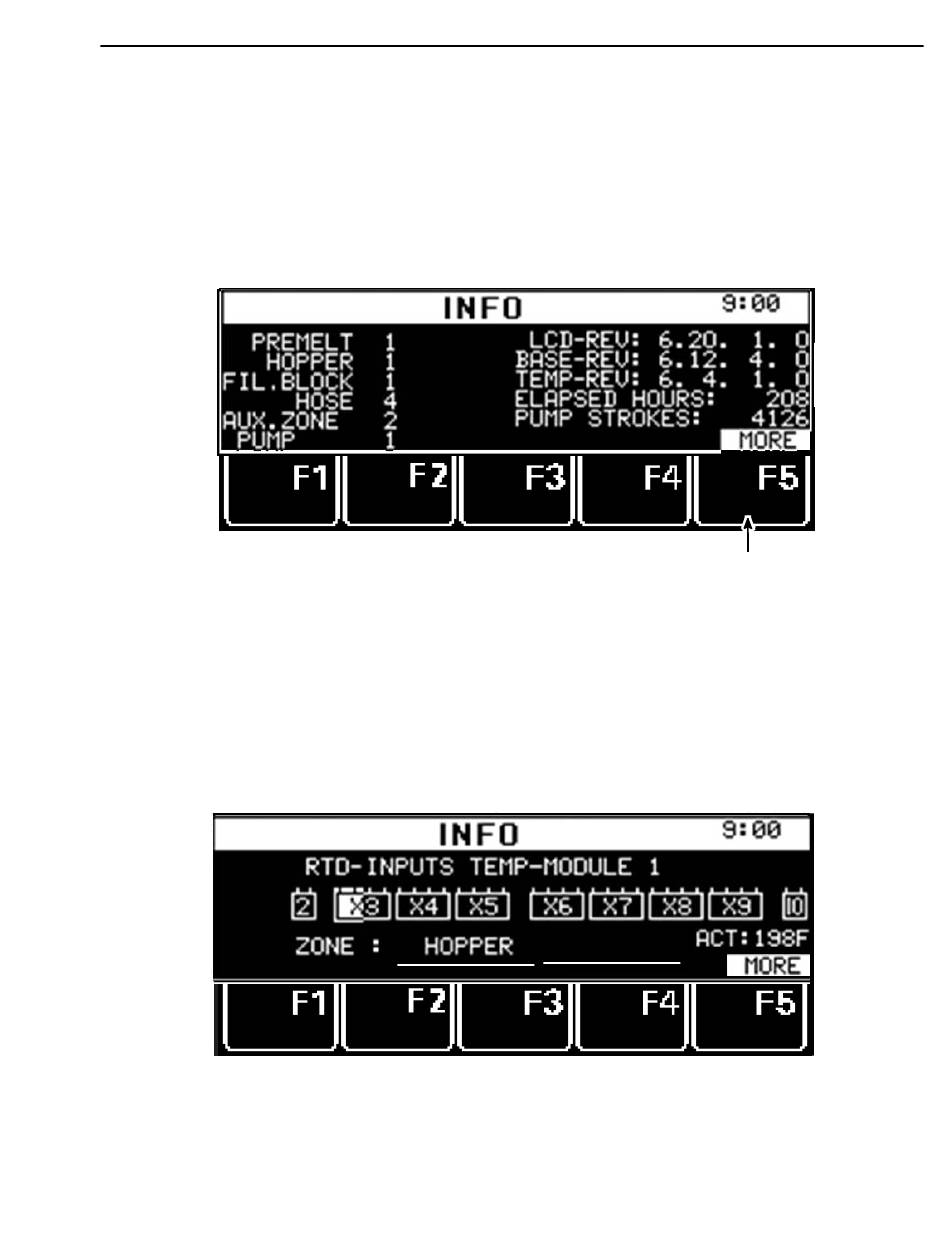

Info Screen #1:

The first Info Screen lists temperature zone and pump configuration. It also provides the revision
level of the controller's modules and the elapsed time on the Dynamelt ASU's controller.
Press F5 to go to the next Info Screen.
Info Screen #2:
The second Info Screen lists each temperature zone individually. Scroll through the zones using
the Input Wheel. The zone's description (ie, HOPPER) and zone # (ie, Z 2), actual temperature,
heat‐up priority (Ie, PR 1) and location of its corresponding RTD sensor is given.
The screen also shows the physical location of the RTD connectors of the temperature module.
This information can help in troubleshooting errors in wiring.
All zones are shown here, even those that are not in use on the ASU.
PR1
Info Screen #3:
The next Info Screen provides set‐up information for the unit's optional communication module.
If that module is installed on your ASU, the set‐up info is provided on a supplemental CD. If the
module is not installed, the Info Screens end with Screen #2.
Press RETURN to exit the Info screens and press RETURN again to return to the Overview Screen.
LCD Programming Page 5-15
Revised 10/14
Press F5 to go to the next Info Screen
Z 2
