Page 3-6 Installation
Revised 10/14
4. At installation, the customer must make the following terminal connections into the ASU's
main power (ON/OFF) switch and modules. The modules do not need to be removed from the ASU
in order to make connections.
Refer to the detailed layout drawings of the components in Ch. 7 and/or the schematics in Ch. 11, if
needed.

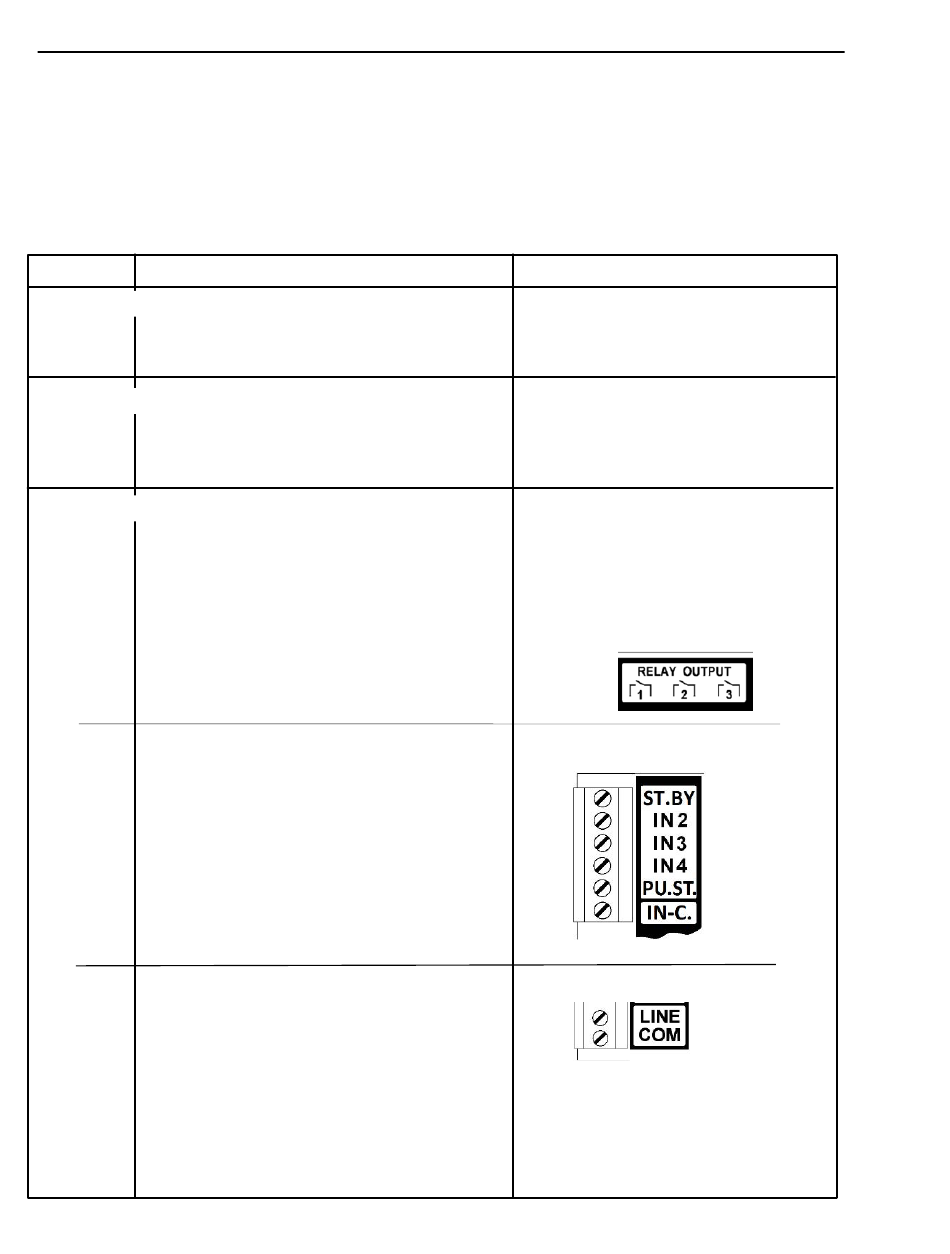

Terminal Circuit
Required connections for 240VAC, 3 PH Delta ASU:
‐ ‐ Input Power from Main Power 240VAC
PE Ground
Required connections for 380/400VAC, 3 phase, WYE ASU:
‐ ‐ Input Power from Main Power, 380VAC
N Neutral, 380VAC
PE Ground
Non‐essential connections; connect if feature is installed:
RELAY Ready Output Signal
OUTPUT 1 (contact closes when ready)
RELAY Alarm Output Signal
OUTPUT 2 (contact opens when alarm)
RELAY Hopper Low Level Signal
OUTPUT 3 (contact closes when glue level is low)
ST.BY
Standby Input
IN2
Recipe Selection 1
IN3
Recipe Selection 2
Reserved
IN4
PU.ST. External Pump Start/Stop
(activate to start pump)
Common for Inputs
IN-C.
LINE
Line Speed Tracking Voltage
COM (0‐10V)
Line Speed Tracking Signal with
G+I or L+I
Signal Isolator (option)
D15/D25/D45 V6 DCL ASU Manual #20-63
Location
See terminal block, L1, L2, L3
See terminal block, PE
See terminal block, L1, L2, L3
See terminal block, N
See terminal, PE
Terminal Block, see R1 R2
Terminal Block, see A1 A2
Optional
V6 BASE Module, bottom side:
V6 BASE Module, bottom side:
Optional. Install at the left of the
Base Module. Refer to schematic
for details.
