Programming
Configuration by DIP-Switches
NOTE:
It is also possible to set the dip-switches using the wizard of the configuration software following the
procedure described in the section "Configuration by PC" until the step 6 and slicking on "Switch".
DIP-Switch Configuration Tables

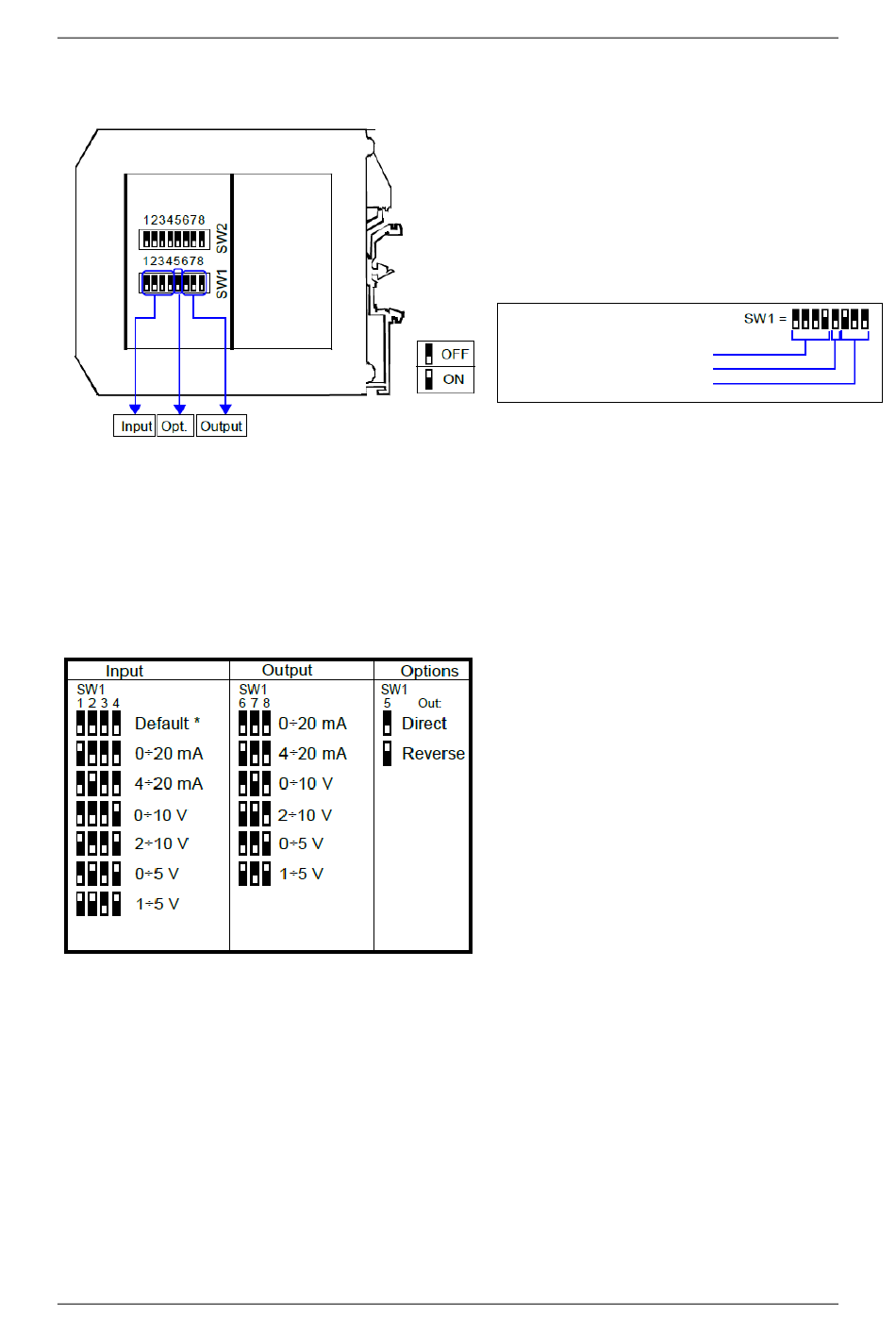

TAB.1 - Settings
NOTES:
* If the dip-switches SW1 [1..4] are all set in the position 0 ("Default"), the device will follow the
configuration programmed by PC (Input and output type and options).
* Eventual wrong dip-switches settings will be signalled by the blinking of the LED "PWR".
1) Open the suitable door on the side of the
device. Refer to TAB.1.
2) Set the input type by the dip-switch SW1 [1..4].
3) Set the output type by the dip-switch SW1
[6..8].
4) Set the options type by the dip-switch SW1 [5].
Example of configuration:
) Input
0 – 10 V
- Options
- Output
4 - 20 mA
ITW Dynatec
Appendix Signal Isolator
