Setup Your System's Parameters
System Parameter Setup refers to the process of programming the controller to meet the specif‐
ic temperature requirements of your production. Temperature setpoints for each temperature
zone must be programmed as well as a standby temperature and high/ low alarm tolerances.
Choices must be made for program selection and pump (or motor) conditions. If desired, tem‐
perature zone offsets and/ or a temperature zone enable may be selected.
The following is a step‐by‐step procedure for setting up the DynaControl with your system's
parameters.

Temperature Zones

Selecting Temperature Zones
From the Overview Screen, turn the Input Wheel slowly to view each temperature zone. As the
wheel is turned, you will see the names of the individual temperature zones on the top line of
the display. Zone names may be re‐programmed to suit the user, but ITW Dynatec's typical D
Series zone names are: PREMELT (drop‐in grid), HOPPER, HOSE, HEAD and AUX.
To select a zone, simply stop turning the wheel when the desired zone's name appears (example
below: HEAD 2). To the right, displayed on the top line, is this zone's programmed setpoint (ex.
SET: 320F) and the actual current temperature of the zone (ex. ACT: 319F).
Below the zone's name is the bar‐graph with the selected zone highlighted. Below the bar‐graph
you can see that this zone is #2 of the system's applicators. At the far right of the display, you
can see that this zone is turned ON.

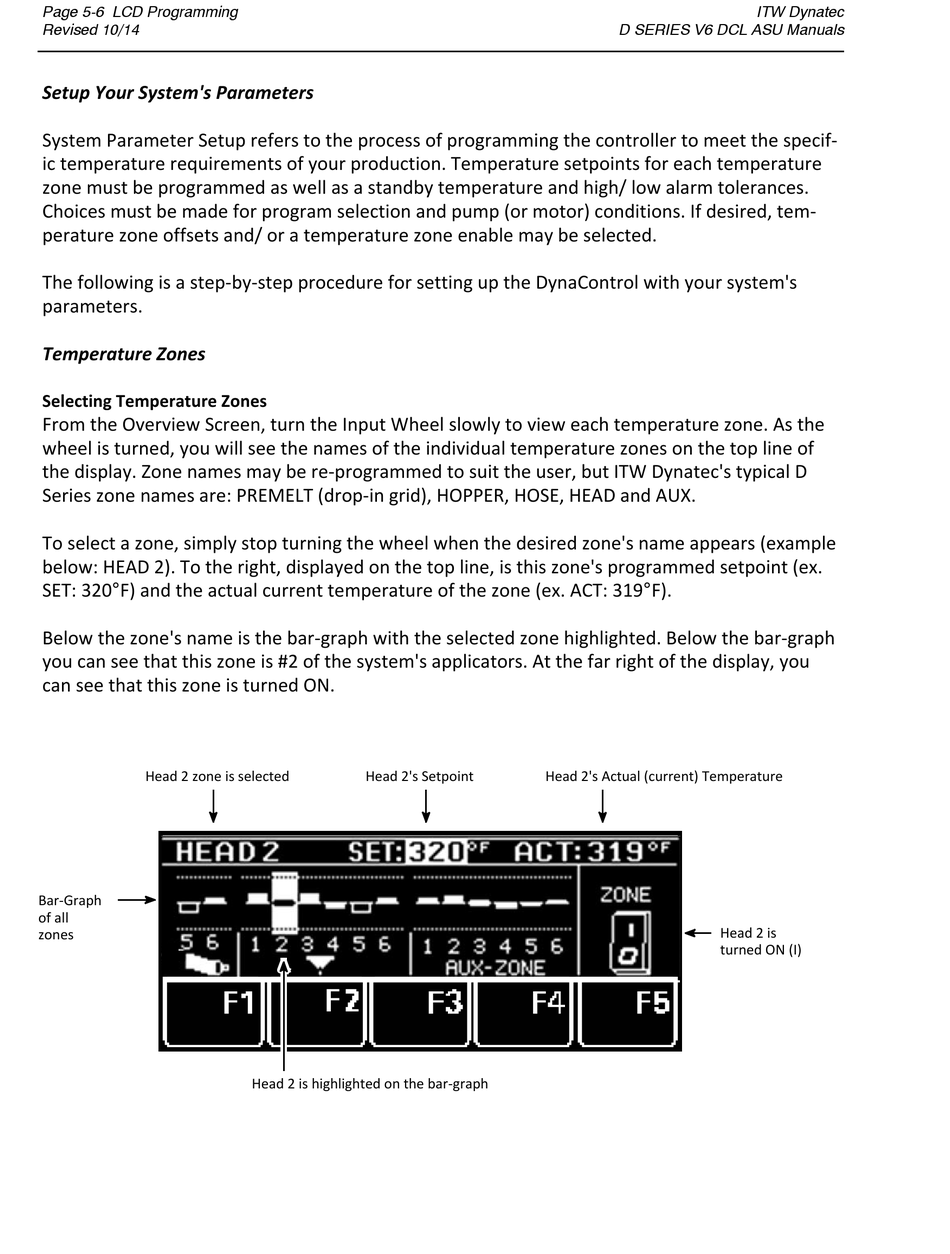

Head 2 zone is selected
Bar‐Graph
of all
zones
Head 2's Setpoint
Head 2 is highlighted on the bar‐graph
D SERIES V6 DCL ASU Manuals
Head 2's Actual (current) Temperature
Head 2 is
turned ON (I)
