Page 5-14 LCD Programming
Revised 10/14
Daily Program #2: On Fridays, the ASU will Switch‐On at 5:30am. It will go into Standby at
12:30pm. It will come out of Standby at 1:00pm and will Switch‐Off at 4:30pm.
Daily Program #3: On Saturdays, the ASU will Switch‐On at 8:15am and Switch‐Off at 12:15pm.

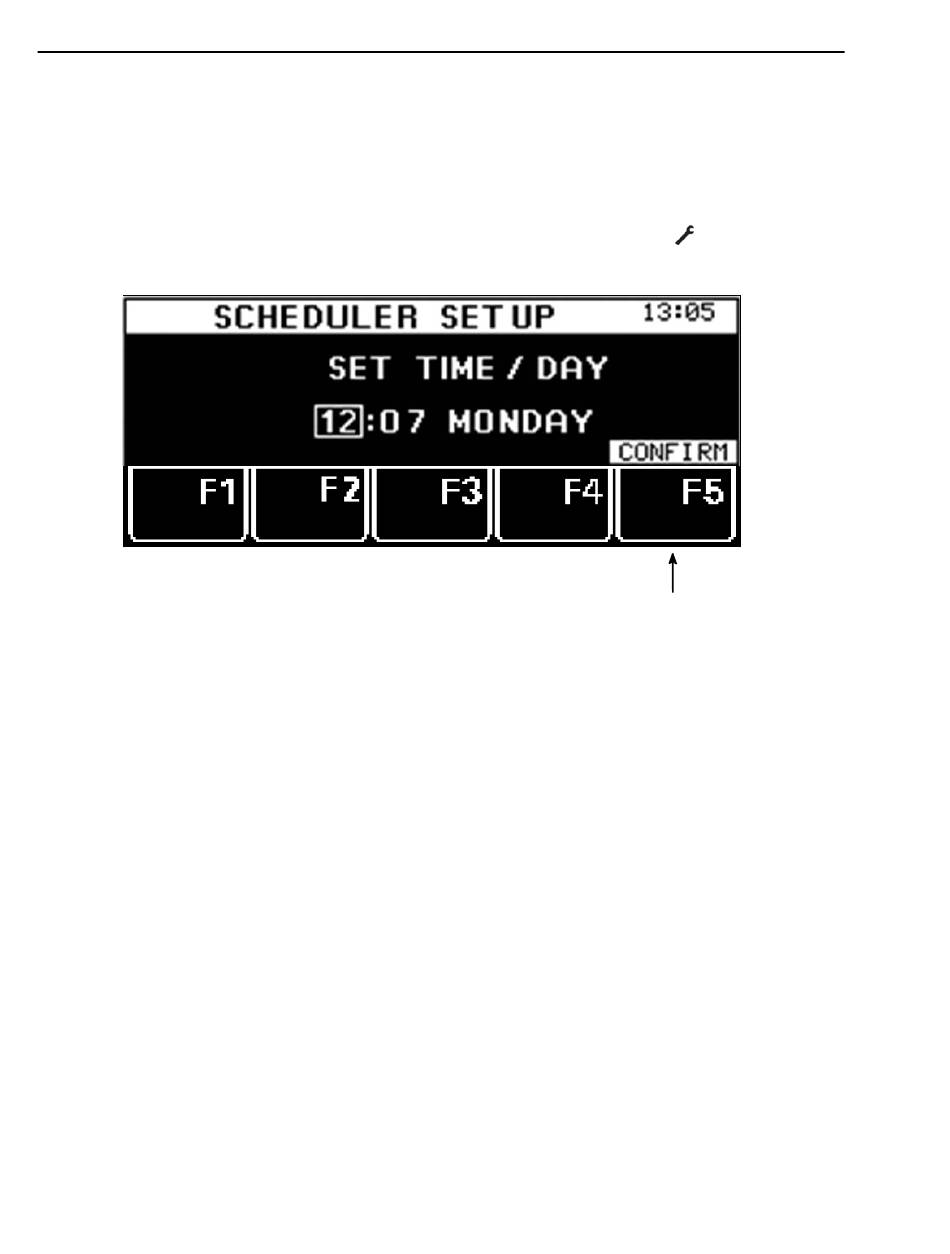

Set Current Time‐of‐Day and Day‐of‐Week
While in the 7‐Day Scheduler Set Up screen, press the Configuration button (
current time and day.
Turn the Input Wheel to select the item to be changed. Press the Enter Knob. Turn the Input
Wheel to the desired time/ day and press F5 to confirm your entry.
Once all 7‐Day Scheduler programming is completed, press the return button twice to return to
the Overview Screen.
D SERIES V6 DCL ASU Manuals
) or F1 to set the
Press F5 to confirm your changes
