Page 7-12 Troubleshooting
Revised 10/14

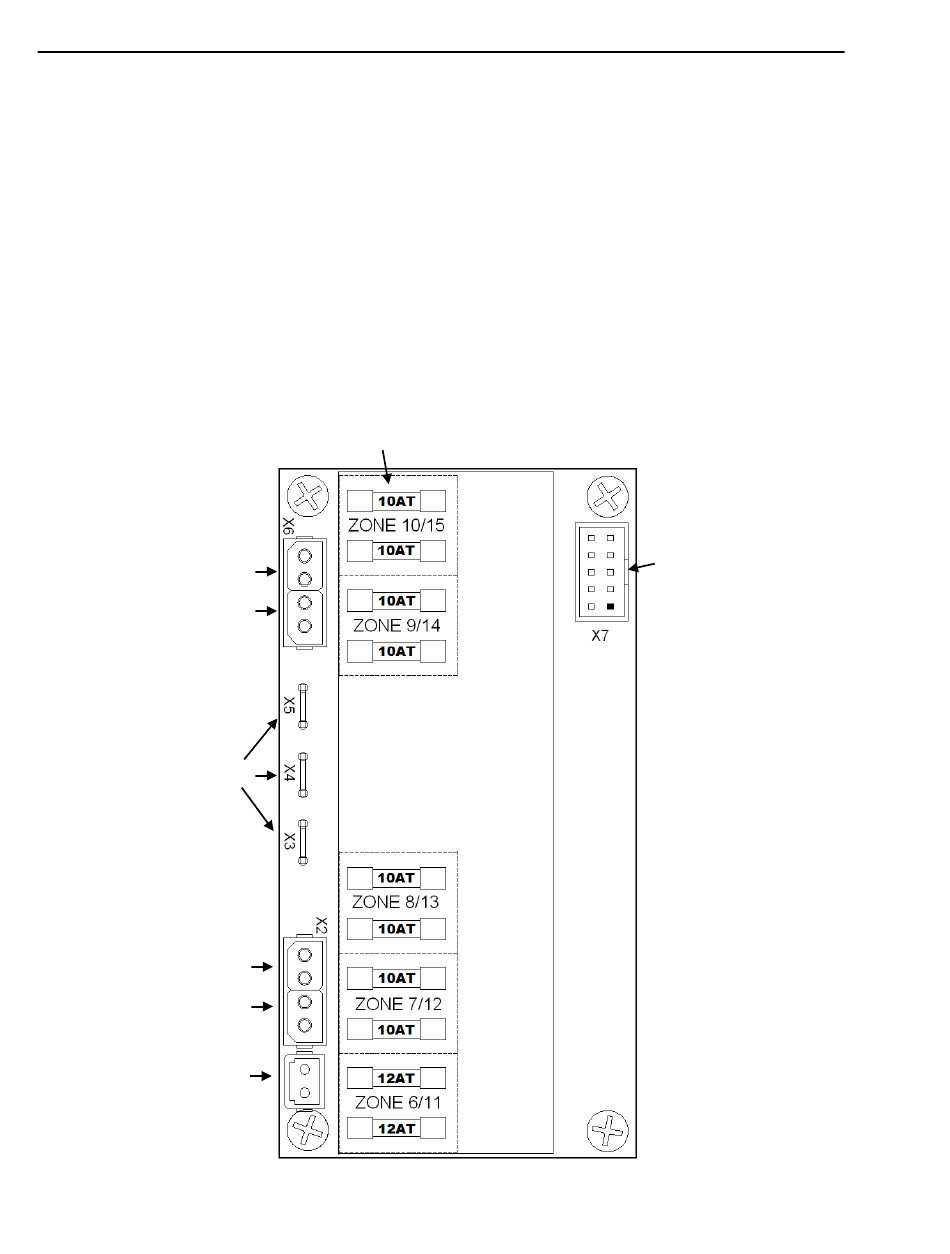

V6 Aux Power Module PN 115733
The V6 AUX module provides controlled power to the heater of the additional five zones. It re-
ceives its control signals from the V6 TEMP module. There are two of these modules on a D Series
ASU.
The fuses of the AUX Module are located underneath a protective cover. The cover should only be
removed after the ASU is switched Off and disconnected from the main power supply. After check-
ing or replacing fuses, the cover must be re-installed. All heater circuits are fused on both legs with
a 10A fuse. Always replace fuses with the same type of fuse. The maximum total load current of
the board is 40 Amps (20 per phase).
Head 4/6
Heater
Hose 4/6
Heater
Voltage Supply
from
Main Power Board
Head 3/5
Heater
Hose 3/5
Heater
Heater
Premelt Grid or
Filter Block
Fuses (under
protective cover)
ITW Dynatec
D SERIES V6 DCL ASU Manuals
Connect to
V6 TEMP Module
