Pump Screen
Return to the Overview Screen if necessary, by pressing the RETURN button. Then press the Pump
button (or F5) to go to the Pump Screen.

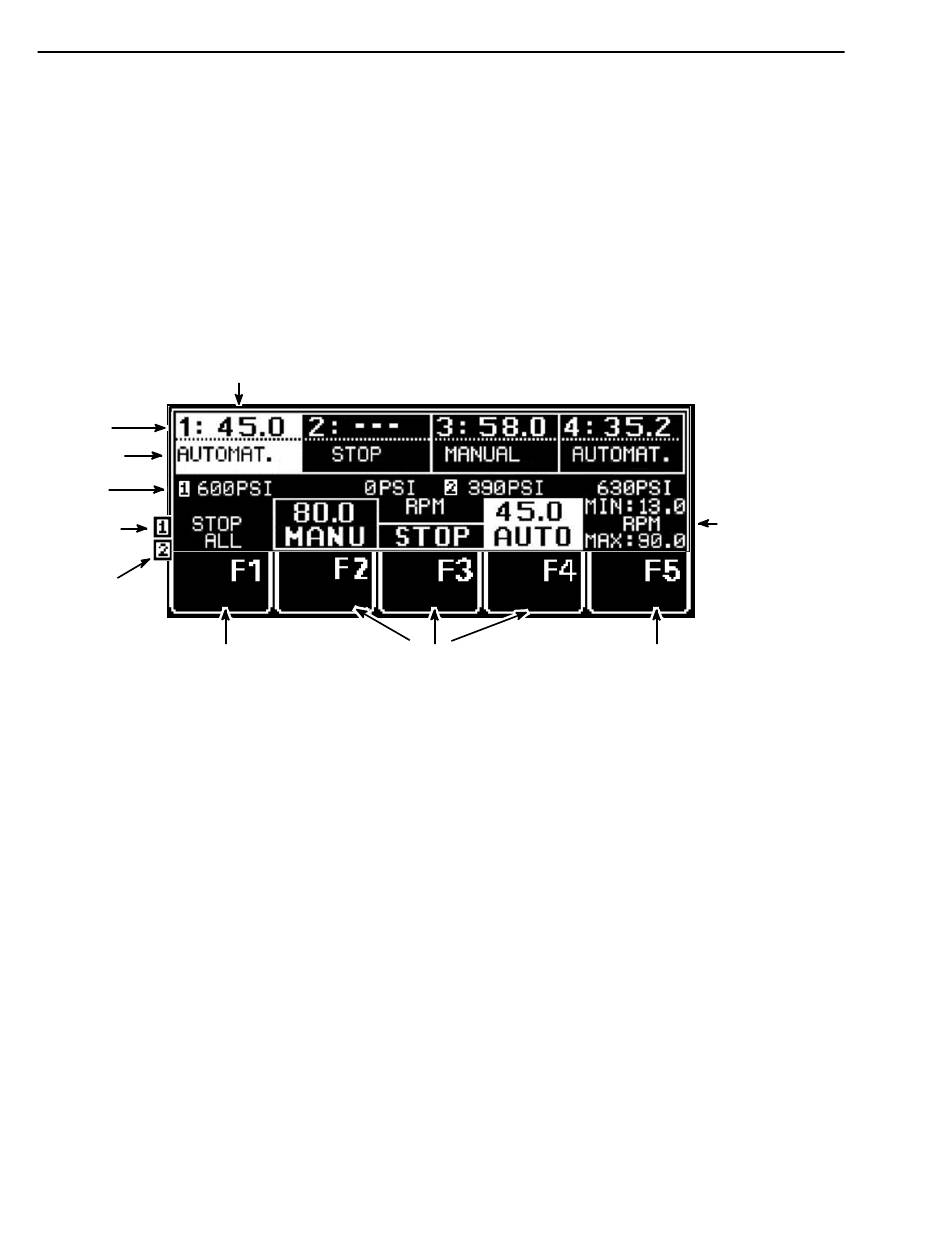

The Pump Screen illustrated below shows the maximum number of pumps (four). The display
shows the pump mode and speed for each pump. If the ASU is equipped with the digital pressure
readout option, the display also shows the actual pressure (PSI/BAR) of each pump. If dual pumps
with pressure readouts are in use, the display toggles between the two pump stream's PSI
readouts. In the example below, pumps #1 and 3 are dual pumps. NOTE: on the D25/45 models,
two pumps is the maximum and on the D50/90 models, four pumps is the maximum.
Pump #1 is selected (this is a dual pump)
Pump #
& Speed
Pump Mode
Pressure
Readout(s)
Dual Pump
Stream #1
(of 2)
Dual Pump
Stream #2
(of 2)
F1 = Stop all pumps

Pump Settings

While on the Pump Screen, all changes are immediate; you do not have to press the Enter Knob.
The Pump Screen allows you to program the pump mode (Manual, Stop or Automatic) and the
pump speed (on a variable speed‐equipped ASU only).
Selecting a Pump
Turn the Input Wheel to scroll through the pumps. The selected pump will be highlighted.
Selecting Pump Mode
Each pump in the system must be programmed with a Pump Mode. The three choices are:
AUTO Mode = the pump will be started and stopped by a parent machine (production line).
MANUAL (MANU) Mode = the pump will be started and stopped manually by an operator.
STOP Mode = the pump is stopped, until AUTO or MANUAL is selected.
To select a pump mode,
a. Use the function buttons:
F2 = MANUAL Mode, F3 = STOP or F4 = AUTO Mode, or
b. Use the Input Wheel:
If Auto or Stop modes are desired, simply turn the Input Wheel to highlight that function.
Pump Mode Selectors:
F2 = Manual mode
F3 = Stop
F4 = Automatic mode
