Pressure Zero Calibration



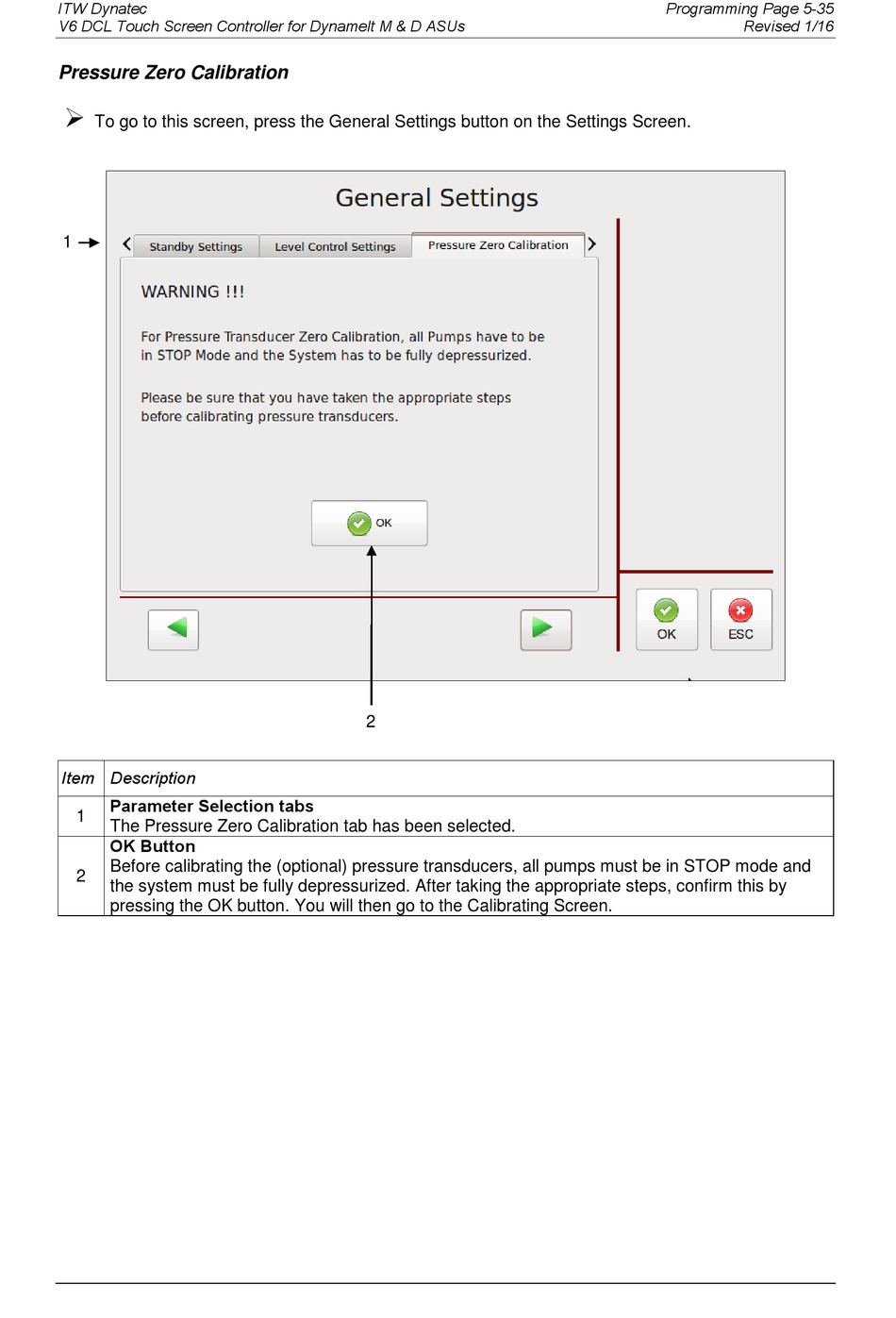

To go to this screen, press the General Settings button on the Settings Screen.
1
Item Description
Parameter Selection tabs
1
The Pressure Zero Calibration tab has been selected.
OK Button
Before calibrating the (optional) pressure transducers, all pumps must be in STOP mode and
2
the system must be fully depressurized. After taking the appropriate steps, confirm this by
pressing the OK button. You will then go to the Calibrating Screen.
