Typical Start-Up and Shut Down of the V6 System Using LCD Controller
The following simplified sequence assumes that the LCD HMI DynaControl V6 Controller has
been programmed.
Start Up Procedures
1. Fill the ASU's hopper with clean hot-melt adhesive to within a couple of centimeters (inches)
of the top of the hopper. Close the hopper lid immediately to prevent contaminants from falling
in. (Cover your bulk supply of adhesive to prevent contaminants also.)
2. Switch ON the Main Switch. The controller display will come on and the ASU will begin to
heat up.
3. Allow adequate time (approximately 20-30 min.) for the adhesive to melt and the temperatures
of the heated zones to stabilize. The display will indicate when the unit reaches operating temper-
ature:
The LCD panel will display "READY" in the upper left-hand corner when all zones are within
their hi-lo tolerance range of the setpoint temperature. More information about the display can be
found in Chapters 4 and 5.
4. When temperatures are ready, the pump/ motor is enabled to pump adhesive.
a. If Pump is in Auto Program: Adhesive will begin to pump when the production line begins to
operate.
b. If Pump is in Manual Program:
i. Press Pump button.
ii. Press Manual (F2).
iii. Select desired speed by turning in-
put knob or select a pre-set speed (F5).
iv. Adhesive will begin to pump after
Ready condition is attained.
Shut Down Procedures
1. If Pump is in Auto Program: Turn OFF
the Main Switch.
2. If Pump is in Manual Program:
a. Turn OFF the pump/ motor by depressing
the Pump button, then scroll to STOP.
b. Turn OFF the Main Switch.
3. If 7-Day Scheduler is in use: Turn the unit ON and OFF with the Scheduler On/Off:
a. Press Menu
b. Press 7-Day Scheduler (F4)
c. Press F2 for Sleep Mode (Off). (To cancel Sleep Mode, press the Input knob).

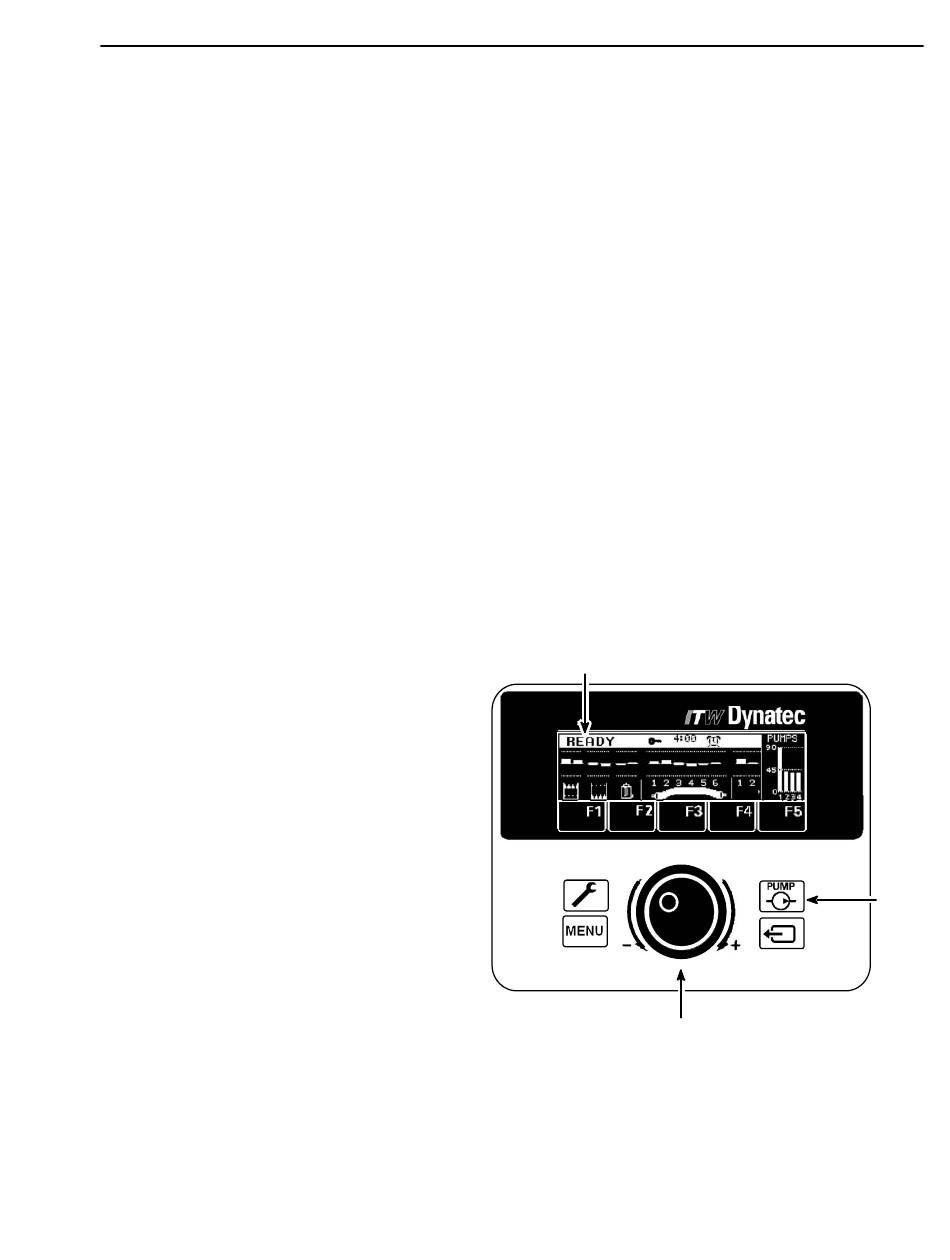

Ready display
Input knob (turn)/ Enter button (push)
Installation Page 3-13
Revised 10/14
Pump
button
