ITW Dynatec
D SERIES V6 DCL ASU Manuals
Temperature
 F
32
50
68
86
104
122
140
158
176
194
212
230
248
268
284
302
320
338
356
374
392
410
428

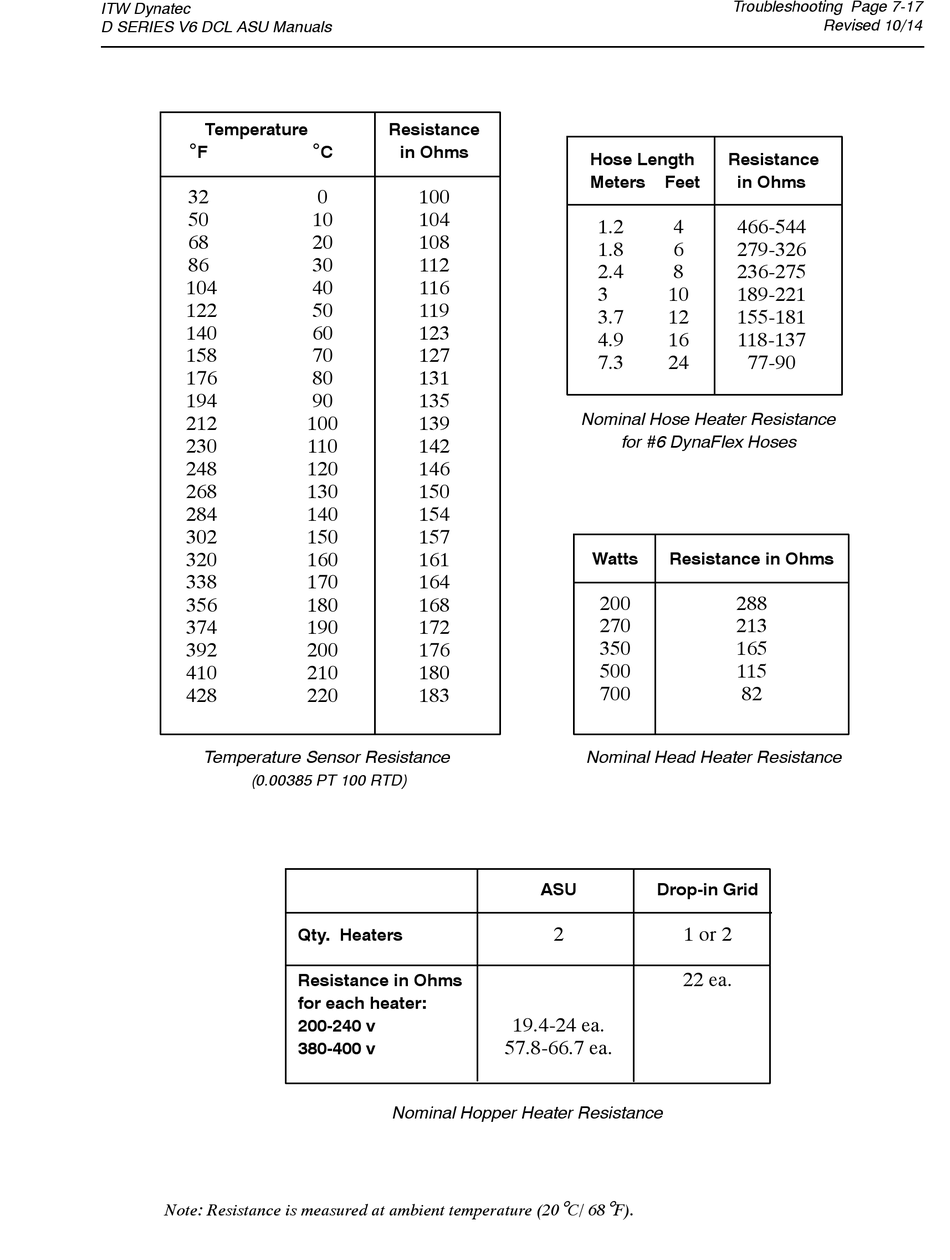

Temperature Sensor Resistance
(0.00385 PT 100 RTD)
Note: Resistance is measured at ambient temperature (20
Resistance
 C in Ohms
0 100
10 104
20 108
30 112
40 116
50 119
60 123
70 127
80 131
90 135
100 139
110 142
120 146
130 150
140 154
150 157
160 161
170 164
180 168
190 172
200 176
210 180
220 183
Qty. Heaters
Resistance in Ohms
for each heater:
200-240 v
380-400 v
Nominal Hopper Heater Resistance
Hose Length
Meters Feet
1.2 4
1.8 6
2.4 8
3 10
3.7 12
4.9 16
7.3 24
Nominal Hose Heater Resistance
for #6 DynaFlex Hoses
Watts Resistance in Ohms
200
270
350
500
700
Nominal Head Heater Resistance
ASU Drop-in Grid
2 1 or 2
22 ea.
19.4-24 ea.
57.8-66.7 ea.
 
C/ 68 F).
Troubleshooting Page 7-17
Revised 10/14
Resistance
in Ohms
466-544
279-326
236-275
189-221
155-181
118-137
77-90
288
213
165
115
82
