ITW Dynatec DYNAMELT D15 Series Technical Documentation Manual page 144

Page 7-10 Troubleshooting
Revised 10/14
V6 Power Module PN 115732

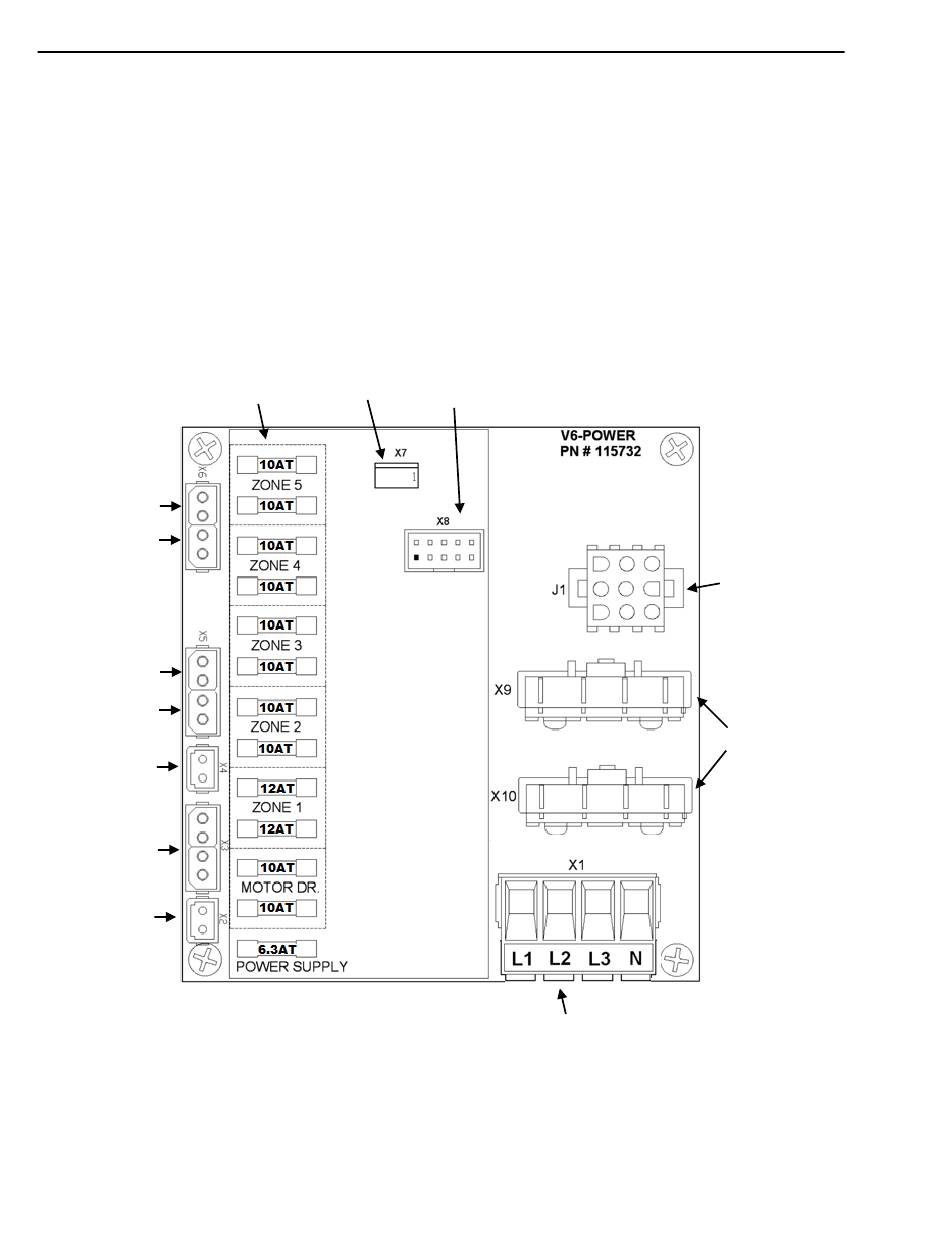

The V6 POWER module provides controlled power to the heater of the first five zones. It receives
its control signals from the V6 TEMP module. The Power Module also has protected outputs for
the DC power supply and motor drive.
Each zone can provide a maximum of 10 Amps. The maximum total load of the board is 40 Amps
(20 per phase). The board has its own heat sink which is mounted on the panel box insert for good
heat conductivity.
Fuses (under
protective cover)
Head 2
Heater
Hose 2
Heater
Head 1
Heater
Hose 1
Heater
Hopper
Heater
Motor Drive
DC Power
supply
Connec t to
Current
V6 T EMP Module
Monitoring
D SERIES V6 DCL ASU Manuals
Main Voltage Supply
(from main On/Off switch)
ITW Dynatec
Voltage
Configuration
Connector
Power supply
for additional
power boards
