D15/D25/D45 V6 DCL ASU Manual #20-63

Placing the ASU

The D15/D25/D45 SERIES ASUs can stand alone on flat surfaces. Access is needed for the main
electrical power and the serial communication connections to come in from below the unit and to
connect to the V6 Base Module (which is inside the panel box). There is a cutout in the ASU's base
plate, directly below the pump shaft, which allows adhesive to drain.
The ASU's hinged hopper lid may be rotated 90 degrees in any direction, so that it can be set up to
open in the most convenient direction.
For installation dimensions, see illustration on page 2-4.
Typical equipment configuration includes wheels and brakes, which should be
engaged whenever the equipment is not being transported. DO NOT install
equipment on a sloped surface. Transportation of equipment over a sloped surface
presents an increased risk of injury in the event of uncontrolled rolling.
DynaControl Controller
Panel Box Cabinet
Main On/Off
Disconnect Switch
Front Door Lock
Chapter 3
INSTALLATION
DANGER INSTALL ON FLAT SURFACE

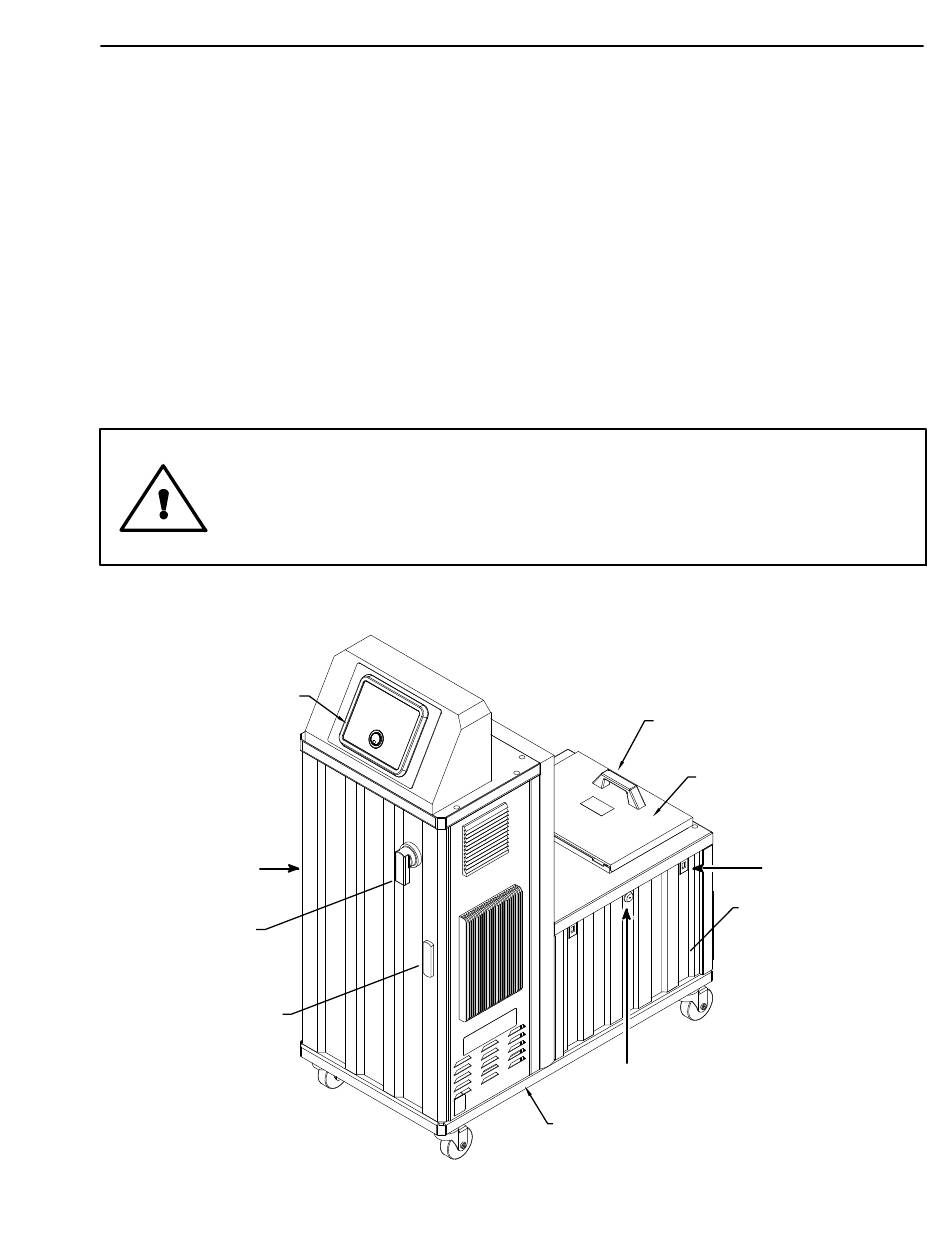

D15/D25 Adhesive Supply Unit (ASU)
Hopper Cover
Hopper Lid
Hopper Access Cover
Key Lock
Base Plate
Installation Page 3-1
Revised 10/14
Latch (1 of 4)
