ITW Dynatec
V6 DCL Touch Screen Controller for Dynamelt M & D ASUs

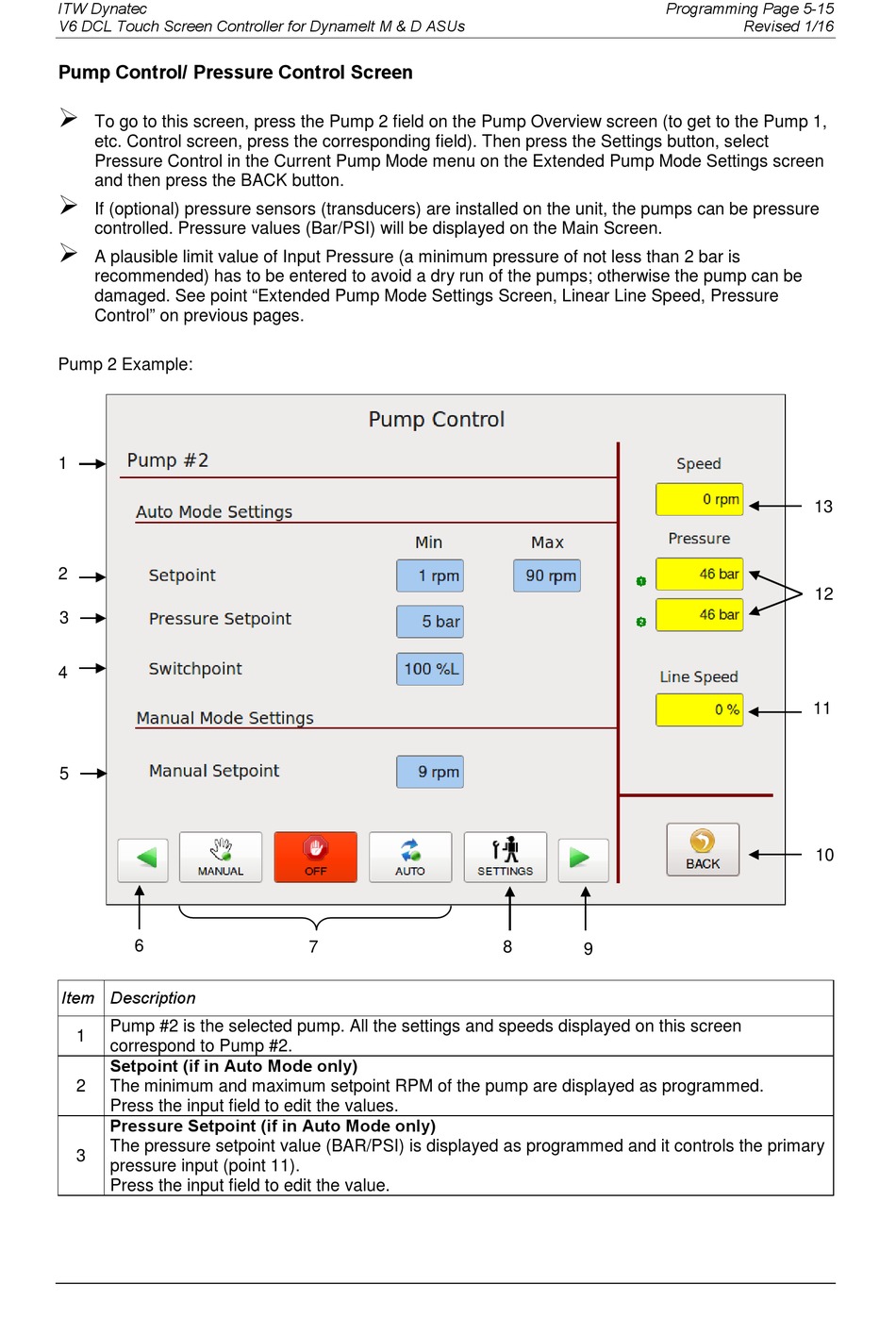

Pump Control/ Pressure Control Screen

To go to this screen, press the Pump 2 field on the Pump Overview screen (to get to the Pump 1,
etc. Control screen, press the corresponding field). Then press the Settings button, select
Pressure Control in the Current Pump Mode menu on the Extended Pump Mode Settings screen
and then press the BACK button.

If (optional) pressure sensors (transducers) are installed on the unit, the pumps can be pressure
controlled. Pressure values (Bar/PSI) will be displayed on the Main Screen.

A plausible limit value of Input Pressure (a minimum pressure of not less than 2 bar is
recommended) has to be entered to avoid a dry run of the pumps; otherwise the pump can be
damaged. See point "Extended Pump Mode Settings Screen, Linear Line Speed, Pressure
Control" on previous pages.
Pump 2 Example:
1
2
3
4
5
6
Item Description
Pump #2 is the selected pump. All the settings and speeds displayed on this screen
1
correspond to Pump #2.
Setpoint (if in Auto Mode only)
2 The minimum and maximum setpoint RPM of the pump are displayed as programmed.
Press the input field to edit the values.
Pressure Setpoint (if in Auto Mode only)
The pressure setpoint value (BAR/PSI) is displayed as programmed and it controls the primary
3
pressure input (point 11).
Press the input field to edit the value.
7
Programming Page 5-15
8
9
Revised 1/16
13
12
11
10
