ITW Dynatec
V6 DCL Touch Screen Controller for Dynamelt M & D ASUs

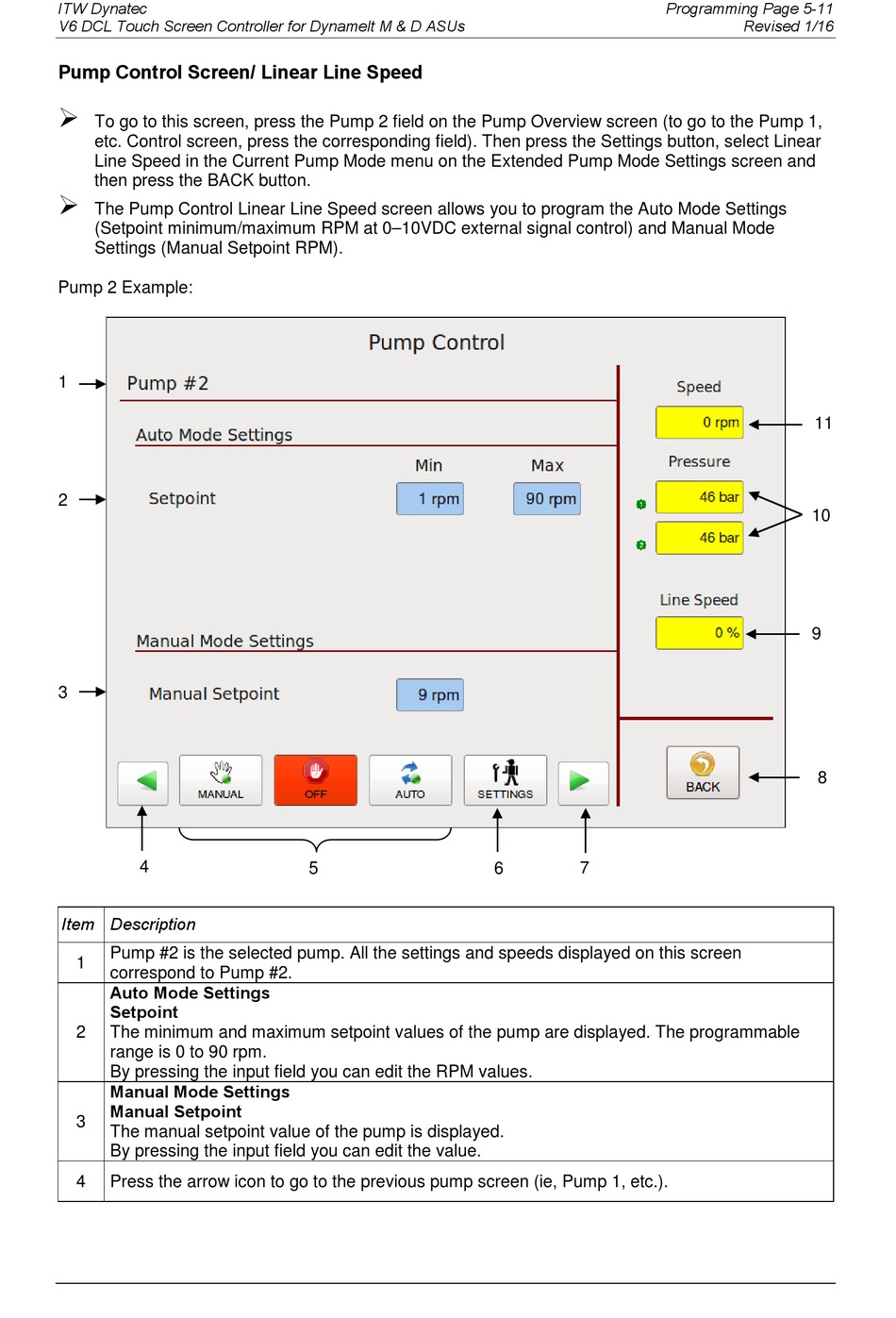

Pump Control Screen/ Linear Line Speed
To go to this screen, press the Pump 2 field on the Pump Overview screen (to go to the Pump 1,
etc. Control screen, press the corresponding field). Then press the Settings button, select Linear
Line Speed in the Current Pump Mode menu on the Extended Pump Mode Settings screen and
then press the BACK button.
The Pump Control Linear Line Speed screen allows you to program the Auto Mode Settings
(Setpoint minimum/maximum RPM at 0–10VDC external signal control) and Manual Mode
Settings (Manual Setpoint RPM).
Pump 2 Example:
1
2
3
4
Item Description
Pump #2 is the selected pump. All the settings and speeds displayed on this screen
1
correspond to Pump #2.
Auto Mode Settings
Setpoint
2
The minimum and maximum setpoint values of the pump are displayed. The programmable
range is 0 to 90 rpm.
By pressing the input field you can edit the RPM values.
Manual Mode Settings
Manual Setpoint
3
The manual setpoint value of the pump is displayed.
By pressing the input field you can edit the value.
4
Press the arrow icon to go to the previous pump screen (ie, Pump 1, etc.).
5
7
6
Programming Page 5-11
Revised 1/16
11
10
9
8
