ITW Dynatec DYNAMELT D15 Series Technical Documentation Manual page 211

3 PHASE 230V (DELTA)
L1/20.3
L2/20.3
L3/20.3
PN
-A30.0
4 3 2 1 X11 1 2
X1
L1/20.3
L2/20.3
L3/20.3
N/20.3
PN PN
-A30.0
4 3 2 1 X11 1 2
X1
F1 F2
X3 X2
1 2
4 3 2 1
L60.3
TO MOTOR DRIVE 1
N60.3
3 4 X10 1 2 3 4
J1 VOLTAGE
CONFIGURATIOPN
PLUG
V6-POWER PCB
P/N 115725
PN 115732
VIOLET
3 PHASE 400V (WYE)
3 4 1 2 3 4
X10
J1 VOLTAGE
CONFIGURATIOPN
PLUG
F13
P/N 115726
YELLOW
V6-POWER PCB
PN 115732
L50.0
TO DC POWER PN 680470
SUPPLY
N50.0
PN 680465
L60.4
TO MOTOR DRIVE 2
PN 680465
N60.4
L1/20.3
L2/20.3
L3/20.3
-A30.5
V6-AUX 1
PN 115733
X3 X4 X5
L2/20.3
L3/20.3
N/20.3
-A30.5
V6-AUX 1
PN 115733
X3 X4 X5
L1/20.3
L2/20.3
L3/20.3
V6-AUX 2
PN 115733
X3 X4 X5
L1/20.3
L3/20.3
N/20.3
V6-AUX 2
PN 115733
X3 X4 X5

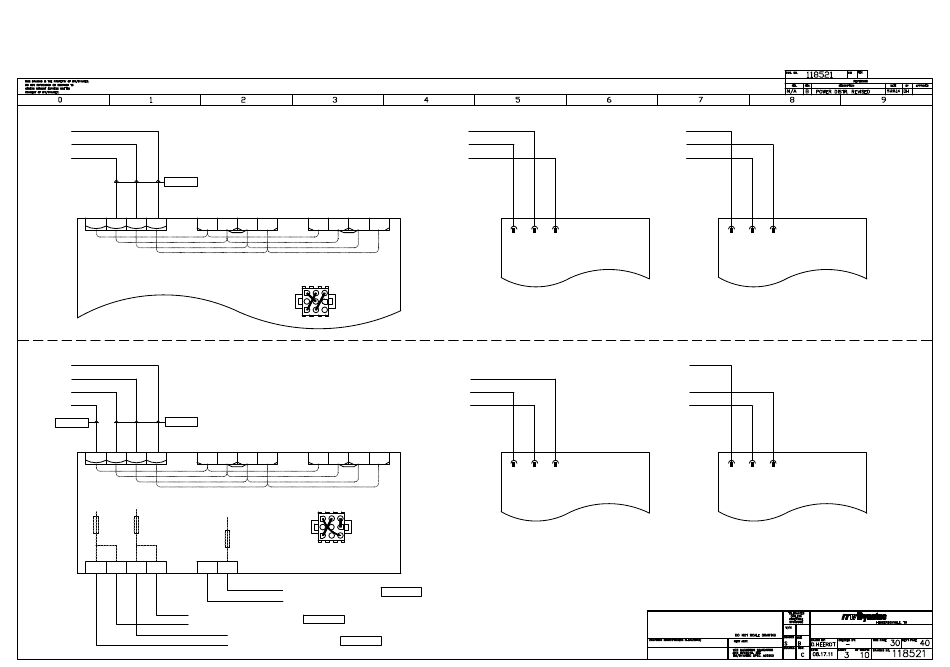

D15/25/45 V6
POWER PCBs
SCHEM, D15/25/45, V6
3 C
-A30.8
-A30.8
