TEMP SENS FAULT
TEMP SENS FAULT

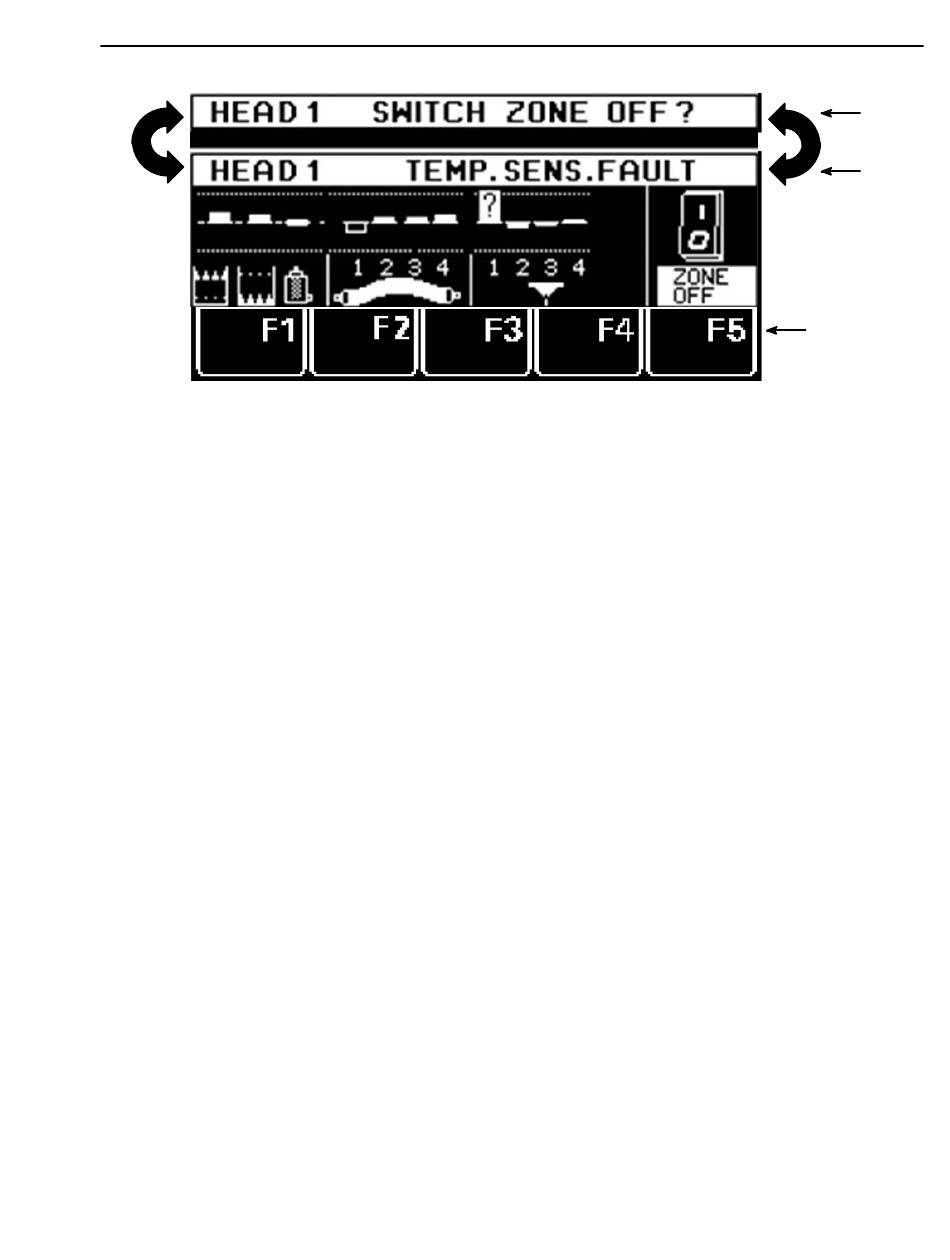

Advance to the temperature zones display to see which zone is affected. The two status lines shown
above will alternate in this mode. As seen above, the question mark is placed on the zone with the
faulty sensor (ie, Head #1). After troubleshooting the fault (reference the Error Indication Alarm
Troubleshooting Guide on the previous pages of this chapter) and solving the problem with the
sensor, press the RETURN button.
Or, if Head #1 is not in use, press F5 to turn the zone Off.
?
?
LCD Programming Page 5-27
PRESS
PRESS
Revised 10/14
Status
Status
F5 = Zone Off
