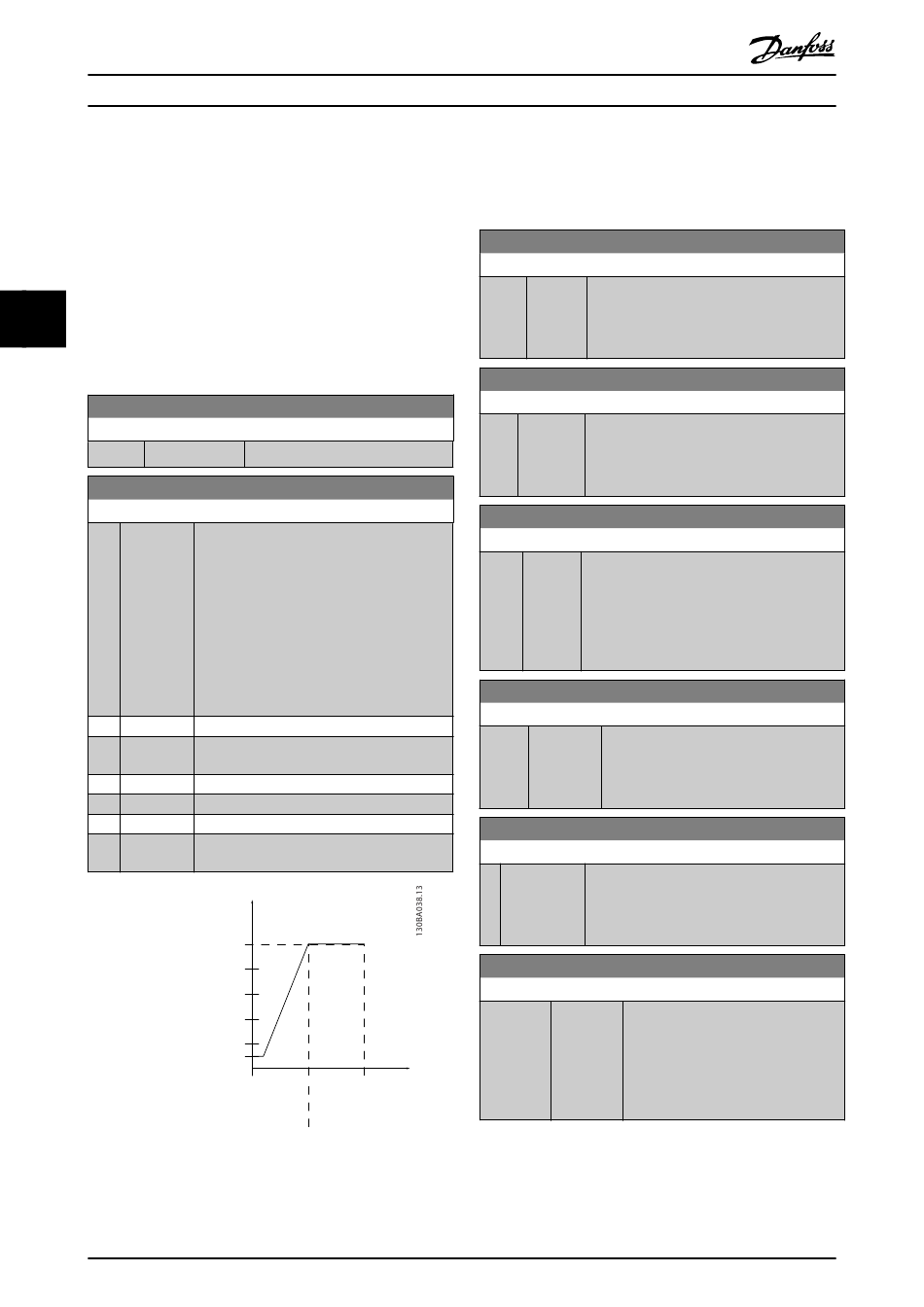

4.7 Main Menu - Analog In/Out - Group 6

Parameter group for setting up the analog I/O configu-
ration and the digital output. The frequency converter
provides 2 analog inputs:
•
Terminal 53.
•
Terminal 54.
The analog inputs can be freely allocated to either voltage
4 4
(0–10 V) or current input (0/4–20 mA)
4.7.1 6-0* Analog I/O Mode
6-00 Live Zero Timeout Time
Range:
10 s [1 - 99 s]
*
6-01 Live Zero Timeout Function
Option:
[0] Off
*
[1] Freeze
output
[2] Stop
[3] Jogging
[4] Max. speed
[5] Stop and
trip
Par 6-xx
High Ref./
Feedb. Value'
Par 6-xx
Low Ref./
Feedb. Value'
Illustration 4.13 Live Zero Timeout Function
66
VLT
Function:
Enter the timeout time.
Function:
Select the timeout function. The function set
in parameter 6-01 Live Zero Timeout Function is
activated, if the input signal on terminal 53 or
54 is below 50% of the value in
parameter 6-10 Terminal 53 Low Voltage,
parameter 6-12 Terminal 53 Low Current,
parameter 6-20 Terminal 54 Low Voltage, or
parameter 6-22 Terminal 54 Low Current for a
time period defined in parameter 6-00 Live
Zero Timeout Time.
Ref./Feedback
[RPM]
1500
1200
900
600
300
150
1 V 5 V 10 V
Par 6-xx
Analog input
'Low Voltage'or
'Low Current'
Par 6-xx
'High Voltage'or
'High Current'
Danfoss A/S © 11/2015 All rights reserved.
®
DriveMotor FCP 106/FCM 106
4.7.2 6-1* Analog Input 53
Parameters for configuring the scaling and limits for analog
input 53 (terminal 53).
6-10 Terminal 53 Low Voltage
Range:
0.07 V [0 - 10
*
V]
6-11 Terminal 53 High Voltage
Range:
10 V [0 - 10 V] Enter the voltage (V) that corresponds to the
*
6-12 Terminal 53 Low Current
Range:
4 mA [0 - 20
*
mA]
6-13 Terminal 53 High Current
Range:
20 mA [0 - 20
*
mA]
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
0 [-4999 -
*
4999 ]
6-15 Terminal 53 High Ref./Feedb. Value
Range:
Size
related
*
[V]
Function:
Enter the voltage (V) that corresponds to
parameter 6-14 Terminal 53 Low Ref./Feedb.
Value. To activate parameter 6-01 Live Zero
Timeout Function, set the value at >1 V.
Function:
high reference value (set in
parameter 6-15 Terminal 53 High Ref./Feedb.
Value).
Function:
Enter the low current value. This reference
signal corresponds to the low reference/
feedback value that is set in
parameter 6-14 Terminal 53 Low Ref./Feedb.
Value. To activate parameter 6-01 Live Zero
Timeout Function, set the value to >2 mA.
Function:
Enter the high current value corresponding
to the high reference/feedback set in
parameter 6-15 Terminal 53 High Ref./Feedb.
Value.
Function:
Enter the reference or feedback value that
corresponds to the voltage or current set in
parameter 6-10 Terminal 53 Low Voltage to
parameter 6-12 Terminal 53 Low Current.
Function:
[-4999 - Enter the reference or feedback value
4999 ] that corresponds to the voltage or
current set in parameter 6-11 Terminal
53 High Voltage to
parameter 6-13 Terminal 53 High
Current.
MG03N202
