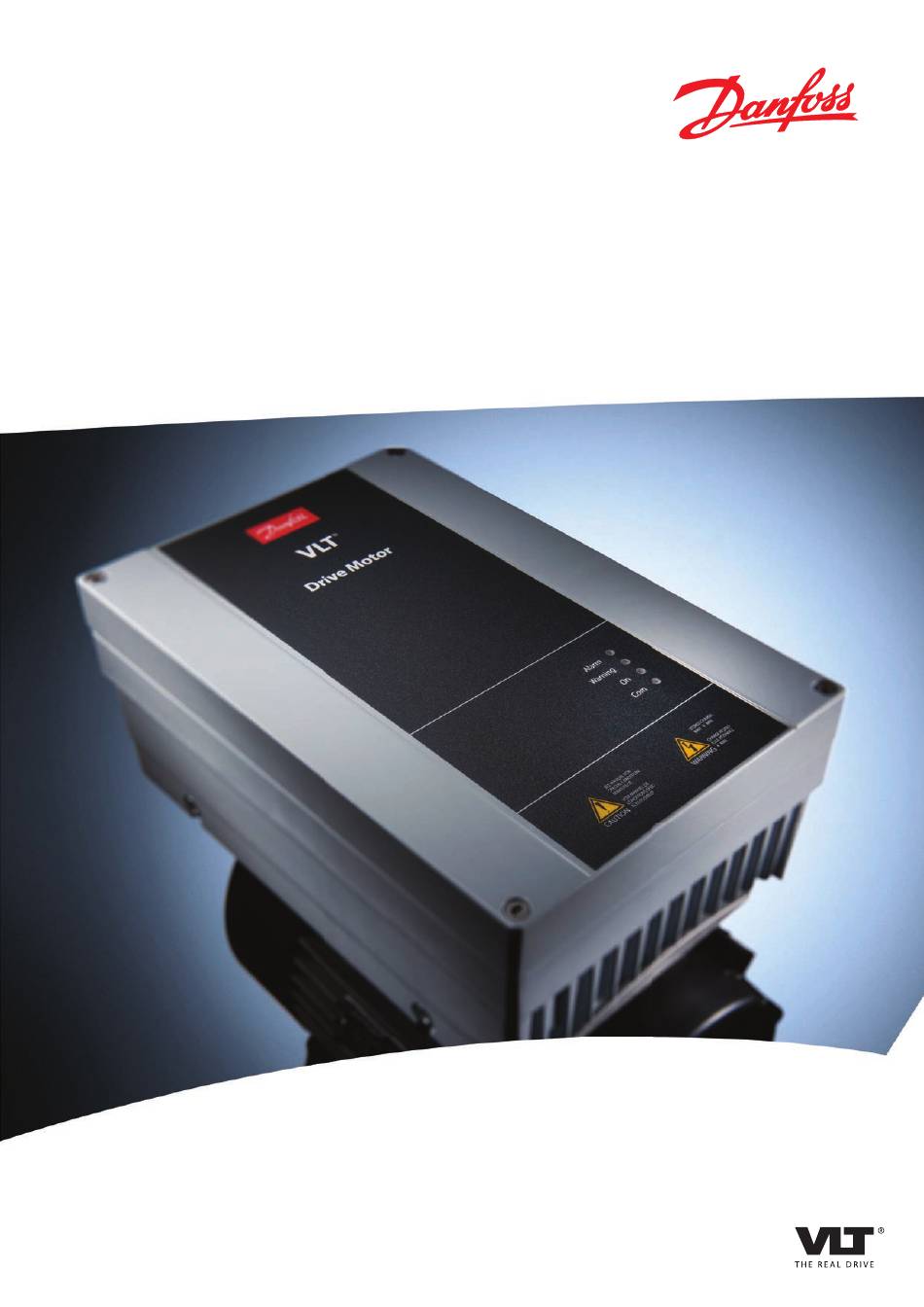

MAKING MODERN LIVING POSSIBLE
Operating Instructions
®
VLT
DriveMotor FCP 106 and FCM 106 BACnet
www.danfoss.com/drives

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DriveMotor FCP 106 BACnet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Danfoss DriveMotor FCP 106 BACnet

Summary of Contents for Danfoss DriveMotor FCP 106 BACnet

  • Page 1 MAKING MODERN LIVING POSSIBLE Operating Instructions ® DriveMotor FCP 106 and FCM 106 BACnet www.danfoss.com/drives...

  • Page 3: Table Of Contents

    5.3 BIBBs 5.4 Object/Property Support Matrix 6 Parameters 6.1 Parameter List 6.2 Parameter Description 7 Troubleshooting 7.1 Alarm, Warning and Extended Status Word 7.1.1 Alarm and Warning Messages 7.1.2 Alarm Words MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 4 ® Contents DriveMotor FCP 106 & FCM 106 BACnet Operating Instructions 7.1.3 Warning Words Index MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 5: Introduction

    Programmable Logic Control Windows™ based PC environment. Parameter Number • ® Danfoss VLT Energy Box software, for energy Status Word calculation in HVAC applications. Table 1.1 Abbreviations MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 6: Technical Overview

    Services necessary to carry out certain building automation This publication contains information proprietary to functions. They are specified independently of Danfoss. By accepting and using this manual the user Conformance Class, though the implementation of some of agrees that the information contained herein is used solely for operating equipment from Danfoss or equipment from MG03O102 - Danfoss A/S ©...
  • Page 7 In no event shall Danfoss be liable for direct, indirect, special, incidental, or consequential damages arising out of the use, or the inability to use information contained in this manual, even if advised of the possibility of such damages.

  • Page 8: Safety

    High voltage can be present even when the warning LED indicator lights are off. Table 2.1 Discharge Time ® 1) Power ratings relate to NO, see VLT DriveMotor FCP 106 and FCM 106 Operating Instructions. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 9 10 mm , or Ensure 2 separate ground wires, both complying with the dimensioning rules. NOTICE HIGH ALTITUDES For installation at altitudes above 2000 m, contact Danfoss regarding PELV. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 10: Installation

    All wiring must comply with local and national information about the installation requirements. regulations regarding cross section and ambient temperature requirements. • Power connection wire recommendation: minimum 75 °C rated copper wire. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 11: Cabling

    • Screening: Copper-braided screen or braided screen and foil screen NOTICE Use of the same cable type throughout the entire segment is recommended to avoid impedance mismatch. Illustration 3.1 BACnet Interface MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 12: Network Connection

    For position of DIP switch, see Illustration 3.3. The When crossing is unavoidable, the BACnet cable must factory setting for the DIP switch is OFF. cross motor and brake resistor cables at an angle of 90°. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 13: Bus Cabling

    The single ground screen is specified in the ANSI/ASRAHE 135-2004 standard. The solution benefits by having only one ground connection of the screen, by doing so the risk of ground loop of equalising current is heavily reduced. In MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 14: System Configuration

    “admin” Table 4.4 BACnet Settings The device instance setting is dependent on the system. Each device connected to the BACnet MS/TP must have a unique device instance in the complete system. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 15: Bacnet Set-Up Example

    BV:1, which starts the motor if set to [1]. Setting AV:1 sets the speed reference of the frequency converter. The actual speed can be monitored via AV:3. See also chapter 5.1.1 Analog Input and Output Objects. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 16: Bacnet Objects

    1610 AV:7 AV:8 AV:9 AV:10 Reserved for VFD profile AV:11 AV:12 AV:13 AV:14 Motor AV:15 Thermal 1618 AV:16 AV:17 AV:18 Reserved for VFD profile AV:19 AV:20 Operating AV:21 Hours 1500 Hours MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 17 This value is not directly available in the frequency codes. converter. The value must be calculated as follows: Par . 16 − 52 AV # 4 = × 100% Par . 3 − 03 MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 18 Digital input Term 18 1660 BI:10..BI:15 are reserved for P1660/x Table 5.5 Binary Inputs Object_Name Present_Value Default name Parameter Bit number Writeable Cmd.able Timeout BO:4 Relay 1 BO:5 Relay 2 Table 5.6 Binary Outputs MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 19 BV:27 Reset Reset KWh BV:28 Counter 1506 Reset Running Hours BV:29 Counter 1507 Speed = BV:31 reference BV:32 Bus control BV:33 Running Ramp 1/ BV:34 Ramp 2 Table 5.7 Binary Values MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 20: Frequency Converter Feedback To Network

    To control the frequency converter via BACnet, set 8-50 Coasting Select to either [1] Bus or to [2] Logic AND and set 8-01 Control Site to[0] Digital and ctrl. word or [2] Control word only. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 21: Object/Property Support Matrix

    Present Value Status Flags Event State Reliability Out-of-Service Number of States State Text Units Priority Array Relinquish Default Polarity Active Text Inactive Text Table 5.10 Object/Property Support Matrix *For commandable values only MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 22: Parameters

    0.0 N/A 1 set-up TRUE Uint32 8-88 Reset FC port Diagnostics [0] Do not reset 1 set-up TRUE Uint8 8-9* Bus Feedback 8-94 Bus Feedback 1 0.0 N/A All set-ups TRUE Int16 MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 23: Parameter Description

    0.01 s [ 0.0010 - 0.5 Specify the minimum delay time between receiving a request and Select the protocol for the integrated RS-485 transmitting a response. This is used for port. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 24 Option: Function: Activates Quick Stop via the serial communi- Select control of the frequency converter reverse cation port. function via the terminals (digital input) and/or via the serial communication port. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 25 [0 - 65536 ] This parameter shows the number of valid Logic Activates Preset Reference selection via the telegrams detected on the bus. serial communication port, AND additionally via one of the digital inputs. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 26 Write a feedback to this parameter via the 32767 ] serial communication port. This parameter must be selected in 20-00 Feedback 1 Source as a feedback source. (Hex-value 4000 h corresponds to 100% feedback/range is ±200%) MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 27: Troubleshooting

    [1] TRUE means alarm. Word to 16-95 Ext. Status Word 2. For more information on ® the individual alarms and warnings, refer to the VLT DriveMotor FCP 106 and FCM 106 Programming Guide. MG03O102 - Danfoss A/S © 12/2013. All rights reserved.

  • Page 28: Alarm Words

    Reserved 10000000 DESAT Earth fault 02000000 Current Limit 20000000 Drive initialised 04000000 Reserved 80000000 08000000 Reserved 10000000 Reserved Table 7.1 16-90 Alarm Word 20000000 Reserved Table 7.2 16-91 Alarm Word 2 MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 29 Reserved 10000000 10000000 Reserved 20000000 20000000 Back EMF too high 40000000 Not used 40000000 Reserved 80000000 Not used 80000000 Reserved Table 7.3 16-92 Warning Word Table 7.4 16-93 Warning Word 2 MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 30 PELV......................7 DC current....................8 PICS......................4 DeviceNet....................3 Power connection................. 8 Digital/bus settings................12 Profibus...................... 3 Discharge time..................6 Protocol....................21 Electrical ratings..................8 Qualified personnel................6 EMC Precautions.................. 11 MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 31 DriveMotor FCP 106 & FCM 106 BACnet Operating Instructions Set-up example..................13 Single ground screen................. 11 Technical Overview................4 Timeout function................. 21 Unintended start..................6 Warning Words..................27 Windmilling....................7 Wire sizes....................8 MG03O102 - Danfoss A/S © 12/2013. All rights reserved.
  • Page 32 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
