Installation
1
For details of compatible read/write heads, see chapter 4.1.1 and of compatible
connecting cables, see chapter 4.2.1.

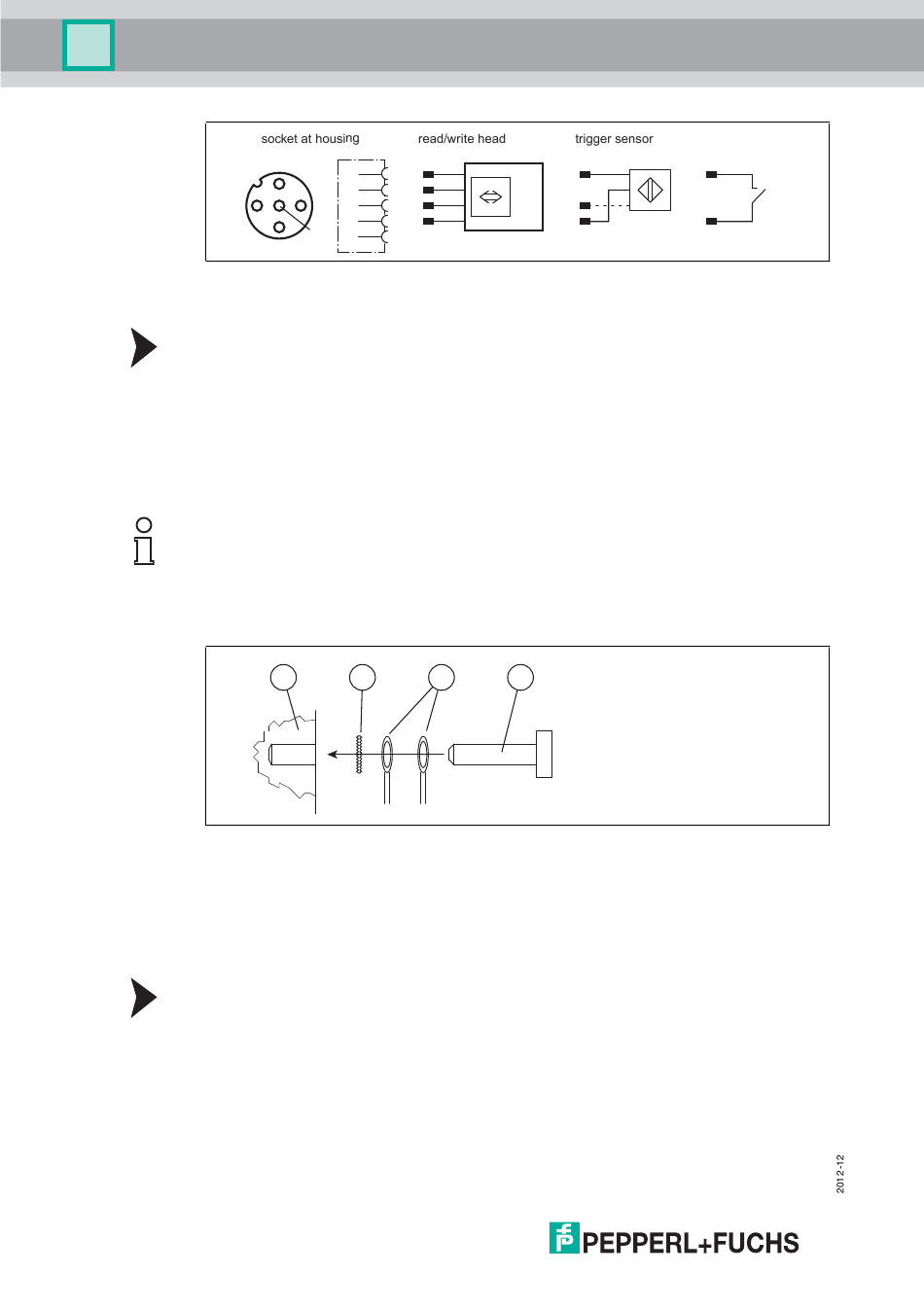

Connecting read/write heads
Connect the read/write heads or the trigger sensor with compatible connecting
cable to the top of the housing via the M12 connector.
5.4.3

Ground connection

Connect the IDENTControl Compact unit to ground via a screw on the right under
the housing.
Note!
In order to guarantee safe grounding, mount the serrated washer between the
crimp connector and the housing.
Use a ground conductor lead with a cross-section of at least 4 mm
1
2
3
4
Connecting the IDENTControl Compact to ground
Screw the ground conductor to the housing with a crimp connector.
5.4.4

Connecting the RS 232 diagnostic interface

The maximum length of the cable between the control unit and the higher level
computer or the controller depends on the transfer rate and the noise level. We
recommend the guide value of a 15 m maximum cable length on the RS 232
diagnostic interface.
The transfer rate (baud rate) has a preset configuration at 38400 bit/s.
18
2
1
2
3
3
4
5
5
4
1 2
Housing
Serrated lock washer
Crimp connector
Lock screw
+
A signal
-
B
3 4
trigger switch
+
-
2
.
