Installation
The metal enclosure of the IDENTControl Compact and the metal enclosure of the
R/W heads complete the consistent shielding concept.
You must establish a low resistance and low inductance connection between the
shields and ground so that the shielding is not interrupted through the metal
enclosure. The complete electronics system and all routed cables are therefore
located within a Faraday cage.
5.3

Mounting

If you would like to the mount the IDENTControl Compact to a DIN mounting rail,
we recommend using mounting aid ICZ-MH05-SACB-8.
Note!
The rotary switches used to select the device address are located on the
underside of the IDENTControl Compact. These rotary switches are no longer
accessible once the IDENTControl Compact is installed.
Set the rotary switches before mounting the IDENTControl Compact (see chapter
6.2.1).
5.4

Device connection

Electrical connection using plug connectors makes installation simple.
5.4.1

Power supply

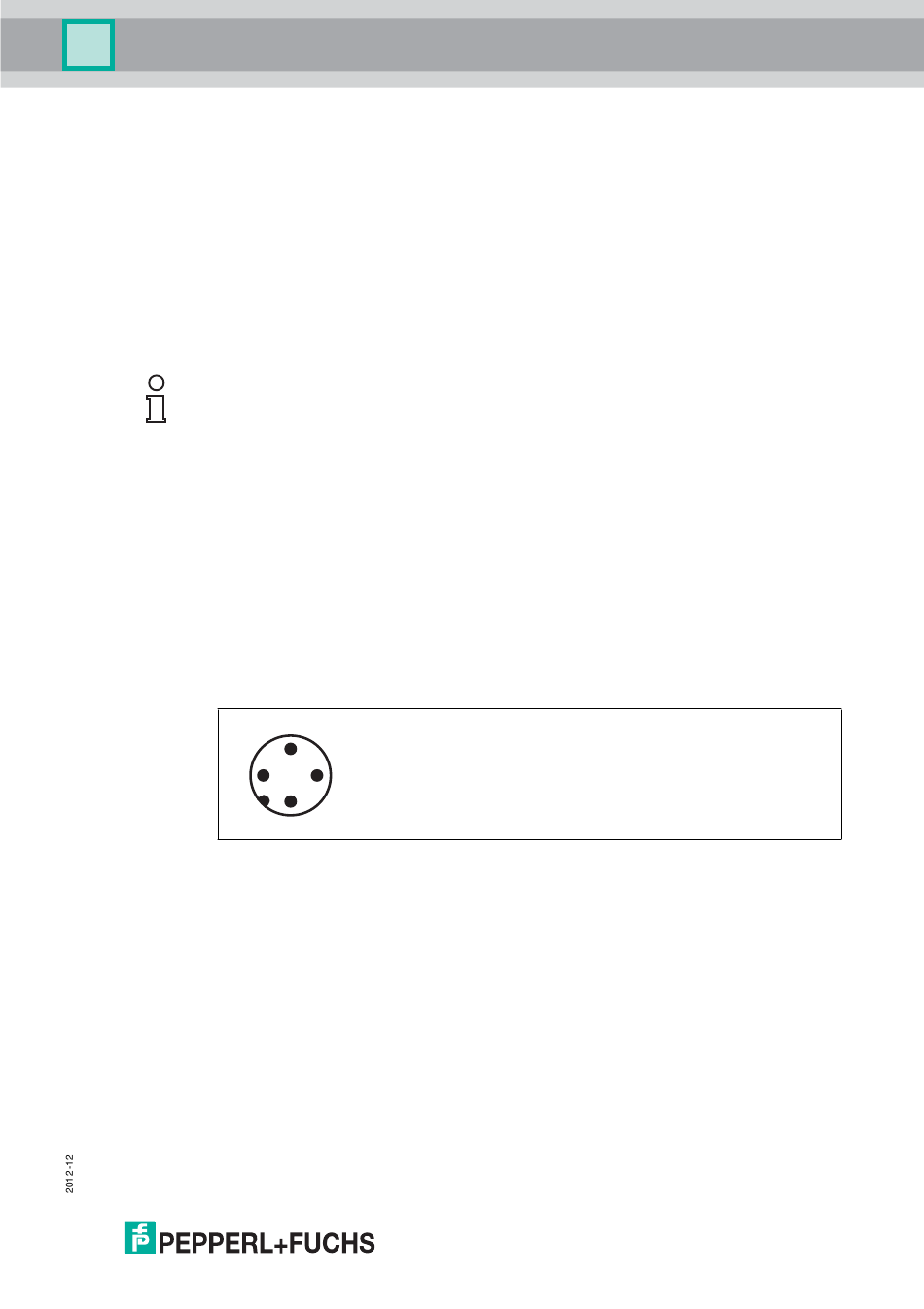

Connect the power supply using an M12 connector. A plug with the following pin
assignment is located on the housing:
1
1 + 24 V
2 NC
3 GND
4 NC
Compatible connecting cable see chapter 4.2.2
5.4.2

Read/Write Head and Trigger Sensors

You can connect a maximum of two read/write heads (125 kHz or 13.56 MHz) or
read/write heads with electromagnetic coupling (UHF with 868 MHz) to the
IDENTControl Compact.
You can connect a trigger sensor, instead of a read/write head, to sockets 1 and 2.
You can assign the trigger sensor to a read/write head. The trigger sensor must be
PNP.
