Commands
Write command single without split data, RYn4 as confirmation

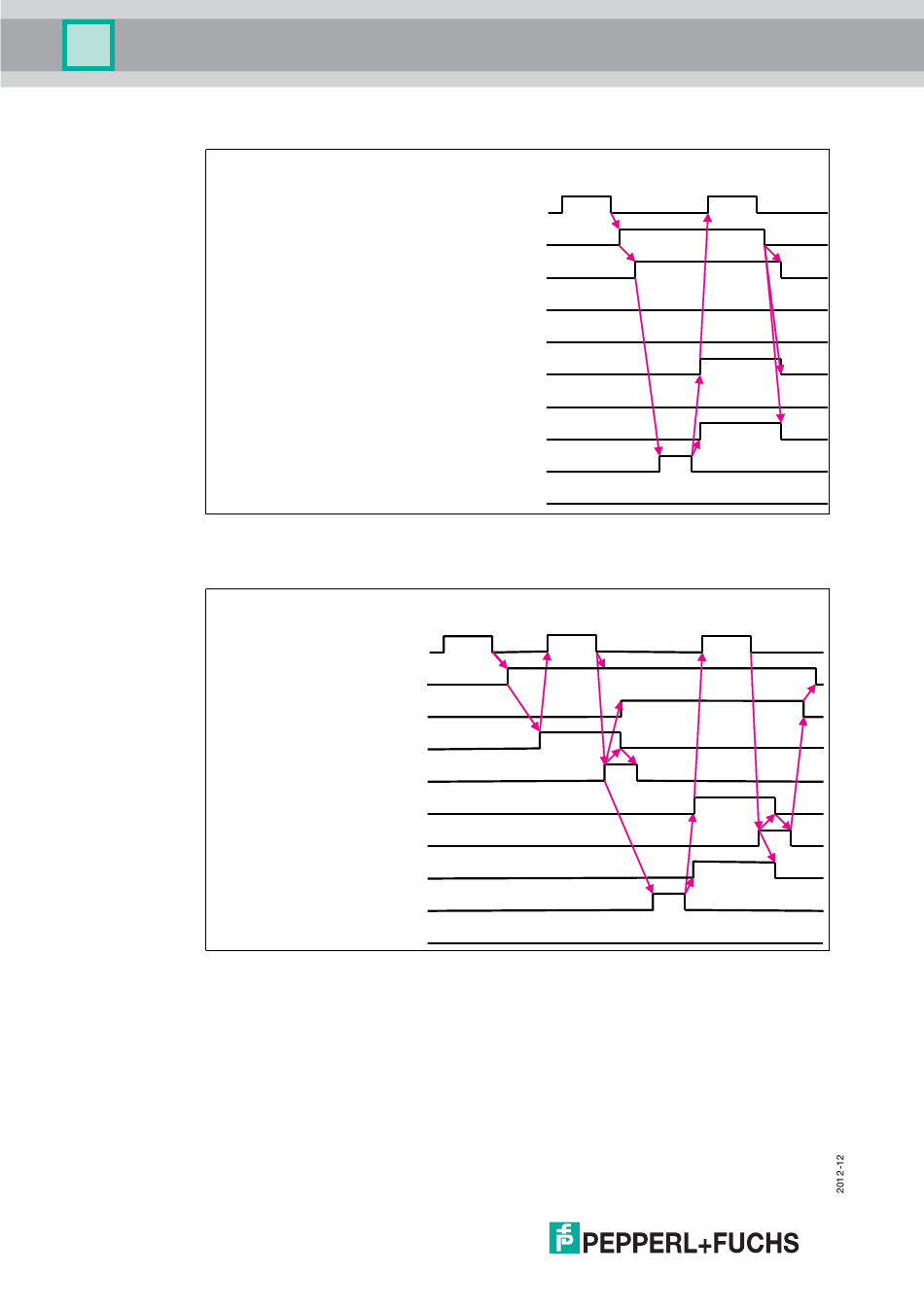

Figure 7.9
Write command single with split data
ID command execution request (RYn4)
Figure 7.10
42
ID command execution request (RYn4)
ID division data request (RXn7)
ID division data complete (RYn7)
ID command complete (RXn4)
ID in zone contact (RXn2)
ID error occurrence (RXn5)
writing cmd and data
part 1 to RWw
PLC program
ID BUSY (RXn3)
ID division data request (RXn7)
ID division data complete (RYn7)
ID command complete (RXn4)
ID data ack (RYn3)
ID in zone contact (RXn2)
Tag communication
ID error occurrence (RXn5)
writing cmd and data
to RWw
PLC program
ID BUSY (RXn3)
ID data ack (RYn3)
Tag communication
writing data
part 2 to RWw
reading response
from RWr
reading response
from RWr
