IC-KP2-2HB18-2V1
Installation
The device operates with the following parameters (permanent):
8 data bits
■
1 start bit
■
1 stop bit
■
No parity
■
Connect the RS 232 interface with the M8 socket. You must place the cable shield
on the thread in the connector plug.

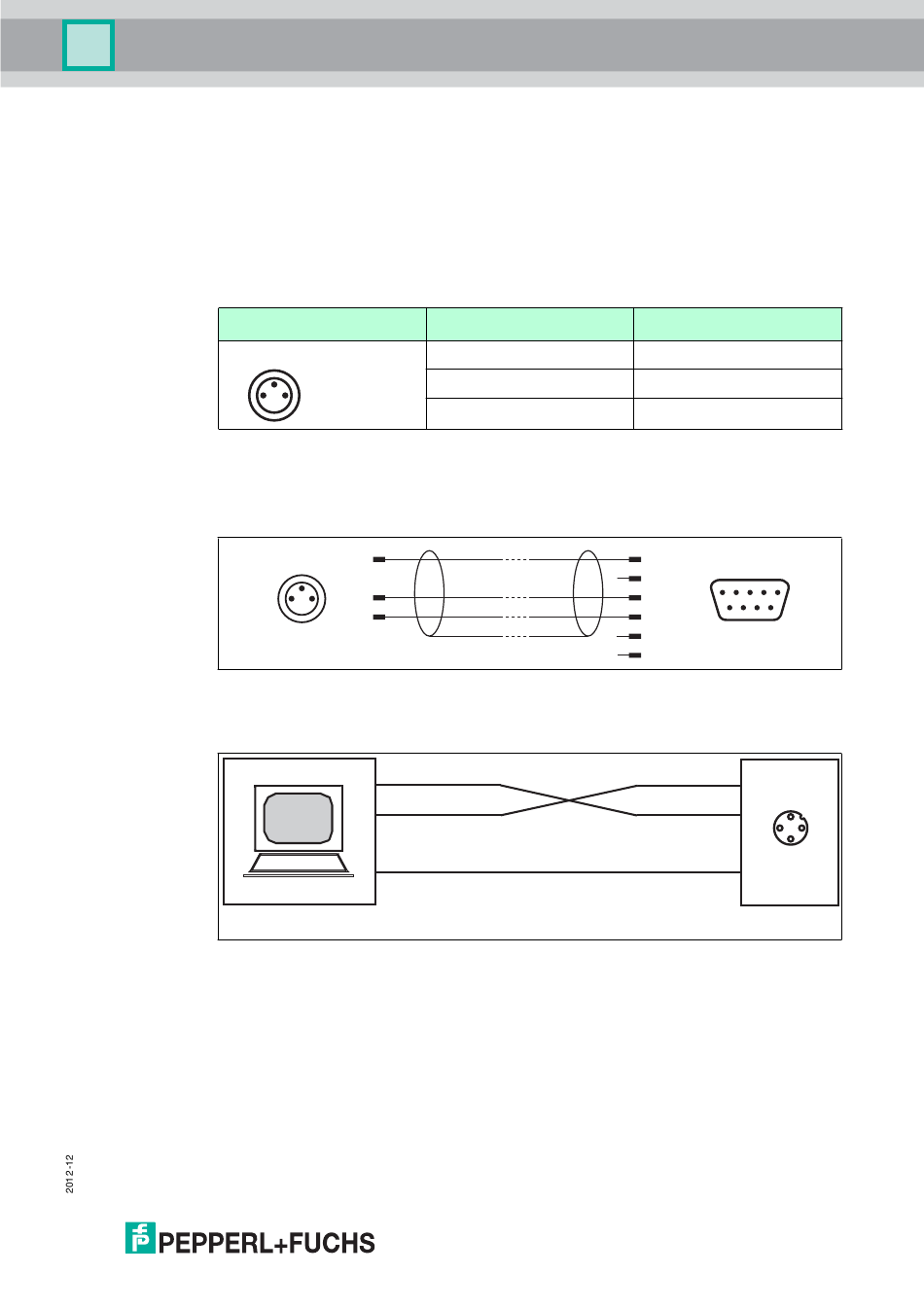

Connector assignment
1
Use the adapter V3S-GM-0.15M-PUR-SUBD to connect the IDENTControl
Compact to the RS 232 diagnostic interface.
Pin assignment of the adapter for the RS 232 diagnostic interface
1
Figure 5.2
Connection example RS 232
Host-PC
5.4.5
CC-Link connection guide
The IC-KP2-2HB18-2V1 control interface is a device that assigns 4 stations to
CC-Link.
The RWw and RWr areas of the bus protocol can be used to transfer the data of
an individual channel or both channels in parallel. The RX and RY areas are
always used to transfer the data of both channels in parallel.
Pin
1
4
3
3
4
1
4
3
3
4
RxD
TxD
GND
Signal
TXD
RXD
GND
3
1
5
1
2
5
6
9
4
6..9
RxD
TxD
1
4
2
3
GND
IDENTControl
19
