IC-KP2-2HB18-2V1
Technical specifications
8
Technical specifications
8.1

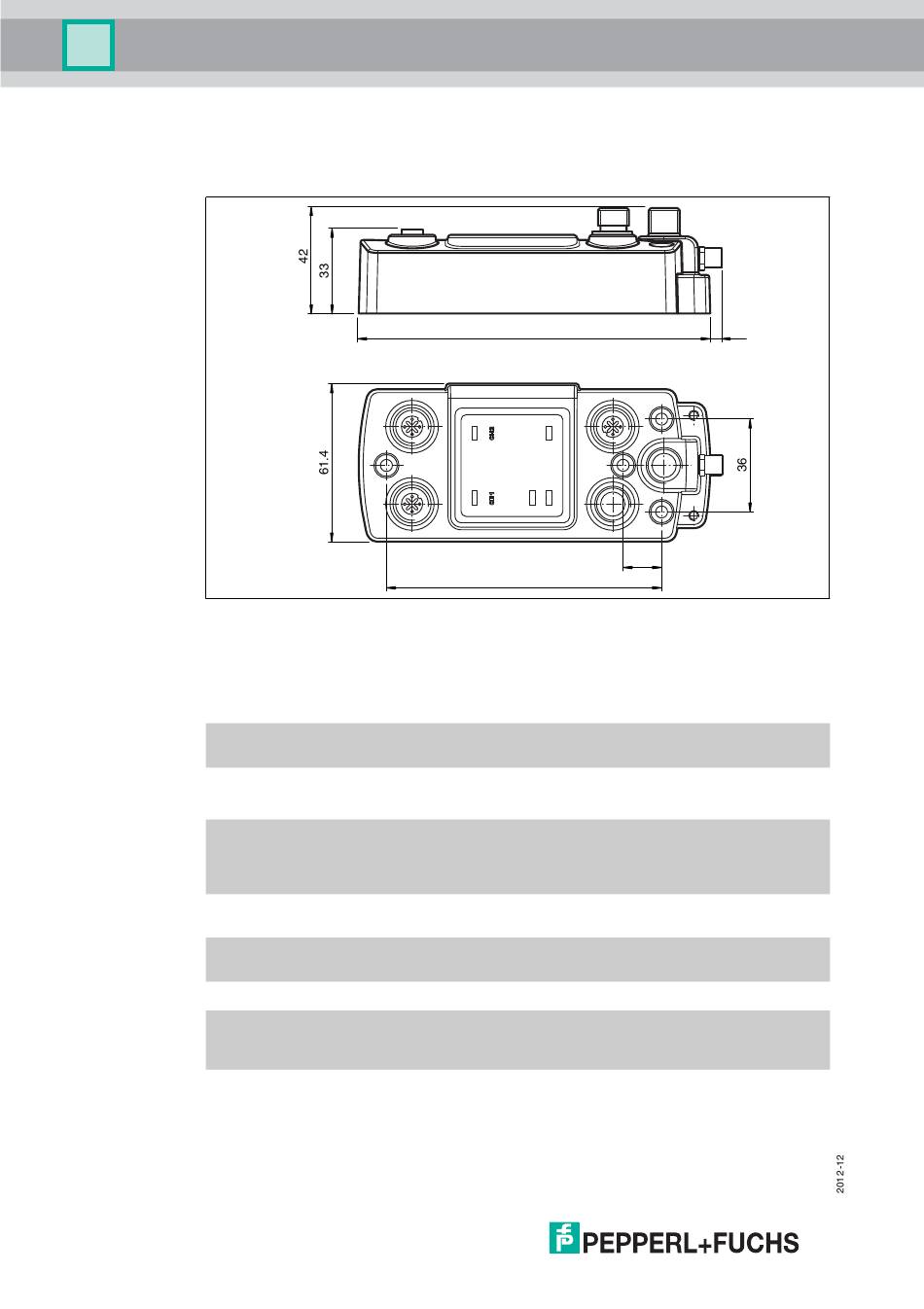

Dimensions
Figure 8.1
8.2
Technical Data
General specifications
Number of read/write
heads
Indicators/operating means
LEDs 1, 2
LEDs CH1, CH2
LED PWR/ERR
LED L RUN
LED L ERR
Rotary switch
84
136.6
107
max. 2
alternatively 1 read/write head and 1 trigger sensor
Status indicator for read/write heads
green: command at read/write head active
yellow: approx. 1 second long, if command was successfully
executed
green: read head detected
red: Configuration error
green: power on
red: Hardware fault
green: on, data communication active
red: on, invalid rotary switch setting or data transfer failure
red: flashing, rotary switch setting changed since last
switched on
Address setting 01 ... 64 (decimal)
Station no.: 0 ... 6 (x10)
Station no.: 0 ... 9 (x1)
Baud rate setting: 0 ... 4
5
15
