IC-KP2-2HB18-2V1
Product Description
Accessories
20 m long (straight female, angled male)
Field attachable female connector, straight,
shielded
Field attachable male connector, straight, shielded
Field attachable female connector, angled, shielded
Field attachable male connector, angled, shielded
Dummy plug M12x1
4.2.2

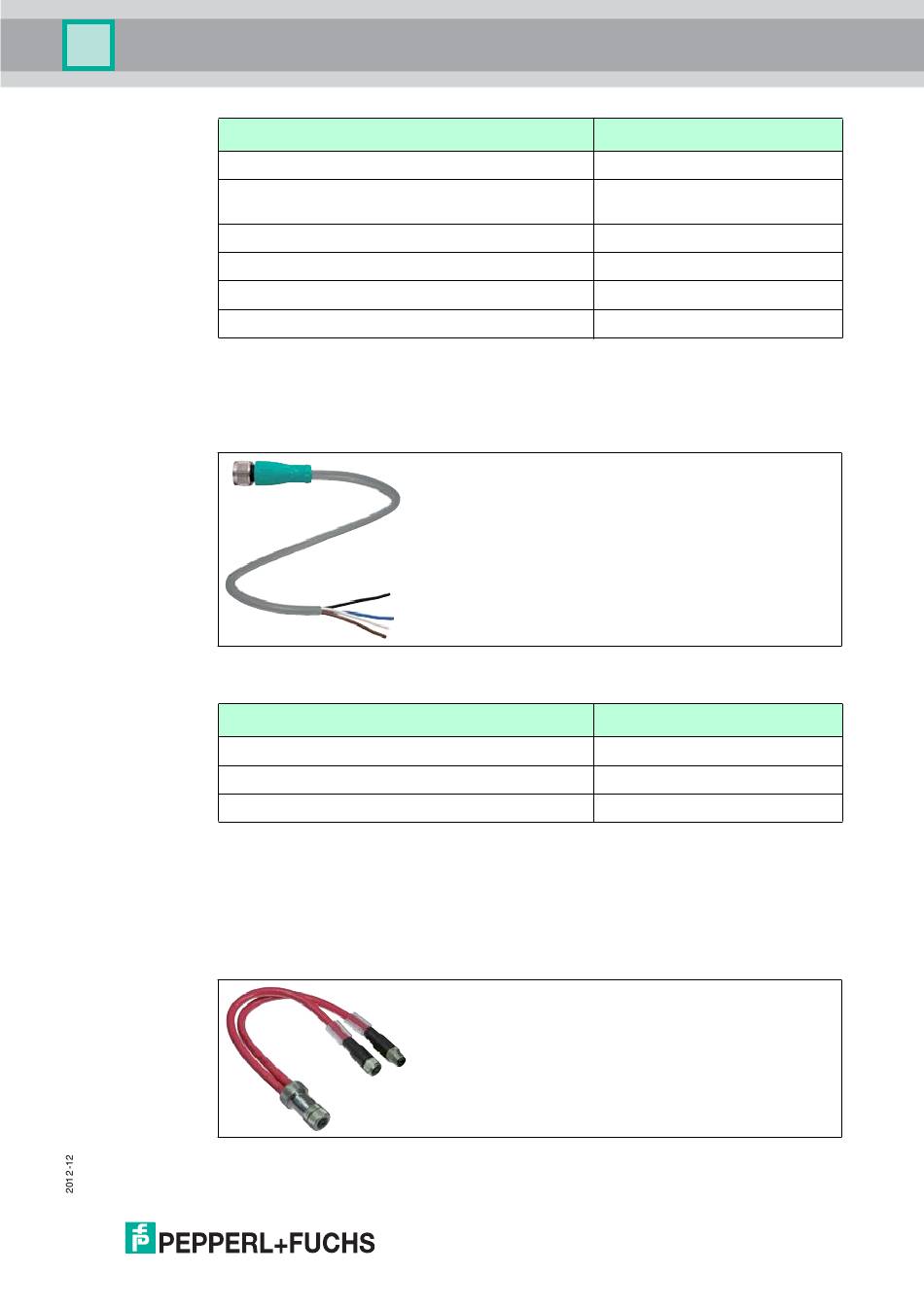

Cable connectors for the power supply

Compatible M12 sockets with an open cable end for connecting the
IDENTControl Compact to a power supply are available in different lengths.
Figure 4.3
Accessories
Length 2 m (straight socket)
Length 5 m (straight socket)
Length 10 m (straight socket)
4.2.3

Connection cable to the CC-Link interface

The IDENTControl Compact has two M12 connectors. It is connected to the bus
via standard CC-Link cable with M12 connectors. If you want to exchange the
control unit without affecting the bus during operation (hot-plug capability),
connect the control unit via a Y-cable to CC-Link IN.
Figure 4.4
Description
V1-G-20M-PUR-ABG-V1-W
V1-G-ABG-PG9
V1S-G-ABG-PG9
V1-W-ABG-PG9
V1S-W-ABG-PG9
VAZ-V1-B
Model number
V1-G-2M-PUR
V1-G-5M-PUR
V1-G-10M-PUR
11
