IC-KP2-2HB18-2V1
Commands
Initial data processing

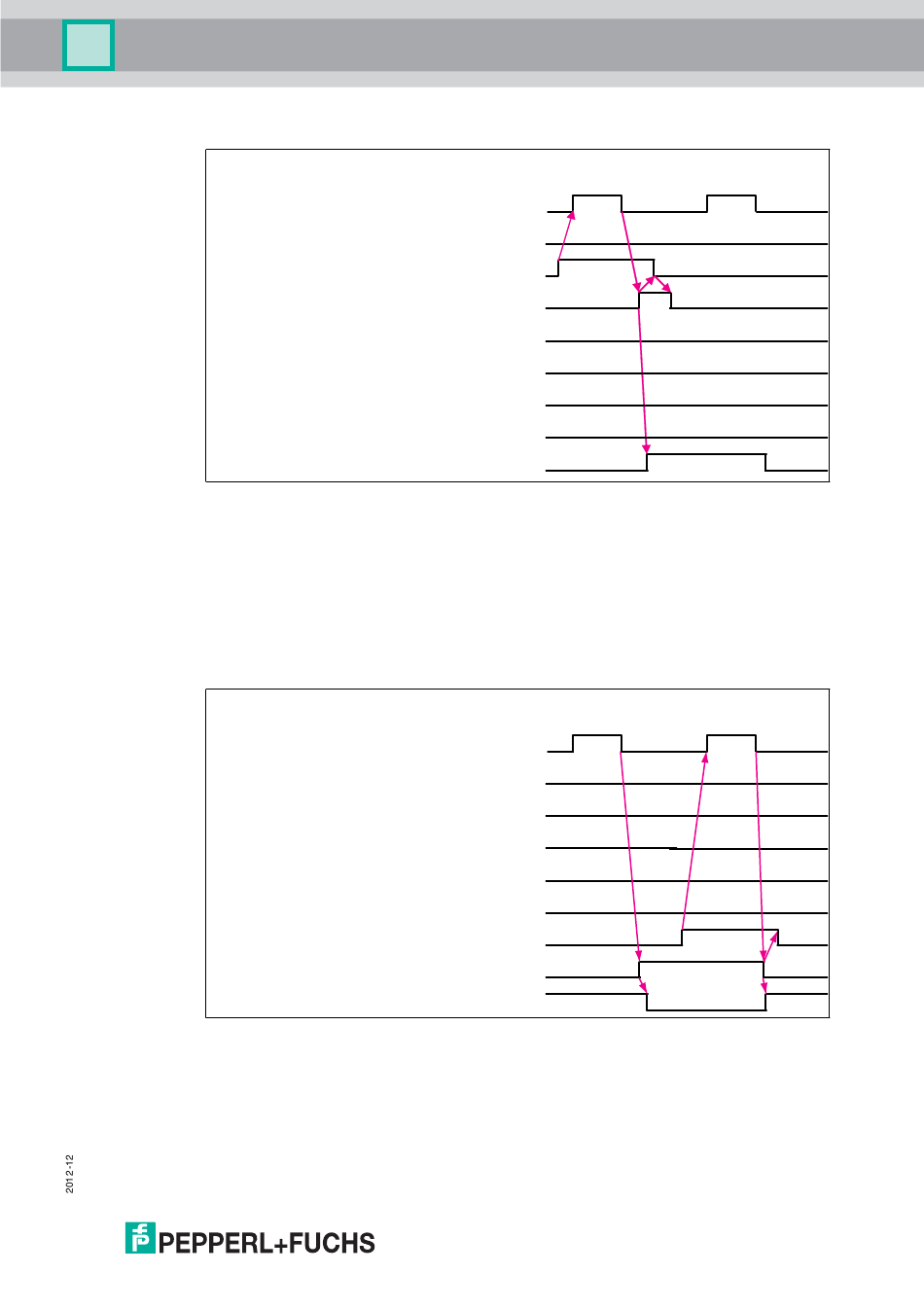

Figure 7.1
Initial data setting
RX(m+n)9/RY(m+n)9: initial data setting signal request/termination
With this signal, the user application program requests initialization of the slave.
Note: linked with RX(m+n)B (Remote Monitor ready).
Initial data setting
Figure 7.2
Error status flag
RX(m+n)A/RY(m+n)A: error status flag error status signal/error reset
Notification via/reset of an error, with exception of the watchdog timer of the slave.
Note: The error status flag deletes the error and removes the error value from
the corresponding memory.
PLC program
Initial setting value RYn0
Initial data processing request (RX(m+n)8)
Initial data processing complete (RY(m+n)8)
Error status flag (RX(m+n)A)
Error reset request (RY(m+n)A)
Initial data setting complete (RX(m+n)9)
Initial data setting request (RY(m+n)9)
Remote READY (RX(m+n)B)
PLC program
Initial setting value RYn0
Initial data processing request (RX(m+n)8)
Initial data processing complete (RY(m+n)8)
Error status flag (RX(m+n)A)
Error reset request (RY(m+n)A)
Initial data setting complete (RX(m+n)9)
Initial data setting request (RY(m+n)9)
Remote READY (RX(m+n)B)
writing cmd reading response
to RWw from RWr
writing cmd reading response
to RWw from RWr
