IC-KP2-2HB18-2V1
Installation
Note!
To be able to use the hot-plug compatibility of the CC-Link bus, theCC-Link IN
must be connected to the CC-Link bus via the Y-splitter cordset. The baud rate is
not restricted by this.

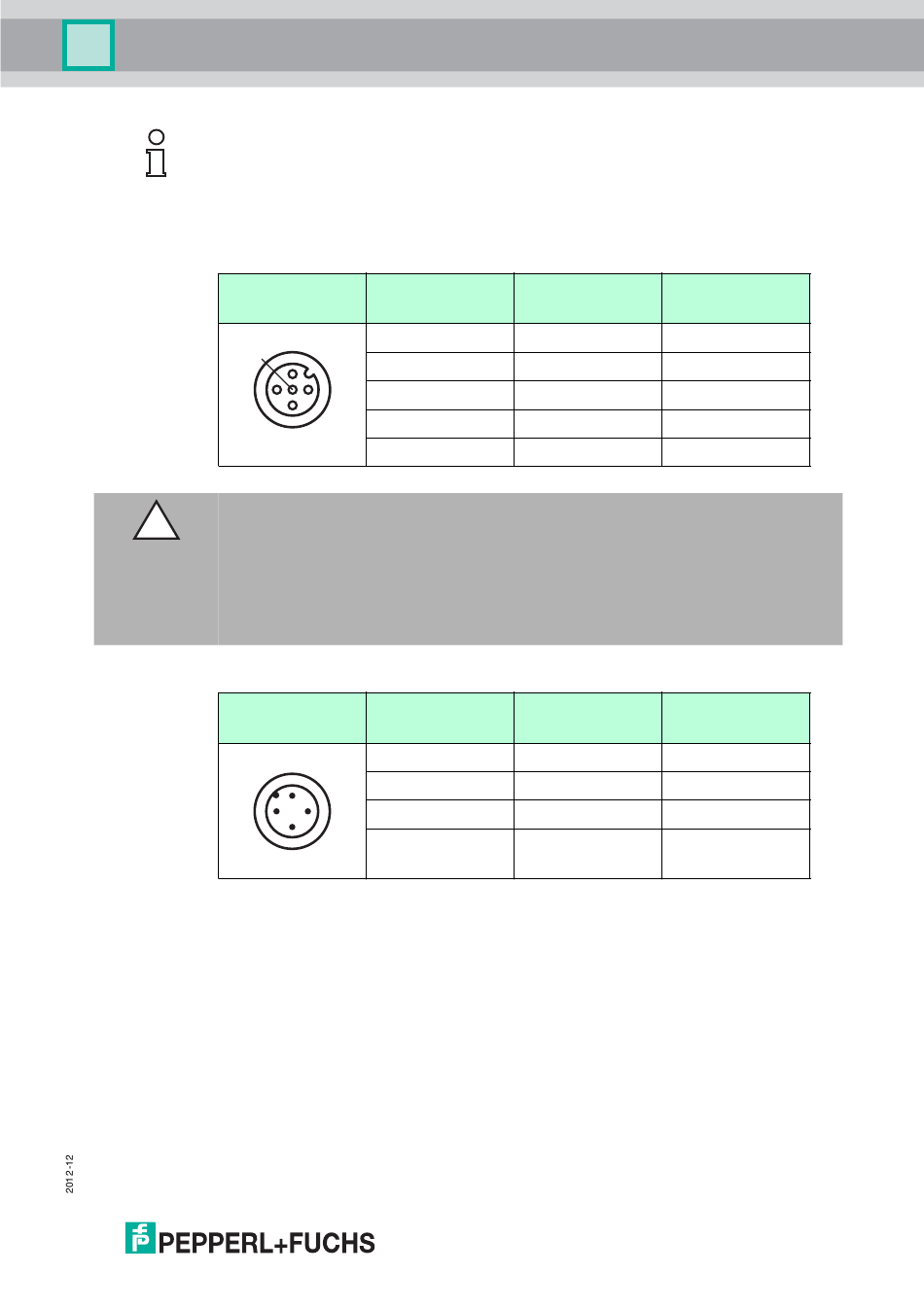

CC-Link OUT: M12 socket, A-coded
Connector
assignment
1
5
4
3
Caution!
Damage to the control interface and connected slaves
It is possible to swap the current and CC-Link IN socket as well as the channel
and CC-Link OUT connection. If the current connection is connected to the CC-
Link IN socket, the IC-KP2-2HB18-2V1 control unit and all further slaves that are
linked to CC-Link OUT will be damaged.
Terminator
Connector
assignment
1
2
3
For Y-splitter cordset and terminator see chapter 4.2.3.
Pin
1
2
3
2
4
5
Pin
1
2
3
4
4
Signal
Description
SLD
Screen
DB (white)
Data B
DG (yellow)
Grounding
DA (blue)
Data A
NC
Not used
Signal
Description
NC
Not used
DB
Data B
NC
Not used
DA
Data A
21
