IC-KP2-2HB18-2V1
Commands
Error status flag

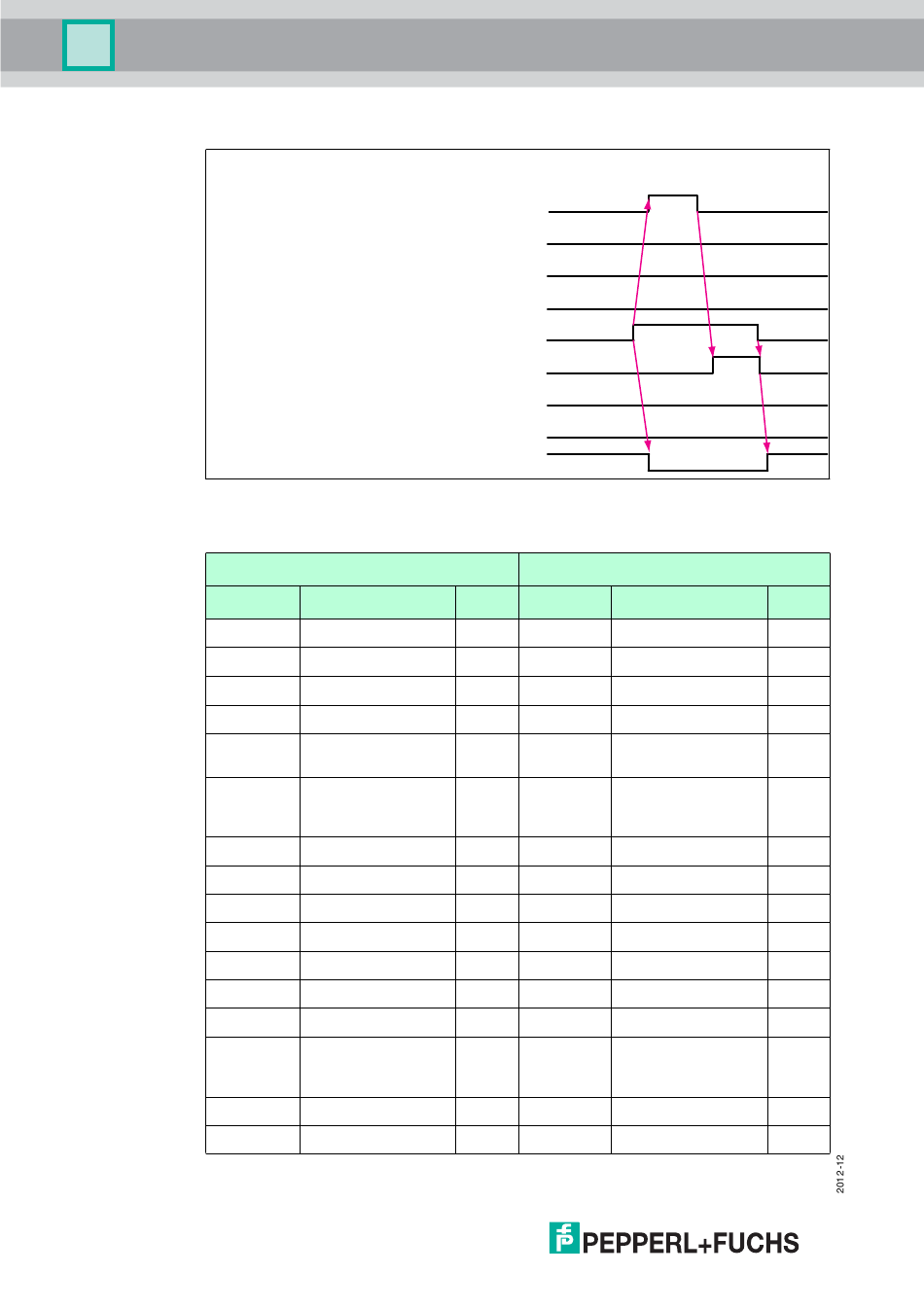

Figure 7.3
Register RWw and RWr Initial Setting
Slave -> master
Address
RWrn
RWrn+1
RWrn+2
RWrn+3
RWrn+4
RWrn+5
RWrn+6
RWrn+7
RWrn+8
RWrn+9
RWrn+A
RWrn+B
RWrn+C
RWrn+D
RWrn+E
RWrn+F
n:
<Status>
38
PLC program
Initial setting value RYn0
Initial data processing request (RX(m+n)8)
Initial data processing complete (RY(m+n)8)
Error status flag (RX(m+n)A)
Error reset request (RY(m+n)A)
Initial data setting complete (RX(m+n)9)
Initial data setting request (RY(m+n)9)
Remote READY (RX(m+n)B)
Description
Default
Cannot be used
0
<Status> for MM
<Status> for CT1
<Status> for CT2
Address in master module, specified by the assignment of the stations
Corresponds to <Status> in responses to commands MM and CT.
reading error value
from RWr
Master -> slave
Address
Description
RWwn
Cannot be used
RWwn+1
Cannot be used
RWwn+2
Cannot be used
RWwn+3
Cannot be used
RWwn+4
Multiplexed mode
0 = off, 1 = on
RWwn+5
CH1 tag type
<T agT ype> (low byte)
<T agT ype> (high byte)
RWwn+6
RWwn+7
RWwn+8
Cannot be used
RWwn+9
Cannot be used
RWwn+A
Cannot be used
RWwn+B
Cannot be used
RWwn+C
Cannot be used
RWwn+D
CH2 tag type
<T agT ype> (low byte)
<T agT ype> (high byte)
RWwn+E
RWwn+F
Default
