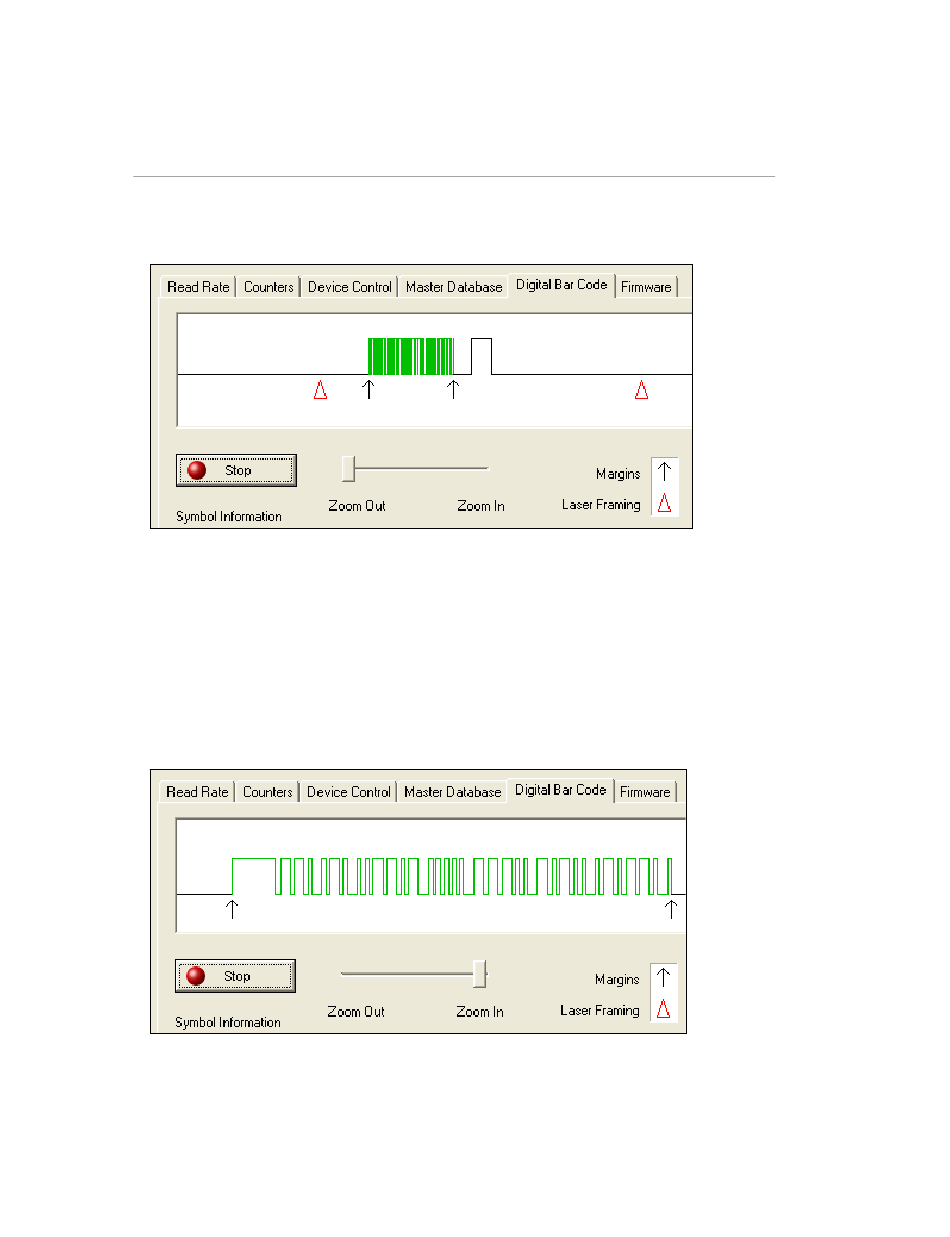

When you click the Digital Bar Code
of the symbol in front of the reader will appear.
This routine is useful for conveying a sense of the symbol's readability and graphically
indicating bad or unreadable portions of symbols, extraneous "noise," etc. A green
waveform indicates a decoded symbol; a red waveform indicates an undecoded symbol
or other object.
The read triangles represent the width of the scan beam relative to the symbol. The
upward pointing arrows indicated the symbol's margin.
Zoom In, Zoom Out
You can zoom in by sliding the
left to locate your symbol, but the results will be striking.
