Microscan MS-860 User Manual page 231

Master Symbol Database
Enter Master Symbol Data
Definition: Allows you to enter master symbol data for a specific master symbol
index number (1 to 10), provided the index number is not larger than the
number of symbols enabled by the Number Of Master Symbols (see
page 15-9). For example, if Number Of Master Symbols is set to 2,
you will not be able to enter data for symbols 3 through 10.
Serial Cmd: <K231,master symbol number,master symbol
Default: 1, (blank)
Options: 1 to 10, any combination of ASCII text up to the maximum indicated in
"Maximum Characters for Master Symbol Database"
For example, to enter data for master symbol 9, after making certain that
Number Of Master Symbols is enabled for 9 or more symbols, send
<K231,9,data>.
To enter master symbol data:

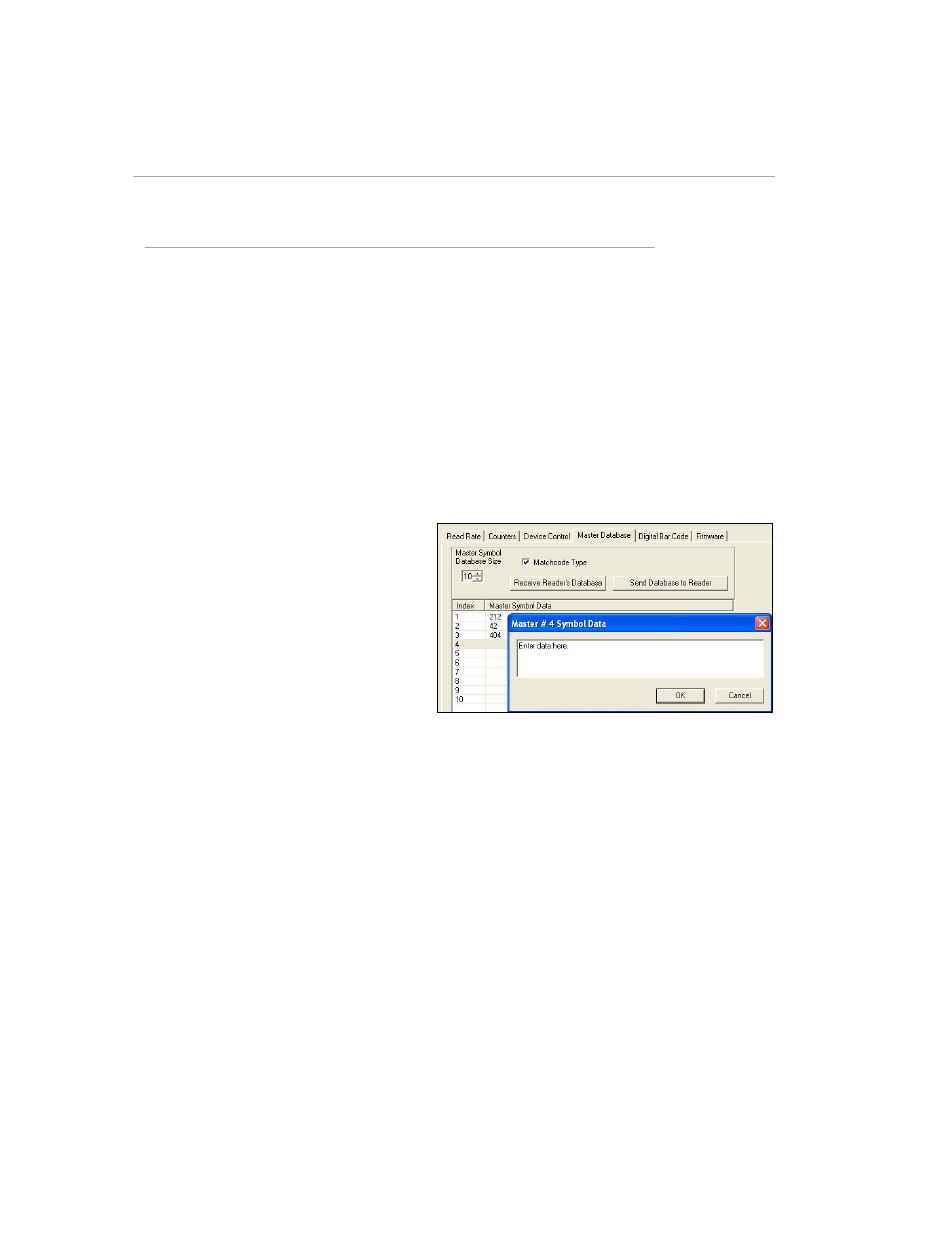

1. Double-click on each index
number you want to setup and
copy or type in your data in the
popup data entry box.
2. Click on the Send Database to
Reader button.
Note: You can also click
Reader's Database to enter the
reader's current database settings.
Caution: Since the total number of
characters available for the master
symbol database is 128, changes to
the Number Of Master Symbols will re-allocate the number of characters available for
each master symbol and could cause existing master symbols to be deleted (except master
symbol #1 unless it also exceeds the size limitation).
The "Maximum Characters for Master Symbol Database"
the maximum number of characters available to each symbol according to the number of
master symbols defined, from 1 through 10. See
15-9.
