Counters

Counters

Counter commands can be a numeric value from 00000 to 65,535. After reaching the
maximum numeric limit of 65,535, the counter will automatically roll-over and start
counting again at 00000 and report any errors. To obtain the cumulative total of counts
after the roll-over has occurred, add 65,536 per each roll-over (the reader does not
keep track of the number of roll-overs) to the current count.
Note: All counter values will be lost if power is re-cycled to the reader or the reader
receives a reset or save command.

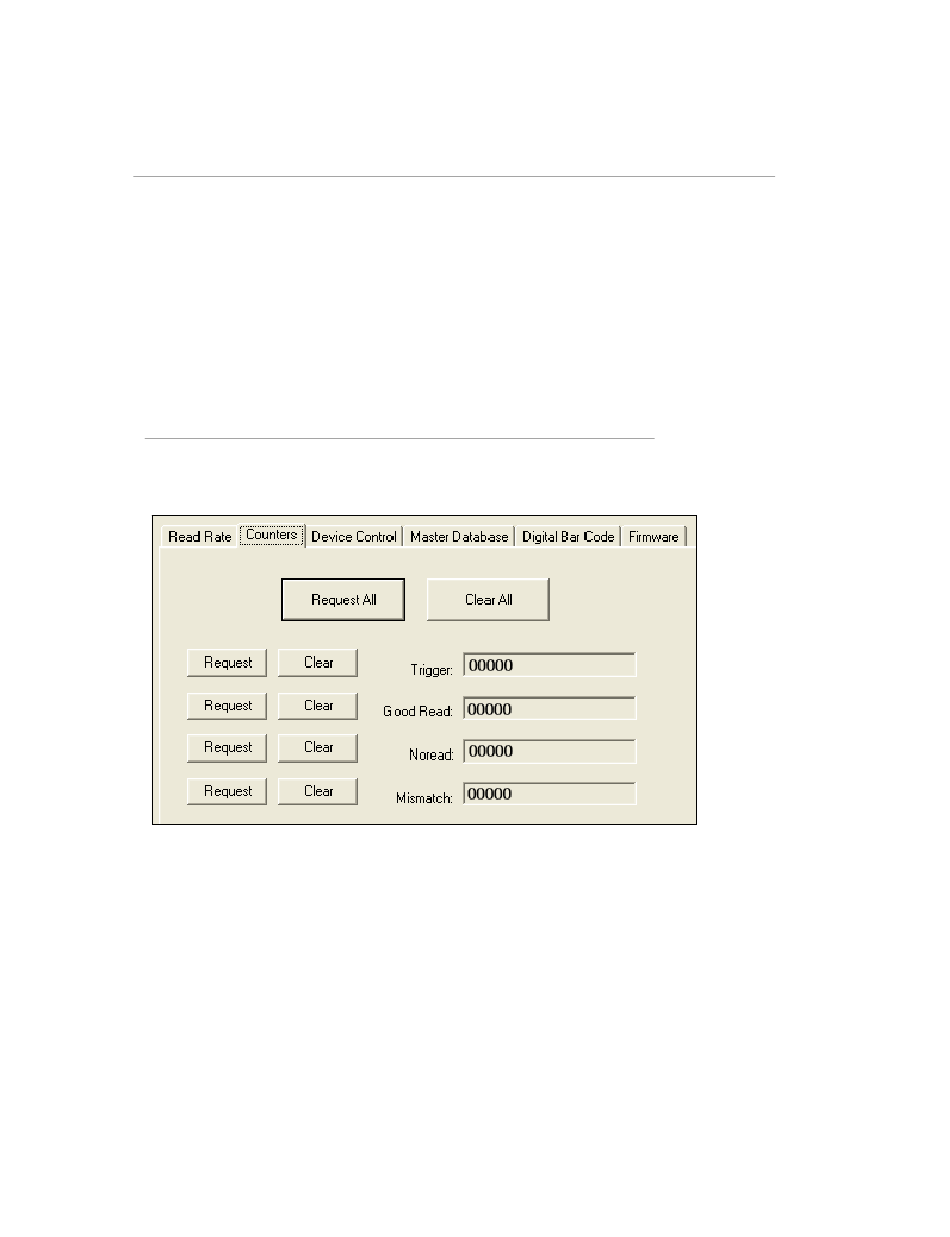

Counters by ESP
You can access Counters from the Utilities menu.
Right-click the appropriate counter option and select
Clear to set counter to zero. Or, right-click on
15-4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Request to display count or
Counters and select Request
MS-860 Industrial Raster Reader User's Manual
All.
