Ordered Output by ESP
• Click on the Ordered Output tab.
Use this option
to specify the
symbol type.
Number of Filters.
Set
• Select the Number of Filters (1 to 6).
• Double-click on the filter number you wish
to define.

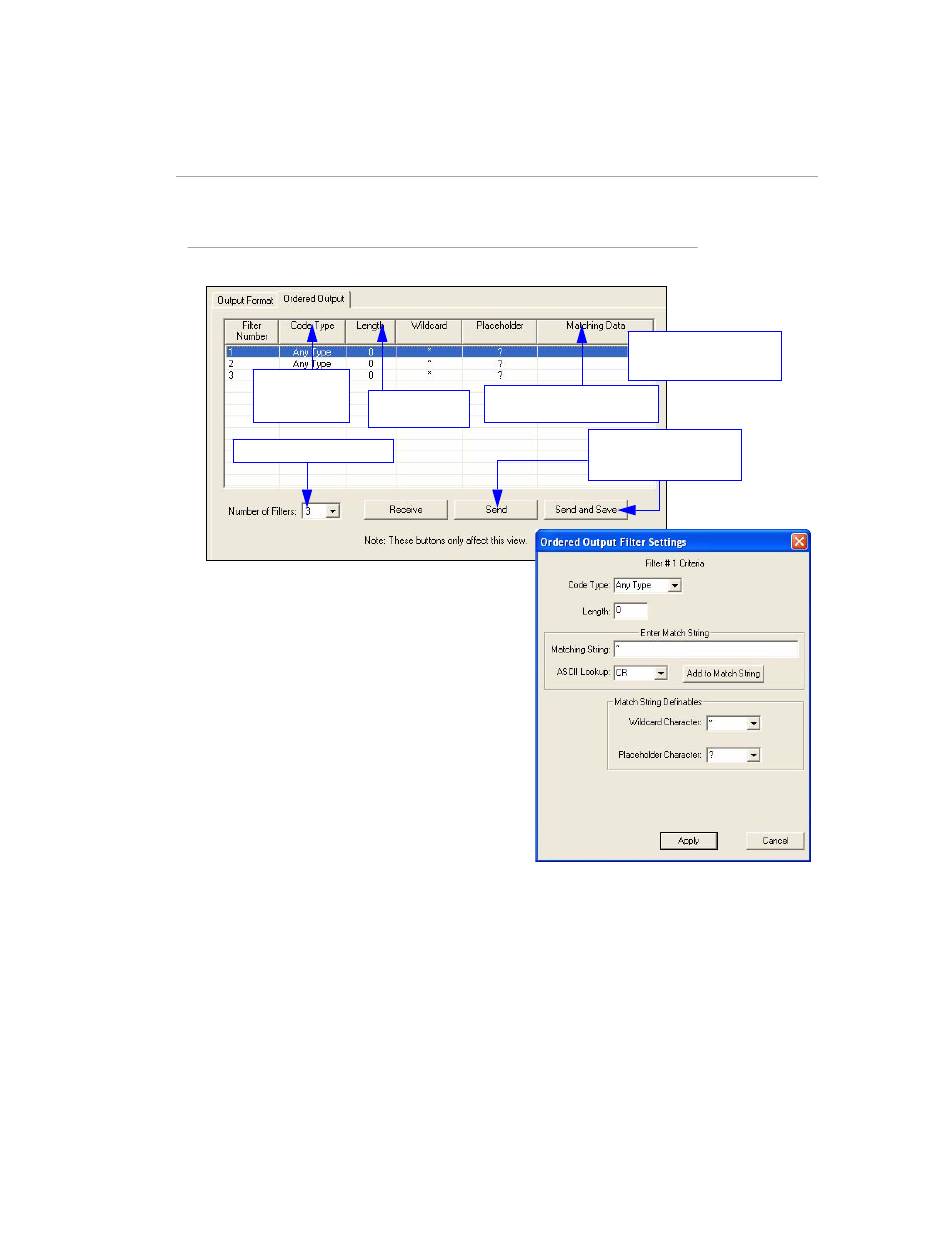

• In the Ordered Output Filter Settings
you can select from the fields shown and
add text to be matched, wild cards, etc.
• Click Apply to add to the Ordered Output
table.
• Repeat steps 3 and 4 for each additional
filter.
• Click Send to save to current memory or
Send and Save to save for power-on.
