Goodrive350 series high-performance multi-function inverter

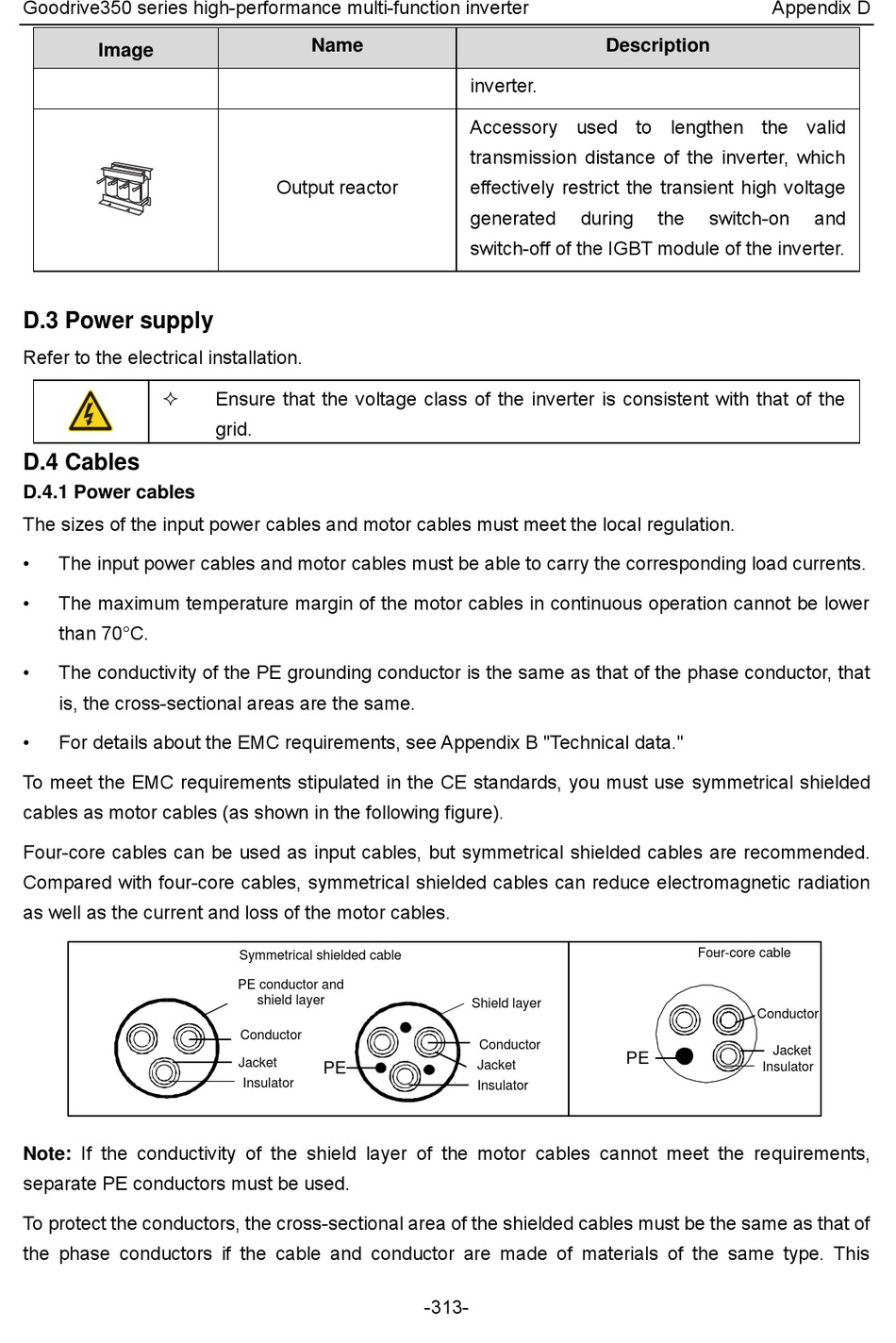

D.3 Power supply
Refer to the electrical installation.

D.4 Cables
D.4.1 Power cables
The sizes of the input power cables and motor cables must meet the local regulation.
The input power cables and motor cables must be able to carry the corresponding load currents.
•
The maximum temperature margin of the motor cables in continuous operation cannot be lower
•
than 70°C.
The conductivity of the PE grounding conductor is the same as that of the phase conductor, that
•
is, the cross-sectional areas are the same.
For details about the EMC requirements, see Appendix B "Technical data."
•
To meet the EMC requirements stipulated in the CE standards, you must use symmetrical shielded
cables as motor cables (as shown in the following figure).
Four-core cables can be used as input cables, but symmetrical shielded cables are recommended.
Compared with four-core cables, symmetrical shielded cables can reduce electromagnetic radiation
as well as the current and loss of the motor cables.
Note: If the conductivity of the shield layer of the motor cables cannot meet the requirements,
separate PE conductors must be used.
To protect the conductors, the cross-sectional area of the shielded cables must be the same as that of
the phase conductors if the cable and conductor are made of materials of the same type. This
Name
Output reactor
Ensure that the voltage class of the inverter is consistent with that of the
grid.
Symmetrical shielded cable
PE conductor and
shield layer
Conductor
Jacket
PE
Insulator
inverter.
Accessory used to lengthen the valid
transmission distance of the inverter, which
effectively restrict the transient high voltage
generated during
switch-off of the IGBT module of the inverter.
Shield layer
Conductor
Jacket
Insulator
-313-
Appendix D
Description
the switch-on
-
Four-core cable
Conductor
Jacket
PE
Insulator
and
