Appendix C Dimension drawings

C.1 What this chapter contains
This chapter describes the dimension drawings of Goodrive350 series inverters. The dimension unit
used in the drawings is mm.
C.2 Keypad structure
C.2.1 Structure diagram
Panel
Keypad
28.5
2.5
71.3
16.8
2- ø4
19 20.4
58
71.3

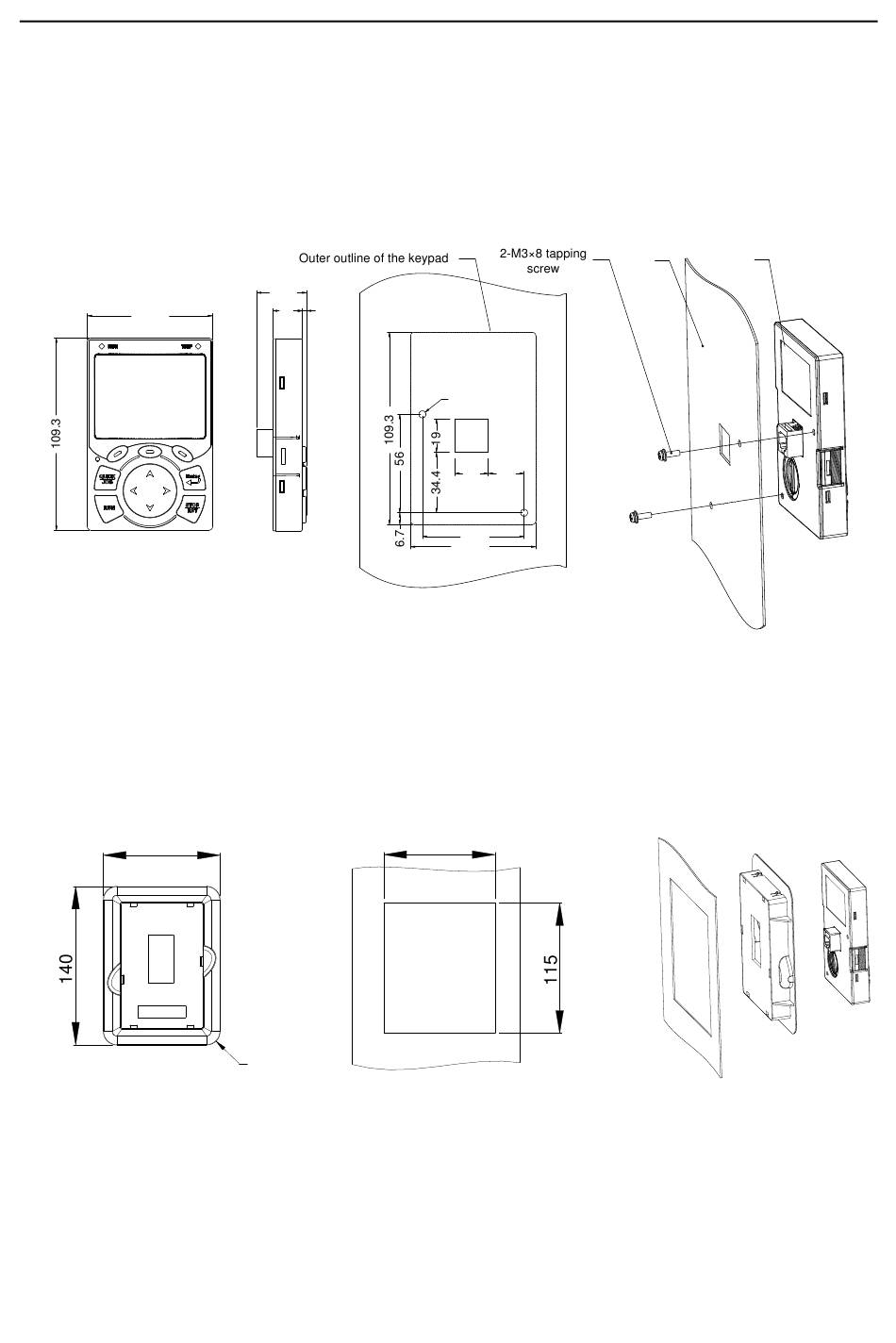

Installation hole dimensions and diagram for key installation without bracket
Fig C.1 Keypad structure diagram
C.2.2 Keypad installation bracket
Note: When installing an external keypad, you can directly use threaded screws or a keypad bracket.
For inverters of 380 V, 1.5 to 75 kW, you need to use optional keypad installation brackets. For those
of 380 V, 90 to 500 kW and 660 V, 22 to 630 kW, you can use optional brackets or use the standard
keypad brackets externally.
103
98
4-R12

Keypad adapter bracket

Installation dimensions
Fig C.2 Keypad installation bracket (optional) for inverters of 380 V, 1.5 to 500 kW and 660 V, 22 to
630 kW
