Goodrive350 series high-performance multi-function inverter
Label
A2-
B2+
B2-
Z2+
Z2-
AO+
AO-
BO+
BO-
ZO+
ZO-

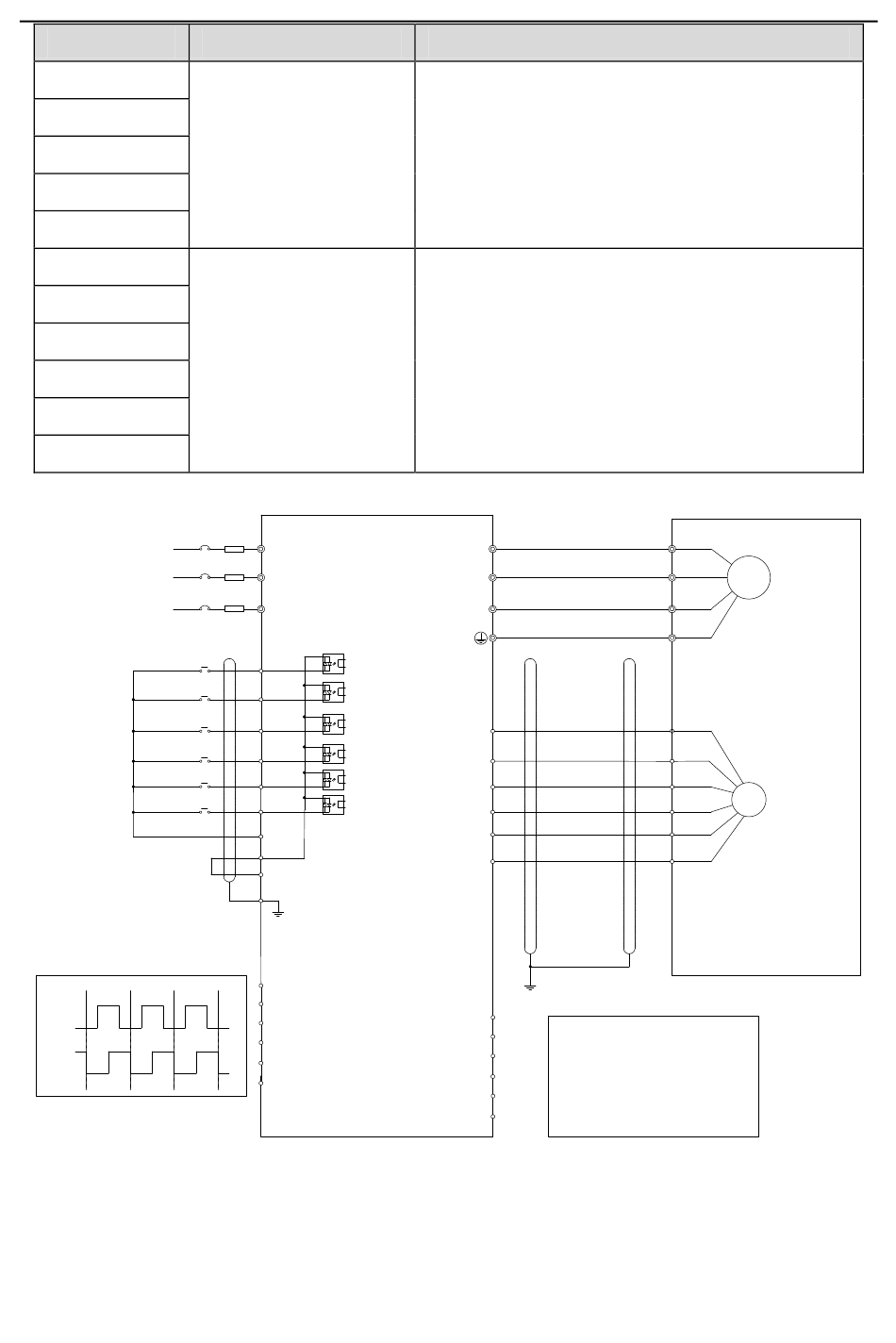

The following figure shows the external wiring of the EC-PG504-00 extension card.
Forward
running
Forward
jogging
Fault reset
pulse A
pulse B
Name
Frequency-divided
output
R
S
T
S1
S2
S3
S4
HDIA
HDIB
COM
PW
+24V
PE
AO+
AO-
BO+
BO-
ZO+
ZO-
Function description
2. Response frequency: 200 kHz
1. Differential output of 5 V
2. Frequency-divided output of resolver simulated
A1, B1, and Z1, which is equal to an incremental
PG card of 1024 pps.
3. Supporting frequency division of 1–255, which
can be set through P20.16 or P24.16
4. Max. output frequency: 200 kHz
U
V
W
SI+
SI-
CO+
CO-
EX+
EX-
A2+
A2-
B2+
B2-
Z2+
Z2-
-286-
Appendix A
U
V
M3~
W
PG
CNC
PLC
Upper computer
