Goodrive350 series high-performance multi-function inverter
4.2.6 Vertical installation
Note: During vertical installation, users must install windshield, otherwise, the inverter will experience
mutual interference, and the heat dissipation effect will be degraded.
Cold
air
Hot
air
Cold
air
Hot
air

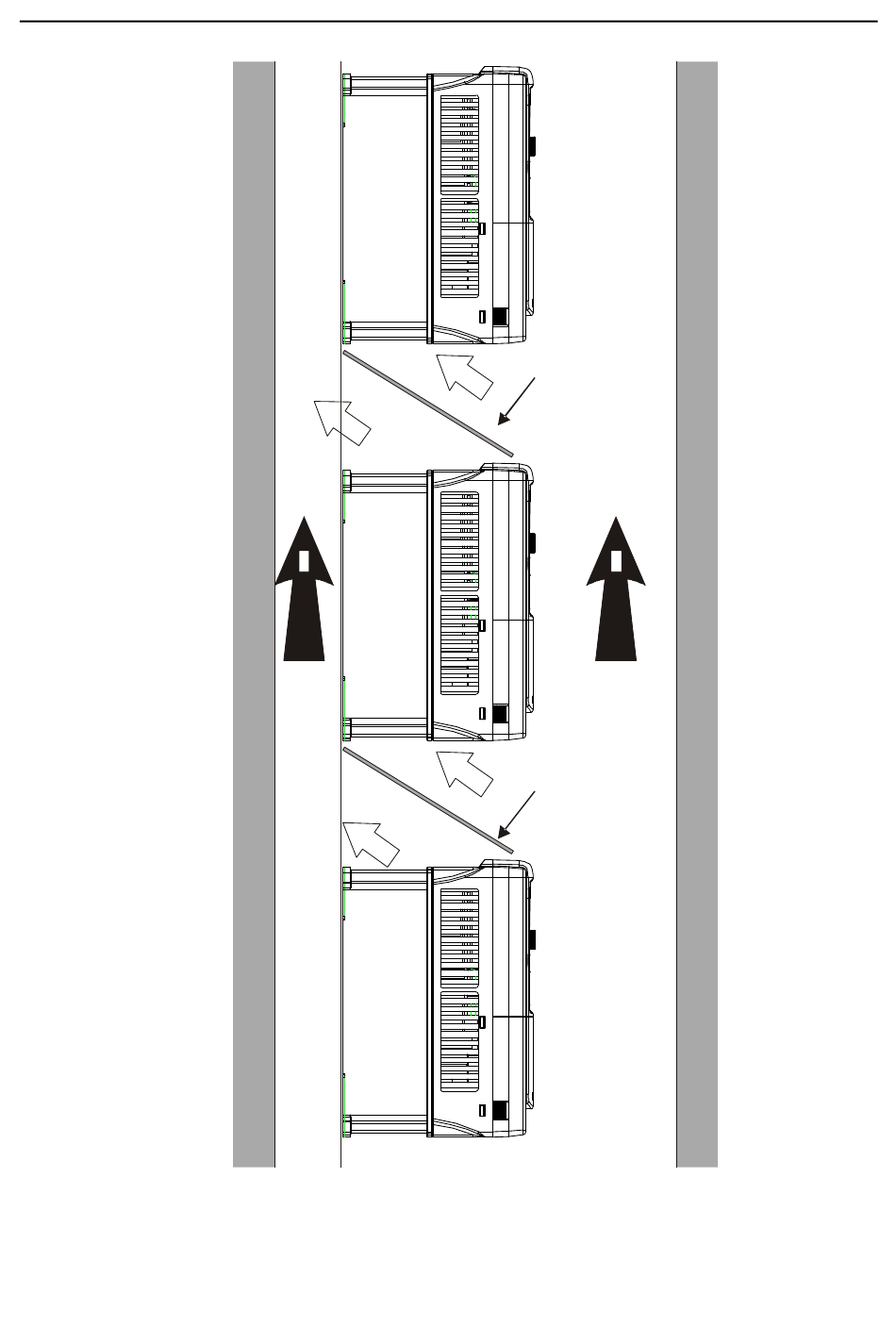

Fig 4.5 Vertical installation
-20-
Windshield
Windshield
Chapter 4
