Automation Direct DL405 User Manual page 84

4–6
F4-04ADS 4-Channel Isolated Analog Input

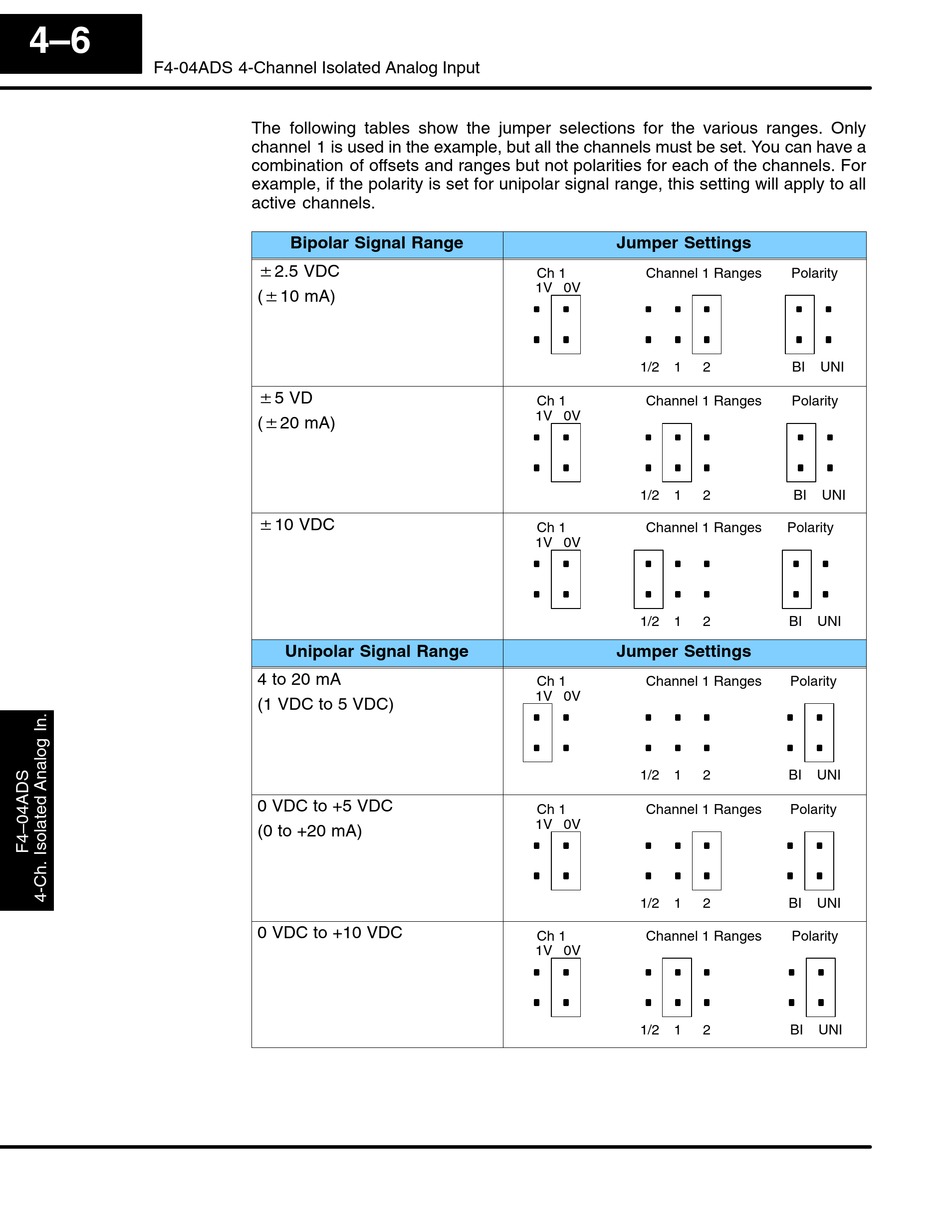

The following tables show the jumper selections for the various ranges. Only
channel 1 is used in the example, but all the channels must be set. You can have a
combination of offsets and ranges but not polarities for each of the channels. For
example, if the polarity is set for unipolar signal range, this setting will apply to all
active channels.
Bipolar Signal Range
$2.5 VDC
($10 mA)
$5 VD
($20 mA)
$10 VDC
Unipolar Signal Range
4 to 20 mA
(1 VDC to 5 VDC)
0 VDC to +5 VDC
(0 to +20 mA)
0 VDC to +10 VDC
Jumper Settings
Ch 1 Channel 1 Ranges
1V 0V
1/2 1 2
Ch 1 Channel 1 Ranges
1V 0V
1/2 1 2
Ch 1 Channel 1 Ranges
1V 0V
1/2 1 2
Jumper Settings
Ch 1 Channel 1 Ranges
1V 0V
1/2 1 2
Ch 1 Channel 1 Ranges
1V 0V
1/2 1 2
Ch 1 Channel 1 Ranges
1V 0V
1/2 1 2
Polarity
BI UNI
Polarity
BI UNI
Polarity
BI UNI
Polarity
BI UNI
Polarity
BI UNI
Polarity
BI UNI
