14–8
F4–04DA–2 Analog Voltage Output
Load
Requirements
Removable
Connector

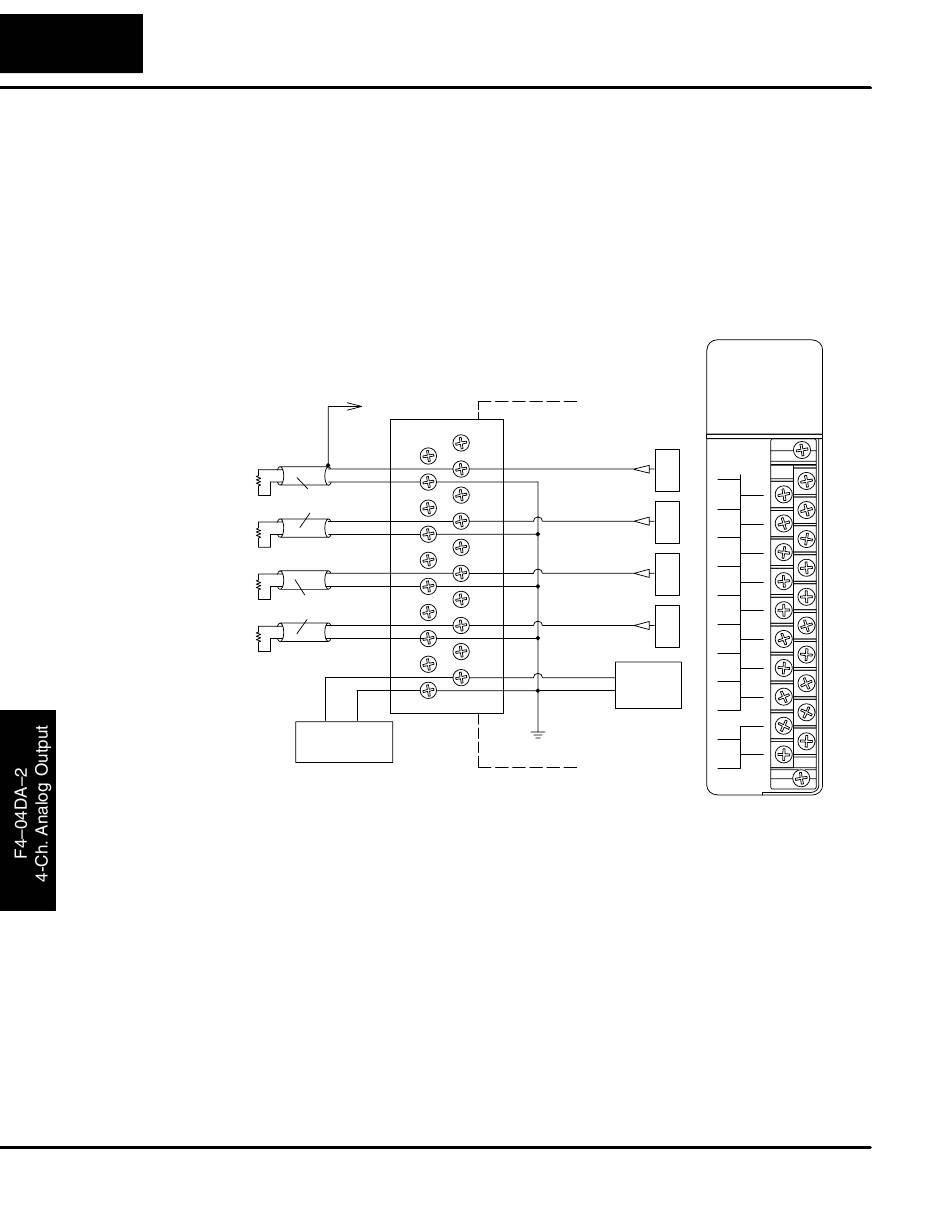

Wiring Diagram

2K ohm min
2K ohm min
2K ohm min
2K ohm min
Each channel can be connected to a load with an impedance of 2k ohms or greater.
Unused outputs should be left unconnected.
The F4–04DA–2 module has a removable connector to make wiring easier. Simply
loosen the retaining screws and gently pull the connector from the module.
NOTE 1: Shields should be connected to the 0V terminal of the module or power supply.
NOTE 2: Unused voltage outputs should remain open (no connections).
See NOTE 1
User Wiring
CH1
Voltage CH1 –V
Output
CH2
CH2 –V
CH3
CH3 –V
Voltage
Output
CH4
CH4 –V
0V
+ –
21.6 – 26.4 VDC
90mA
Internal module circuitry
CH1 +V
volt. sink/source
CH2 +V
volt. sink/source
CH3 +V volt. sink/source
volt. sink/source
CH4 +V
Internal
24V
DC/DC
Converter
ANALOG OUTPUT
F4–04DA–2
0–10VDC
0–5VDC
"
10VDC
D/A "
5VDC
CH1
+V
D/A
CH1
–V
CH2
D/A
+V
CH2
–V
CH3
D/A
+V
CH3
–V
CH4
+V
CH4
–V
24
V
0
V
24 V @ 75 mA
