14–28
F4–04DA–2 Analog Voltage Output
Configuration Cross-Reference, F4–04DA to F4–04DA–2
Step 1:
Select the
Compatibility
Mode
The F4–04DA–2 Analog Output Module can replace the existing F4–04DA Analog
Output Module when all four channels are used as voltage outputs for any of four
ranges: 0 – 5VDC, 0 – 10VDC, $5VDC, and $10VDC. For existing voltage output
installations this section shows how to configure the F4–04DA–2 to directly replace
a F4–04DA as presently configured. The RLL program that communicated with the
F4–04DA needs no modifications to perform the same function with a properly
configured F4–04DA–2.
NOTE: When the F4–04DA–2 is configured for F4–04DA compatibility, the
module's output word bit descriptions and ladder examples in this chapter do not
apply. Please refer to the F4–04DA chapter for this information.
F4–04DA

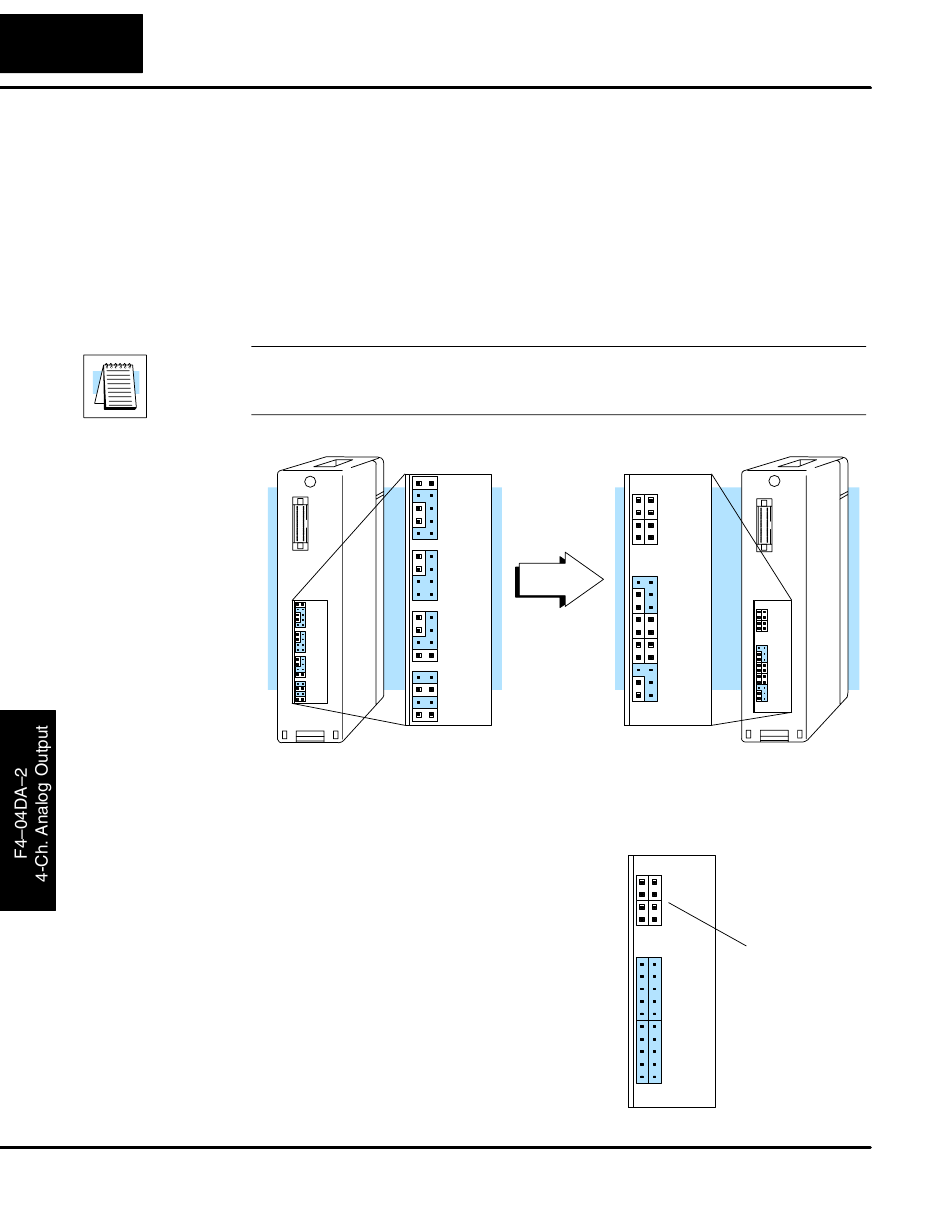

In the following procedure, we will examine the present jumper settings on the
F4–04DA. Just follow the steps to translate that configuration into its equivalent on
the F4–04DA–2 module.
The upper jumper
F4–04DA–2 is the data format jumpers.
They are normally installed individually
and horizontally for each of the four
channels. To select the F4–04DA
compatibility mode, just install all four
jumpers in the vertical orientation as
shown to the right. Installed in this way,
they do not correspond to individual
channels anymore.
You may recall that the F4–04DA has
only one data format (0 to 4095) for all
channels. This data format is in effect
now in the F4–04DA–2's compatibility
mode.
block on the
F4–04DA–2
F4–04DA–2
Install all the
data format
jumpers
vertically for
F4–04DA
compatibility.
