Changes to Chapter 4: F4-04ADS 4-Channel Isolated Analog Input
Page 4-3. Module Specifications; General Specifications
In the table, change the Power Budget Requirement value from "270 mA at 5 VDC (from base)" to "370 mA at 5 VDC (from
base)."

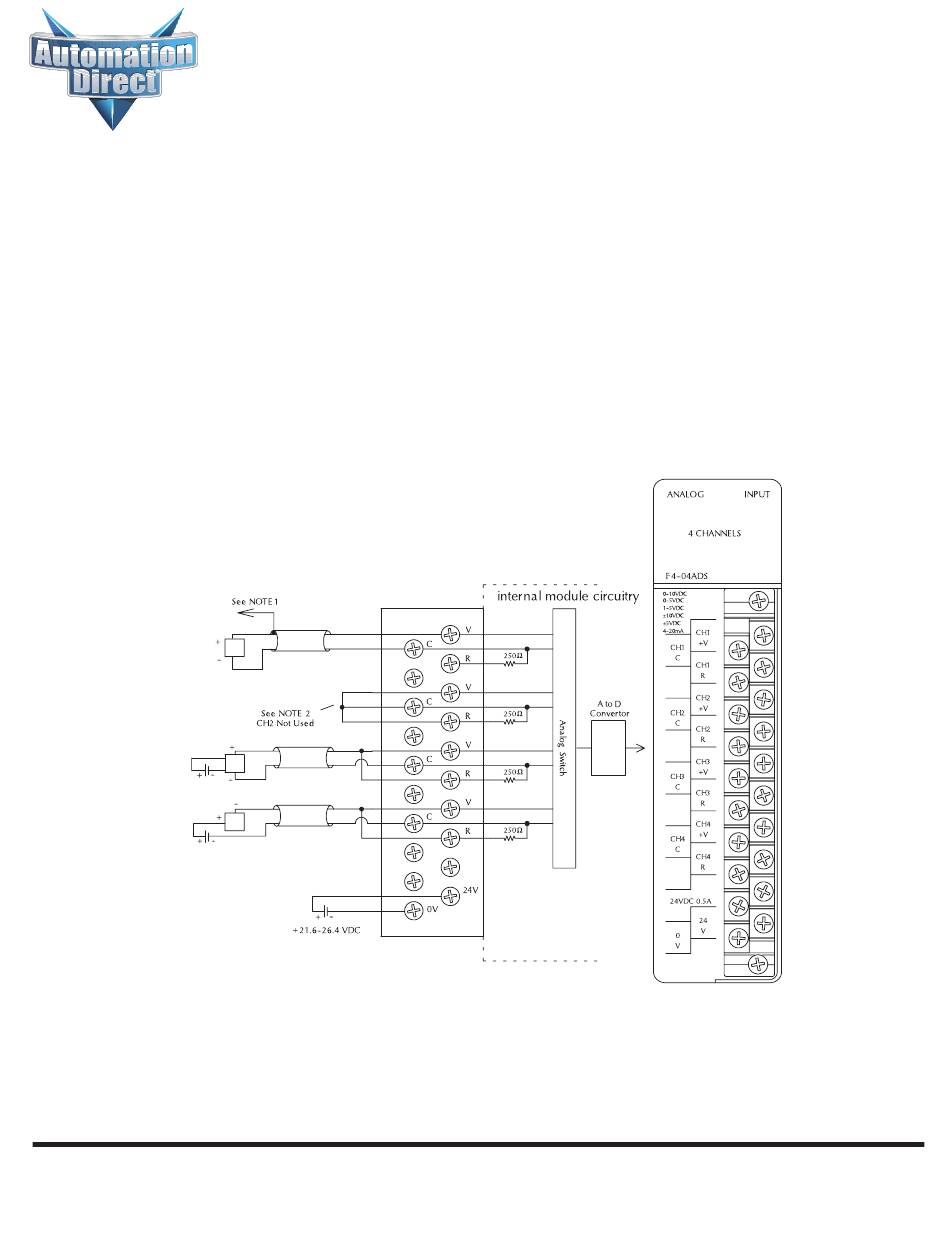

Page 4-8. Wiring Diagram
Replace the wiring diagram with this one. The connections for CH3 and CH4 were incorrect. They did not show that
external power is required. Examples for wiring 2-wire and 4-wire current transmitters was added.
CH1
Voltage Transmitter
CH2
Not used
CH3
4-wire 4-20mA
Transmitter
CH4
2-wire 4-20mA
Transmitter
Errata Sheet
User Supply
